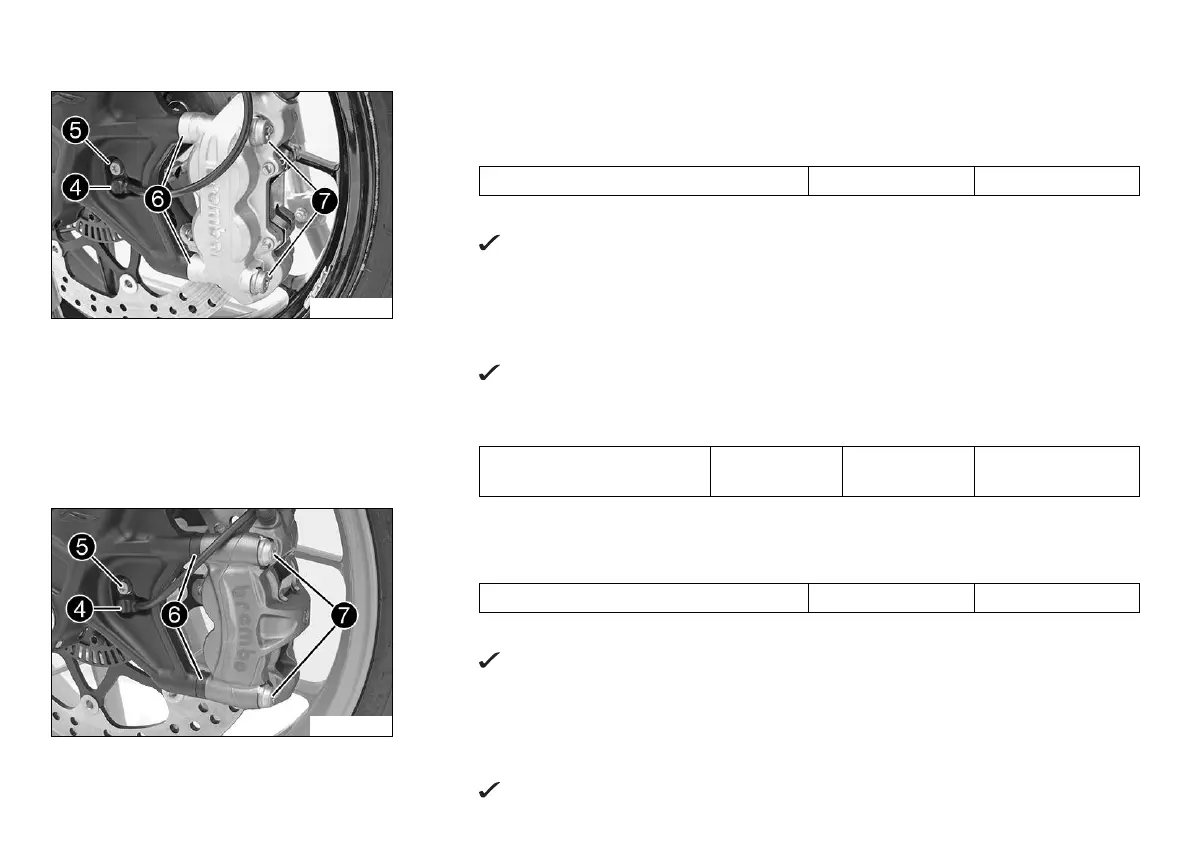

KTM 2016 690 DUKE R - Page 118

14 WHEELS, TIRES 116
K00431-10
(Duke)
–
Position wheel speed sensor

in the drill hole. Mount and tighten screw

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the brake caliper.
The brake linings are correctly positioned.
–
Position spacers

. Mount screws

but do not tighten yet.
– Operate the hand brake lever repeatedly until the brake linings are in contact with
the brake disc and there is a pressure point. Fix the hand brake lever in the acti-
vated position.
The brake caliper straightens.
–
Tighten screws

.
Guideline
Screw, front brake caliper M10x1.25 45 Nm
(33.2 lbf ft)
Loctite
®
243™
K00432-10
(Duke R)
–
Position wheel speed sensor

in the drill hole. Mount and tighten screw

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the brake caliper.
The brake linings are correctly positioned.
–
Position spacers

. Mount screws

but do not tighten yet.
– Operate the hand brake lever repeatedly until the brake linings are in contact with
the brake disc and there is a pressure point. Fix the hand brake lever in the acti-
vated position.
The brake caliper straightens.
