15
ELECTRIC
AL
SYSTEM
128
15.2

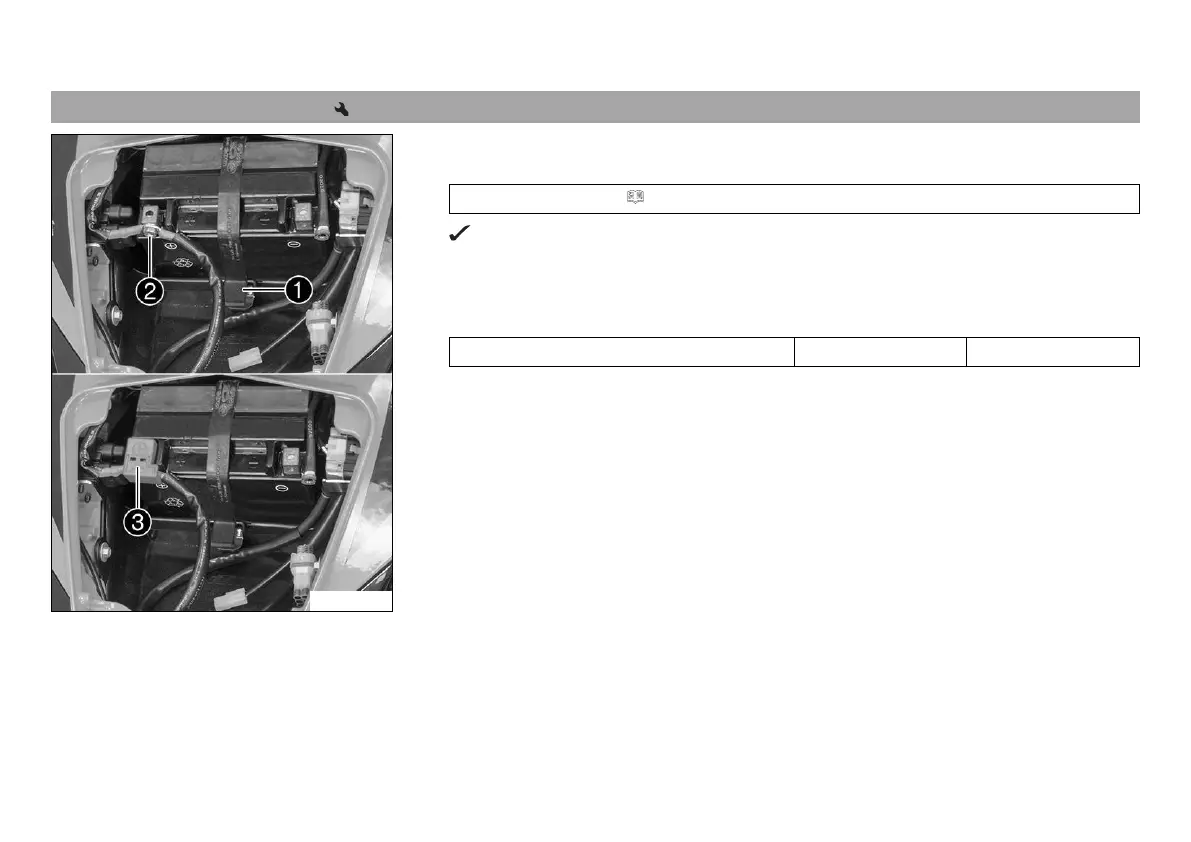

Installing
the
battery
K00447-01
Main
work
–
Position
the
battery
in
the
battery
holder.
Battery
(CBTX9-BS)
(
p.
181)
The
battery
terminals
face
opposite
the
direction
of
travel.
–
Reconnect
rubber
band
.
–
Connect
both
positive
cables
to
the
battery.
Guideline
Screw,
battery
terminal
M6
2
Nm
(1.5
lbf
ft)
–
Mount
positive
terminal
cover
.
129
131
