11 TUNING THE CHASSIS 75
Info
The effect of the high-speed setting can be seen in fast compression of the shock absorber.

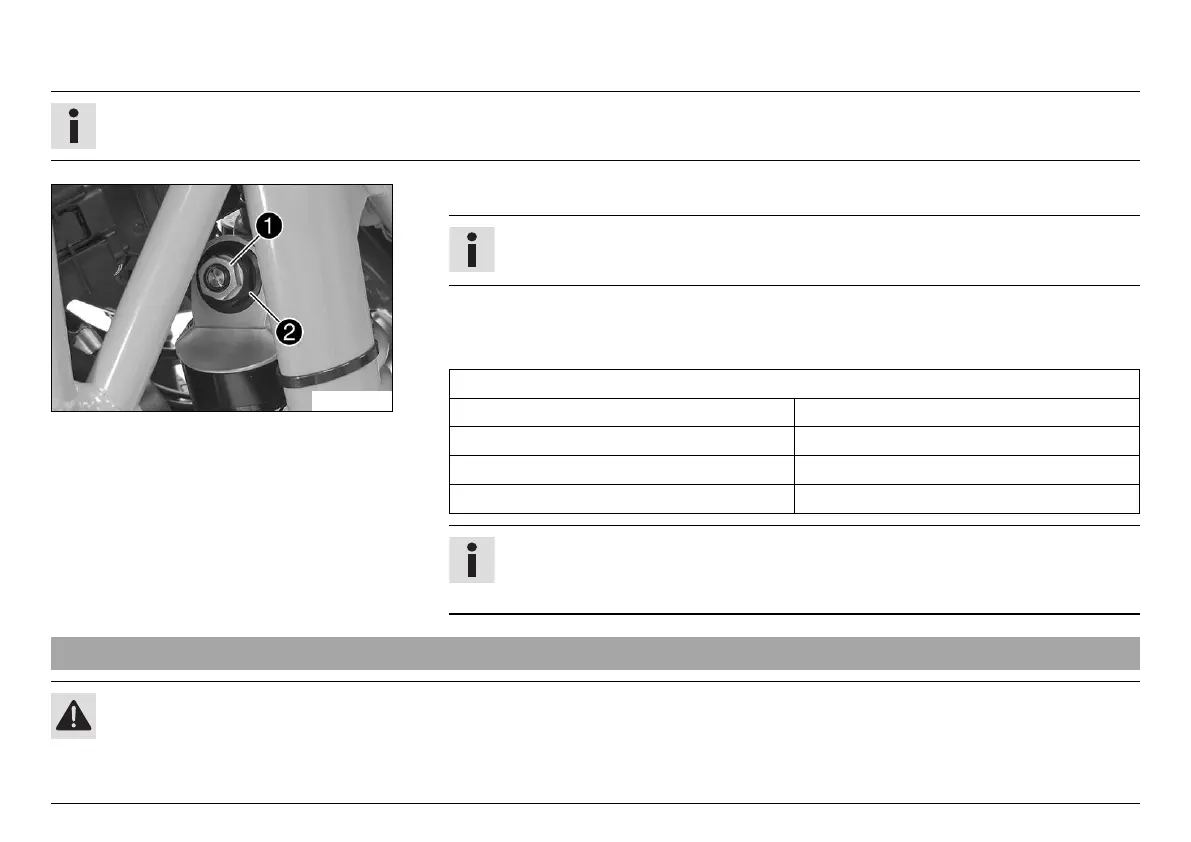

V00050-10
–
Using an open end wrench, turn adjusting screw

clockwise all the way.
Info
Do not loosen fitting

!
– Turn counterclockwise by the number of turns corresponding to the shock absorber
type.
Guideline
Compression damping, high-speed
Comfort 2 turns
Standard 1.5 turns
Sport 1 turn
Full payload 1 turn
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damping
during fast compression.
11.6 Adjusting the low-speed compression damping of the shock absorber (Duke R)
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will
be glad to help.)
