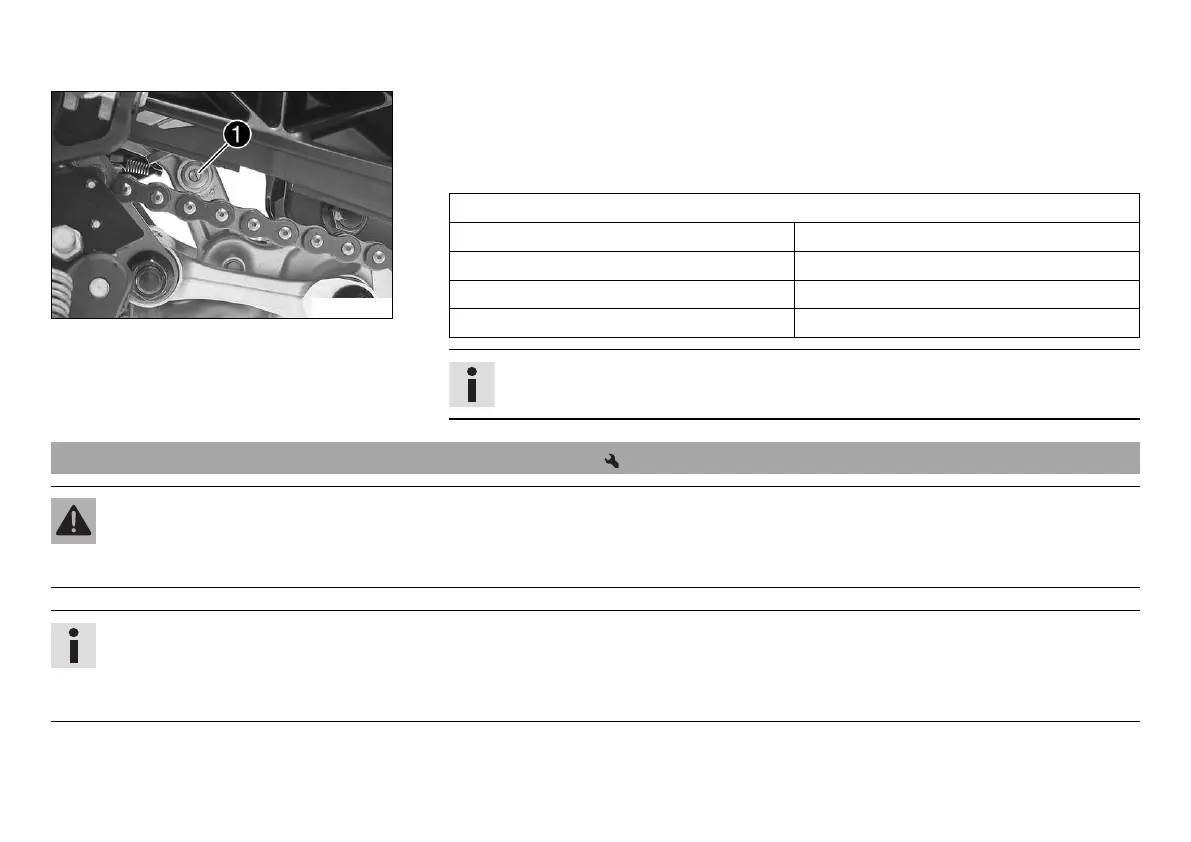

11 TUNING THE CHASSIS 77
V00073-10
Turn adjusting screw
clockwise up to the last perceptible click.
Turn counterclockwise by the number of clicks corresponding to the shock absorber
type.
Guideline
Rebound damping
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
Full payload 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damping.
11.8 Adjusting the spring preload of the shock absorber
Warning
Danger of accidentsModifications to the suspension settings can seriously alter the vehicle's ride behavior.
Following modifications, ride slowly at first to get the feel of the new ride behavior.
Info
The spring preload defines the initial status of the spring operation on the shock absorber.
The best spring preload setting is achieved when it is set for the weight of the rider and that of any baggage and a passenger, thus
ensuring an ideal compromise between maneuverability and stability.
Preparatory work
(Duke R)
Remove footrest bracket.
