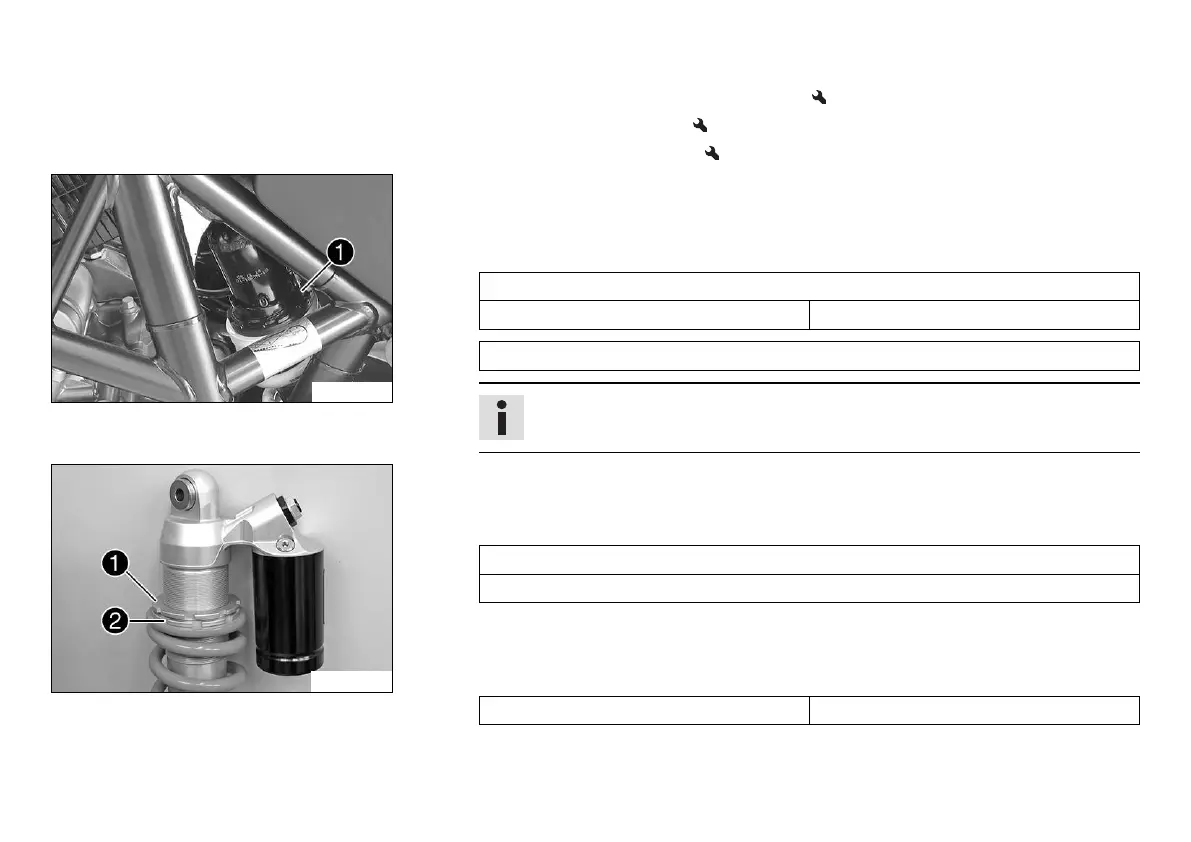

11 TUNING THE CHASSIS 78
Raise the motorcycle with the work stand.
Remove the main silencer.
Remove the shock absorber.
V00044-10
Main work
(Duke)
Adjust the spring preload by turning adjuster
.
Guideline
Spring preload
Standard 4 clicks
Hook wrench (T106S)
Info
The spring preload can be set to 10 different positions.
602558-10
(Duke R)
Measure and note down the spring length in the preloaded state.
Loosen retaining ring
and adjusting ring
with the special tool.
Hook wrench (T106S)
Hook wrench (T157S)
Turn the retaining ring and adjusting ring until the spring is fully relieved of tension.
Adjust the spring preload by turning adjusting ring
.
Guideline
Spring preload 11 mm (0.43 in)
Tighten retaining ring
.
