15
ELECTRIC
AL
SYSTEM
138
15.7

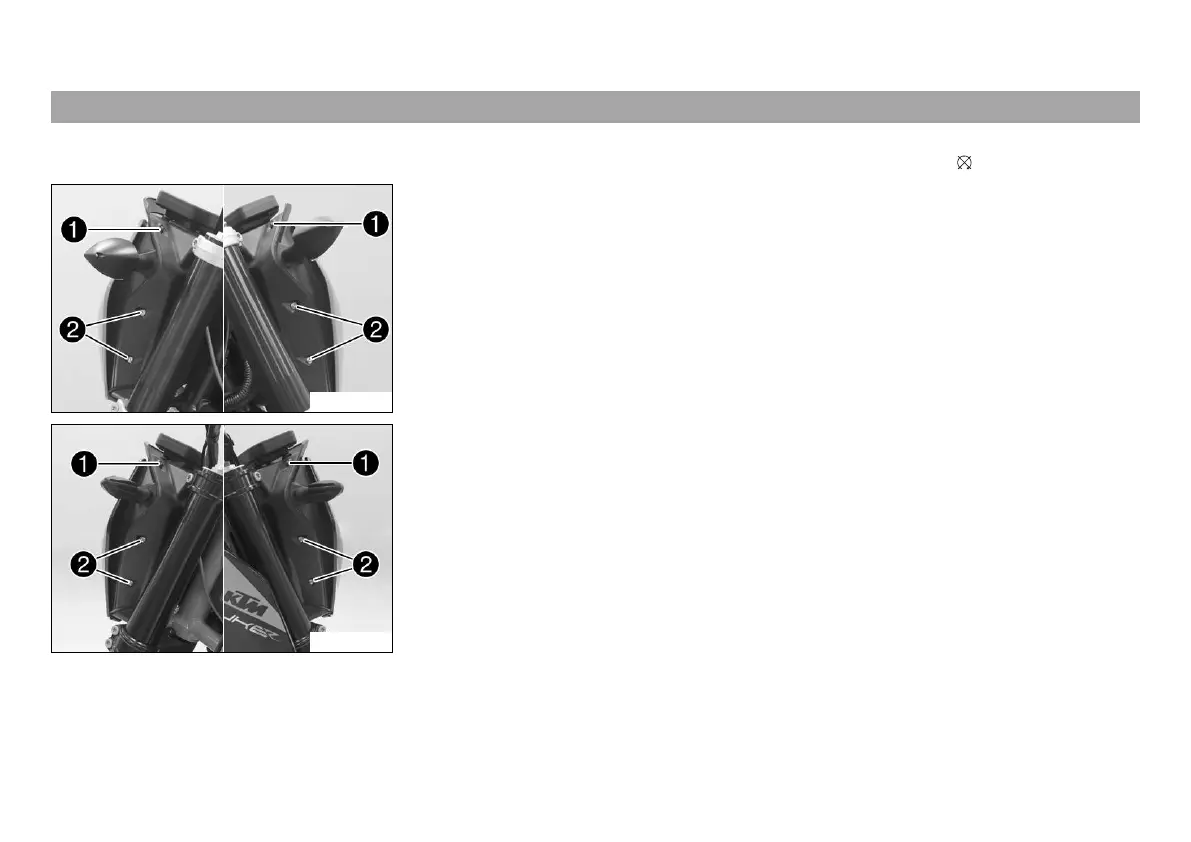

Removing
the
headlight
mask
with
the
headlight
Preparatory
work
–
Switch
off
the
ignition
by
turning
the
ignition
key
to
the
position
.
K00439-10
Main
work
(Duke)
–
Remove
screws
.
–
Remove
screws
.
K00440-10
(Duke
R)
–
Remove
screws
.
–
Remove
screws
.
139
141
