15 ELECTRICAL SYSTEM 136
K00365-10
–

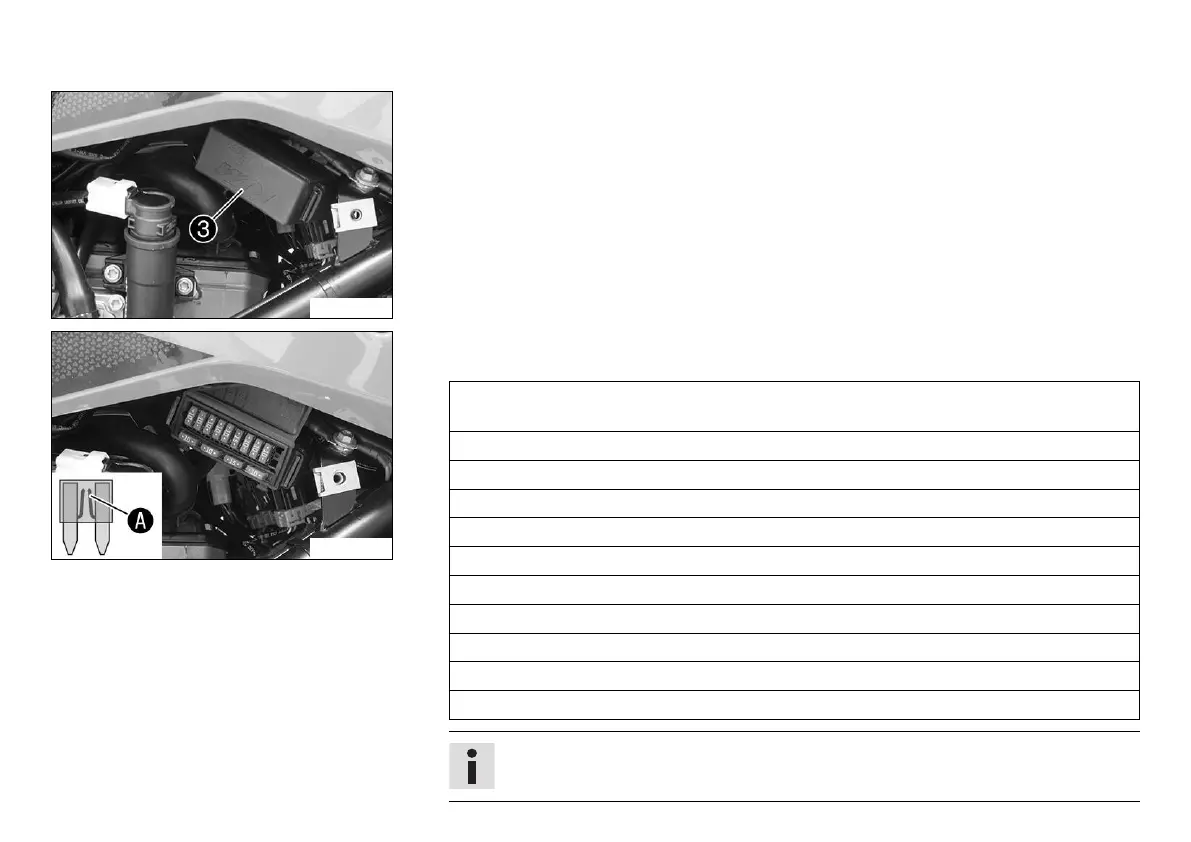

Open fuse box cover
.
K00366-10
– Remove the defective fuse.
Guideline
Fuse 1 - 10 A - ignition, combination instrument, EFI control unit, alarm system
(optional), turn signal
Fuse 2 - 10 A - ignition, EFI control unit
Fuse 3 - 10 A - fuel pump
Fuse 4 - 10 A - radiator fan
Fuse 5 - 10 A - horn, brake light
Fuse 6 - 15 A - high beam, low beam, parking light, tail light, license plate lamp
Fuse 7 - 10 A - for auxiliary equipment (permanent positive)
Fuse 8 - 10 A - for auxiliary equipment (accessories connected with ignition switch)
Fuse 9 - 10 A - ABS
Fuse 10 - not assigned
Fuse SPARE - 10 A/15 A - spare fuses
Info
A defective fuse is indicated by a burned-out fuse wire
.
