14 WHEELS, TIRES 120

H00937-11

– Check the wheel bearing for damage and wear.

» If the wheel bearing is damaged or worn:

– Change the rear wheel bearing.

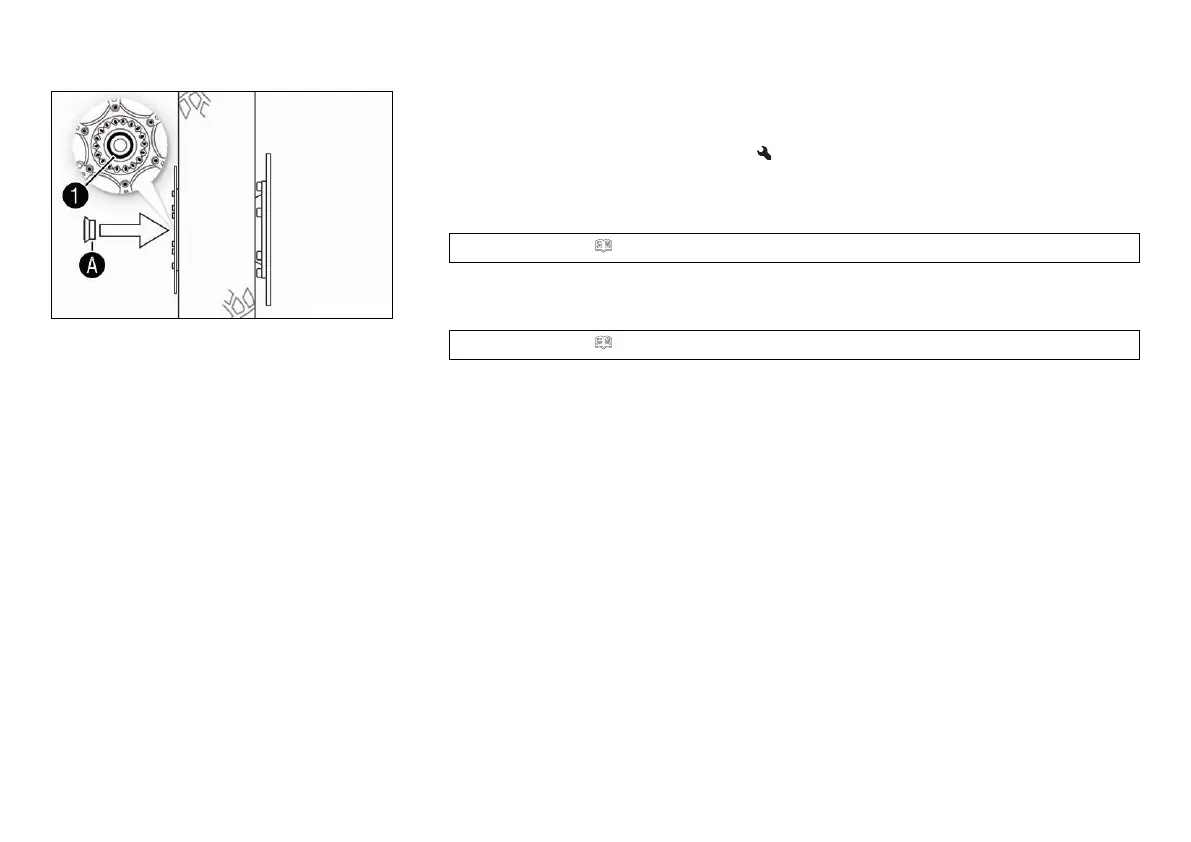

– Remove spacer.

–

Clean and grease shaft seal ring



and contact surface



of the spacer.

Long-life grease ( p. 193)

– Insert the spacer.

– Clean and grease the thread of the wheel spindle and nut.

Long-life grease ( p. 193)

– Clean the mating surfaces of the brake caliper support and swingarm.

Default Chapter5
- Table of Contents5
1 Means of Representation9
- Symbols Used9
- Formats Used10
2 Safety Advice11
- Use Definition - Intended Use11
- Degrees of Risk and Symbols12
- Tampering Warning12
- Safe Operation13
- Protective Clothing14
- Work Rules14
- Environment14
- Owner's Manual15
3 Important Notes16
- Manufacturer and Implied Warranty16
- Operating and Auxiliary Substances16
- Spare Parts, Accessories16
- Service17
- Figures17
- Customer Service17
4 View of Vehicle18
- View of Vehicle, Front Left (Example)18
- View of Vehicle, Rear Right (Example)20
5 Serial Numbers22
- Chassis Number22
- Type Label22
- Key Number23
- Engine Number24
- Fork Part Number24
- Shock Absorber Article Number25
6 Controls26
- Clutch Lever26
- Hand Brake Lever26
- Throttle Grip27
- Switches on the Left Side of the Handlebar27
- Combination Switch27
- Light Switch28
- Menu Switch29
- Turn Signal Switch29
- Horn Button30
- Switches on the Right Side of the Handlebar30
- Emergency off Switch30
- Electric Starter Button31
- Ignition/Steering Lock31
- Opening the Filler Cap32
- Closing the Filler Cap33
- Seat Lock33
- Tool Set34
- Handrails34
- Passenger Footrest35
- Shift Lever35
- Foot Brake Lever36
- Side Stand37
7 Combination Instrument38
- Overview38
- Indicator Lamps39
- Speed40
- Time41
- Temperature41
- Gear Display42
- Fuel Tank Capacity42
- Coolant Temperature Indicator43
- Favorites43
- Trip 144
- Trip 244
- General Info45
- Set Favorites45
- Settings46
- Warning46
- Tc/Abs47
- Mtc/Abs48
- Language49
- Distance49
- Temp50
- Pressure50
- Volume51
- Set the Time and Date51
- Shift Light52
- Extra Functions53
- Drive Mode (Optional)53
8 Preparing for Use54
- Advice on First Use54
- Running in the Engine55
- Loading the Vehicle56
9 Riding Instructions58
- Performing Checks and Vehicle Care When Preparing for Use58
- Starting59
- Starting off60
- Shifting, Riding60
- Engine Braking Control (MSR)64
- Applying the Brakes65
- Stopping, Parking66
- Transport68
- Refueling69
10 Service Schedule71
- Additional Information71
- Required Work71
- Recommended Work73
11 Tuning the Chassis74
- Fork/Shock Absorber (Duke R)74
- Adjusting the Compression Damping of the Fork (Duke R)74
- Adjusting the Rebound Damping of the Fork (Duke R)75
- Compression Damping of the Shock Absorber (Duke R)76
- Adjusting the High-Speed Compression Damping of the Shock Absorber (Duke R)76
- Adjusting the Low-Speed Compression Damping of the Shock Absorber (Duke R)77
- Adjusting the Rebound Damping of the Shock Absorber (Duke R)78
- Adjusting the Spring Preload of the Shock Absorber79
- Adjusting the Footrests81
- Adjusting Foot Brake Lever Stub (Duke R)84
12 Service Work on the Chassis85
- Raising the Motorcycle with the Rear Lifting Gear85
- Removing the Rear of the Motorcycle from the Lifting Gear85
- Lifting the Motorcycle with the Front Lifting Gear86
- Taking the Motorcycle from the Front Lifting Gear87
- Removing the Passenger Seat88
- Mounting the Passenger Seat88
- Removing the Passenger Seat Cover (Duke R)89
- Mounting the Passenger Seat Cover (Duke R)89
- Checking the Chain for Dirt90
- Cleaning the Chain90
- Checking the Chain Tension91
- Adjusting the Chain Tension93
- Checking the Chain, Rear Sprocket, and Engine Sprocket95
- Adjusting the Basic Position of the Clutch Lever97
- Checking/Correcting the Fluid Level of the Hydraulic Clutch98
13 Brake System100
- Antilock Braking System (ABS)100
- Adjusting the Basic Position of the Hand Brake Lever102
- Checking the Brake Discs102
- Checking the Brake Fluid Level of the Front Brake103
- Adding Front Brake Fluid105
- Checking the Front Brake Linings107
- Checking the Free Travel of Foot Brake Lever108
- Adjusting the Basic Position of the Foot Brake Lever109
- Checking Rear Brake Fluid Level111
- Adding Rear Brake Fluid112
- Checking the Rear Brake Linings114
14 Wheels, Tires115
- Removing the Front Wheel115
- Installing the Front Wheel116
- Removing the Rear Wheel119
- Installing the Rear Wheel121
- Checking the Rear Hub Rubber Dampers124
- Checking the Tire Condition125
- Checking the Tire Pressure127
15 Electrical System128
- Removing the Battery128
- Installing the Battery130
- Recharging the Battery131
- Changing the Main Fuse134
- Changing the ABS Fuses136
- Changing the Fuses of Individual Power Consumers137
- Removing the Headlight Mask with the Headlight140
- Installing the Headlight Mask with the Headlight141
- Changing the Headlight Bulb143
- Changing the Parking Light Bulb146
- Changing the Turn Signal Bulb (Duke)147
- Checking the Headlight Setting148
- Adjusting the Headlight Range148
- Diagnostics Connector149
16 Cooling System150
- Checking the Antifreeze and Coolant Level150
- Checking the Coolant Level in the Compensating Tank152
- Draining the Coolant154
- Filling/Bleeding the Cooling System155
17 Tuning the Engine157
- Checking the Basic Position of the Shift Lever157
- Adjusting the Basic Position of the Shift Lever157
- Drive Mode (Optional)159
- Motorcycle Traction Control (Optional) (MTC)160
18 Service Work on the Engine161
- Checking the Engine Oil Level161
- Changing the Engine Oil and Oil Filter, Cleaning the Oil Screens161
- Adding Engine Oil166
19 Cleaning, Care168
- Cleaning the Motorcycle168
- Checks and Maintenance Steps for Winter Operation170
20 Storage171
- Preparing for Use after Storage172
21 Troubleshooting173
22 Technical Data176
- Engine176
- Engine Tightening Torques177
- Capacities181
- Engine Oil181
- Coolant181
- Fuel181
- Chassis182
- Electrical System183
- Tires184
- Fork184
- Duke184
- Duke R185
- Shock Absorber186
- Duke186
- Duke R186
- Chassis Tightening Torques187
23 Substances192
24 Auxiliary Substances195
25 Standards197
26 Index of Special Terms198
27 List of Abbreviations199
28 List of Symbols200
- Red Symbols200
- Yellow and Orange Symbols200
- Green and Blue Symbols200
- Index202
