11 TUNING THE CHASSIS 80

V00045-10

–

Remove screws



.

V00051-01

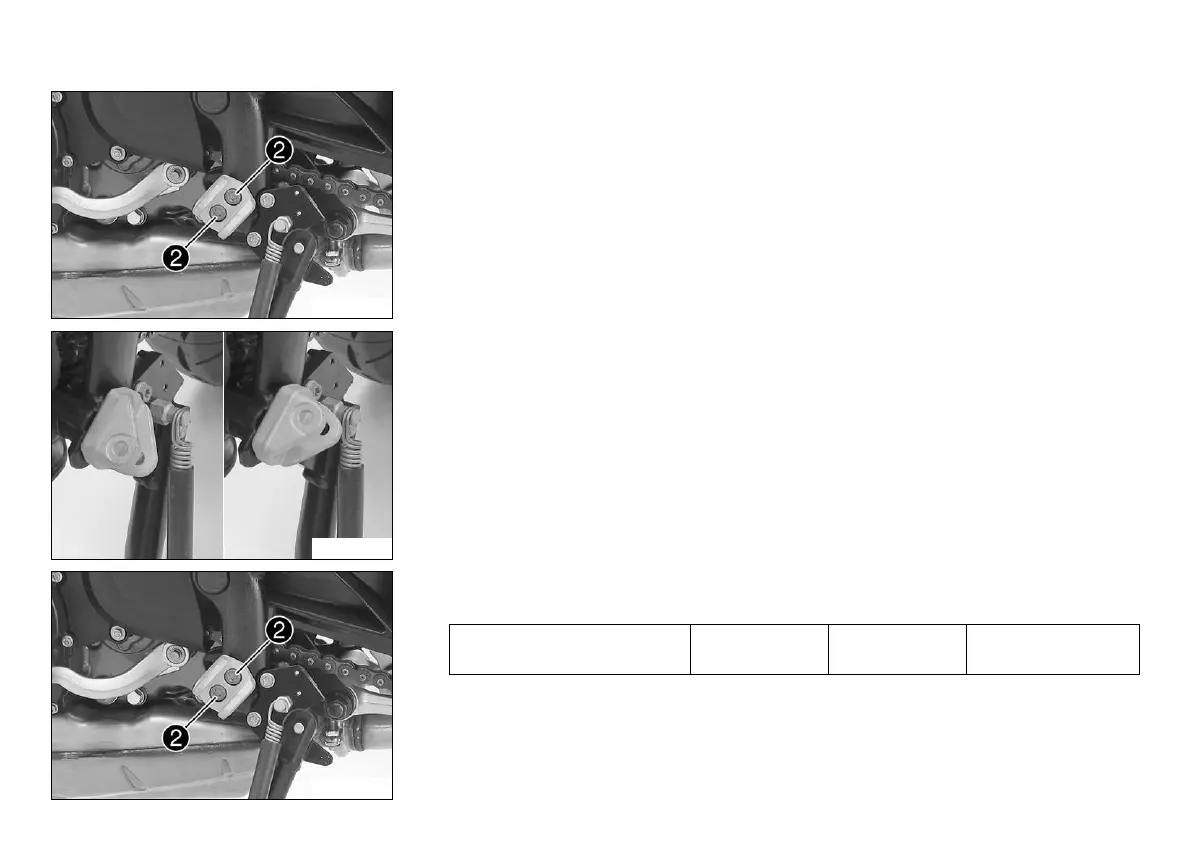

– Adjust the footrest bracket to the desired position.

V00045-10

–

Mount and tighten screws



.

Guideline

Screw, front footrest bracket M8 25 Nm

(18.4 lbf ft)

Loctite

®

243™
