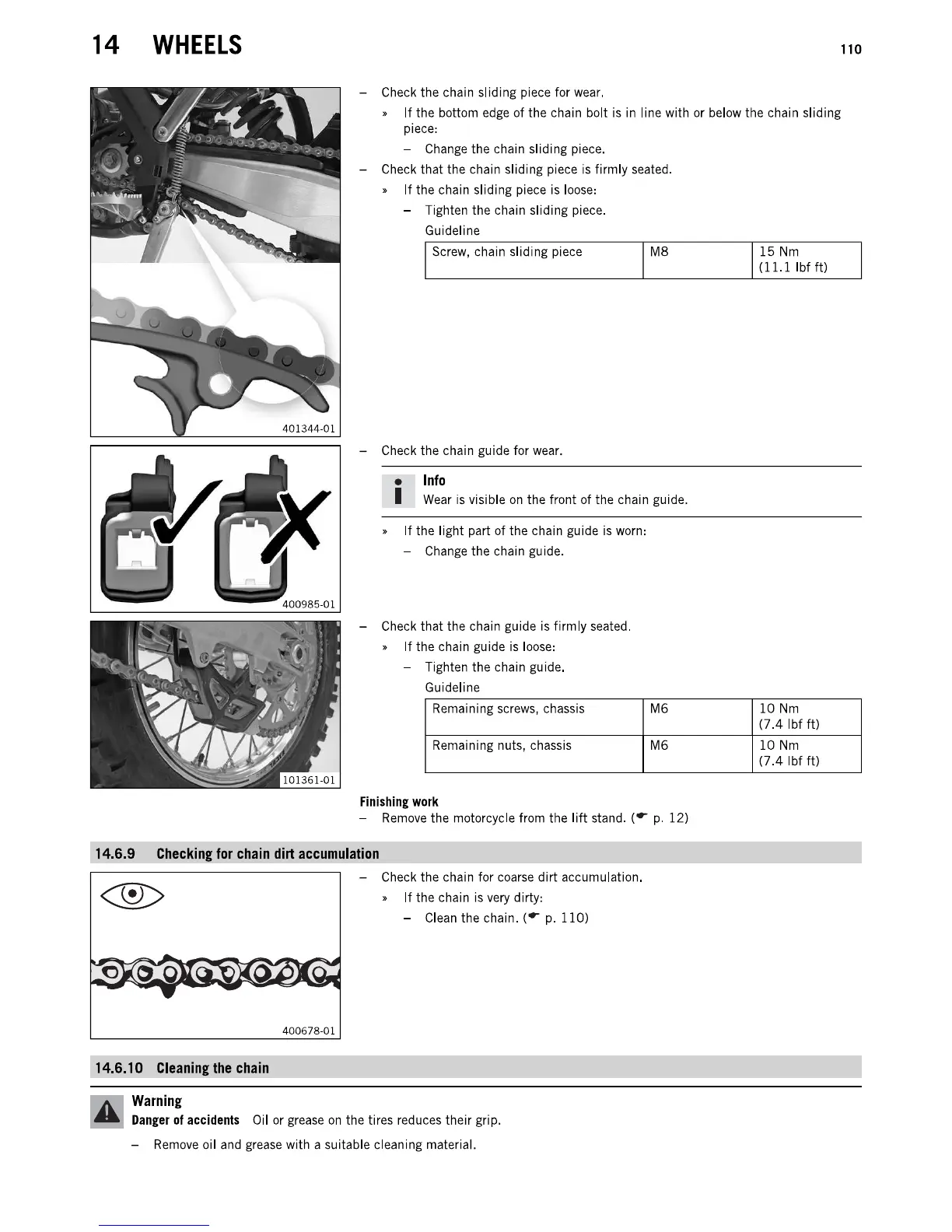

14 WHEELS 110
- Check the chain sliding piece for wear.
•
If the bottom edge of the chain bolt is in line with or below the chain sliding
piece:
- Change the chain sliding piece.
- Check that the chain sliding piece
is firmly seated.
•
If the chain sliding piece is loose:
- Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece
- Check the chain guide for wear.
• Info
M8
I Wear is visible on the front of the chain guide.
•
If the light part of the chain guide is worn:
- Change the chain guide.
- Check that the chain guide
is firmly seated.
•
If the chain guide is loose:
- Tighten the chain guide.
Guideline
Remaining screws, chassis
Remaining nuts, chassis
Finishing work
M6
M6
- Remove the motorcycle from the lilt stand. ( .. p. 12)
14.6.9 Checkinillor chain dirt accumulation
- Check the chain for coarse dirt accumulation.
•
If the chain is very dirty:
- Clean the chain. (
.. p. 110)
-- .
-
-
400678-01
14.6.10 Cleaning the chain
Warning
Danger 01 accidents Oil or grease on the tires reduces their grip.
- Remove oil and grease with a suitable cleaning material.
15 Nm
(1Ll Ibf It)
10 Nm
(7.4 Ibf It)
10 Nm
(7.4 Ibf It)
