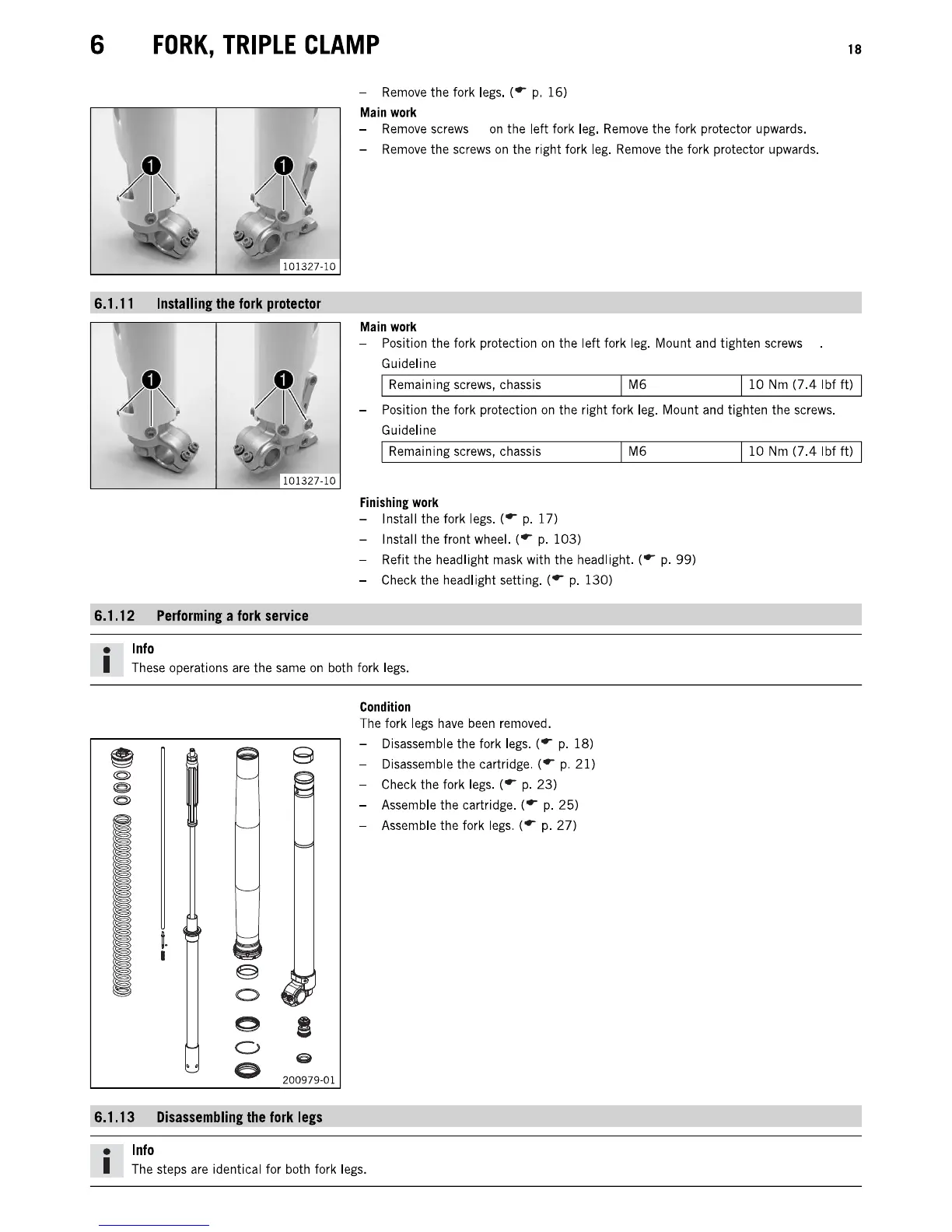

6 FORK, TRIPLE CLAMP
6.1.11 InSlalilna: the fork protector
- Remove the fork legs. ( .. p. 16)
Main work
- Remove screws on the left fork leg. Remove the fork protector upwards.
-
Remove the screws on the right fork leg. Remove the fork protector upwards.
Main work
- Position the fork protection on the left fork leg. Mount and tighten screws
Guideline
18
I Remaining screws, chassis
110 Nm (7.4 Ibf It) 1
- Position the fork protection on the right fork leg. Mount and tighten the screws.
Guideline
I Remaining screws, chassis
110 Nm (7.4 Ibf It) 1
Finishinl work
- Install the fork legs. ( .. p. 17)
- Install the front wheel. (
.. p. 103)
- Refit the headlight mask with the headlight. ( .. p. 99)
- Check the headlight setting. ( .. p. 130)
6.1.12 Performina: a fork service
• Info
I These operations are the same on both fork legs.
Condition
The fork legs have been removed.
- Disassemble the fork legs. (
.. p. 18)
- Disassemble the cartridge. (
.. p. 21)
- Check the fork legs. ( .. p. 23)
- Assemble the cartridge. ( .. p. 25)
- Assemble the fork legs. ( .. p. 27)
I.
I
§
<0
0
!
0
e
e
200979-01
6.1.13 Dlsassembllna: the fork lea;s
• Info
I The steps are identical for both fork legs.
