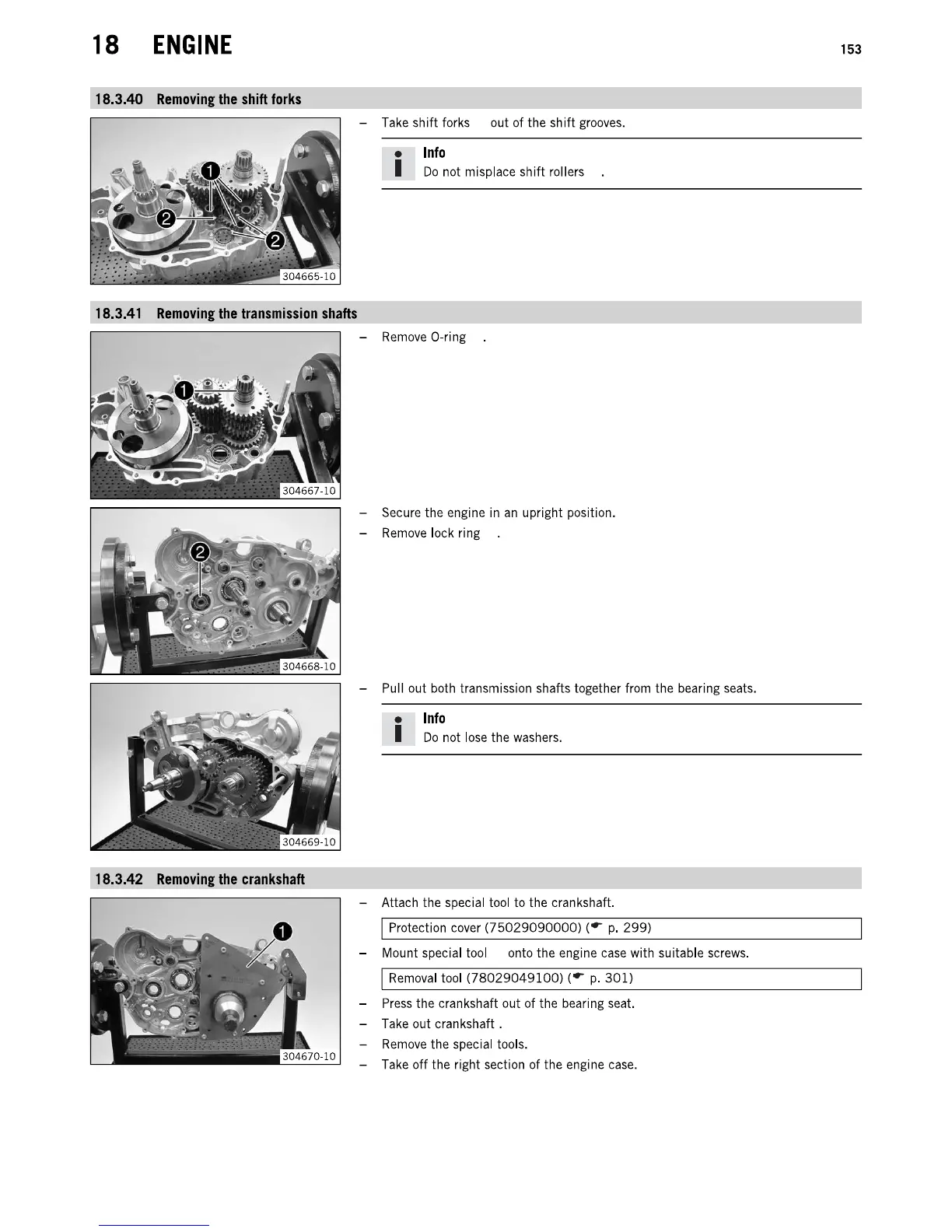

18 ENGINE 153
18.3.40 Relloving the shi1llorks
- Take shift forks out of the shift grooves.
• Info
I Do not misplace shift rollers
18.3.41 Relloving the transmission shafts
- Remove O·ri ng
- Secure the engine in an upright position.
-
Remove lock ring
- Pull out both transmission shafts together from the bearing seats.
• Info
I Do not lose the washers.
18.3.42 Relloving the crankshaft
- Attach the special tool to the crankshaft.
I Protection cover (75029090000) ( .. p. 299)
- Mount special tool onto the engine case with suitable screws.
I Removal tool (78029049100) ( .. p. 301)
- Press the crankshaft out of the bearing seat.
- Take out crankshaft .
-
Remove the special tools.
- Take
off the right section of the engine case.
