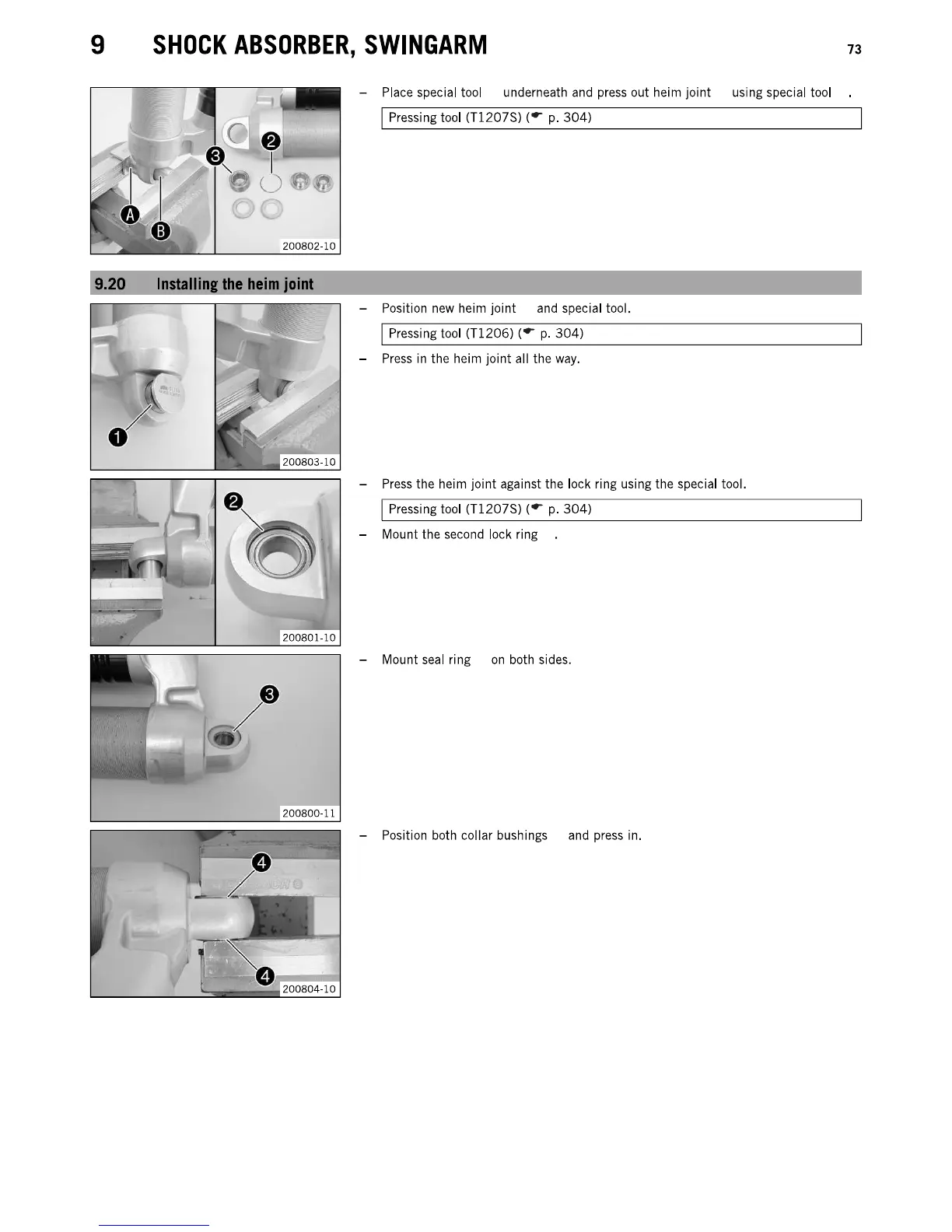

SHOCK

ABSORBER,

SWINGARM

Place

special tool underneath

and

press

out heim joint using special tool

Pressing

tool

(Tl2075)

(

304)

Installlnilhe

helm

Joint

- Position

new

heim joint

and

special tool.

Pressing

tool

(Tl206)

(

304)

Press

the heim joint all the

way.

Press

the heim joint against the lock ring using the special tool.

Pressing

tool

(Tl2075)

(

304)

- Mount the

second

lock ring .

- Mount

seal

ring

both

sides.

- Position

both

collar bushings

and

press

in.
