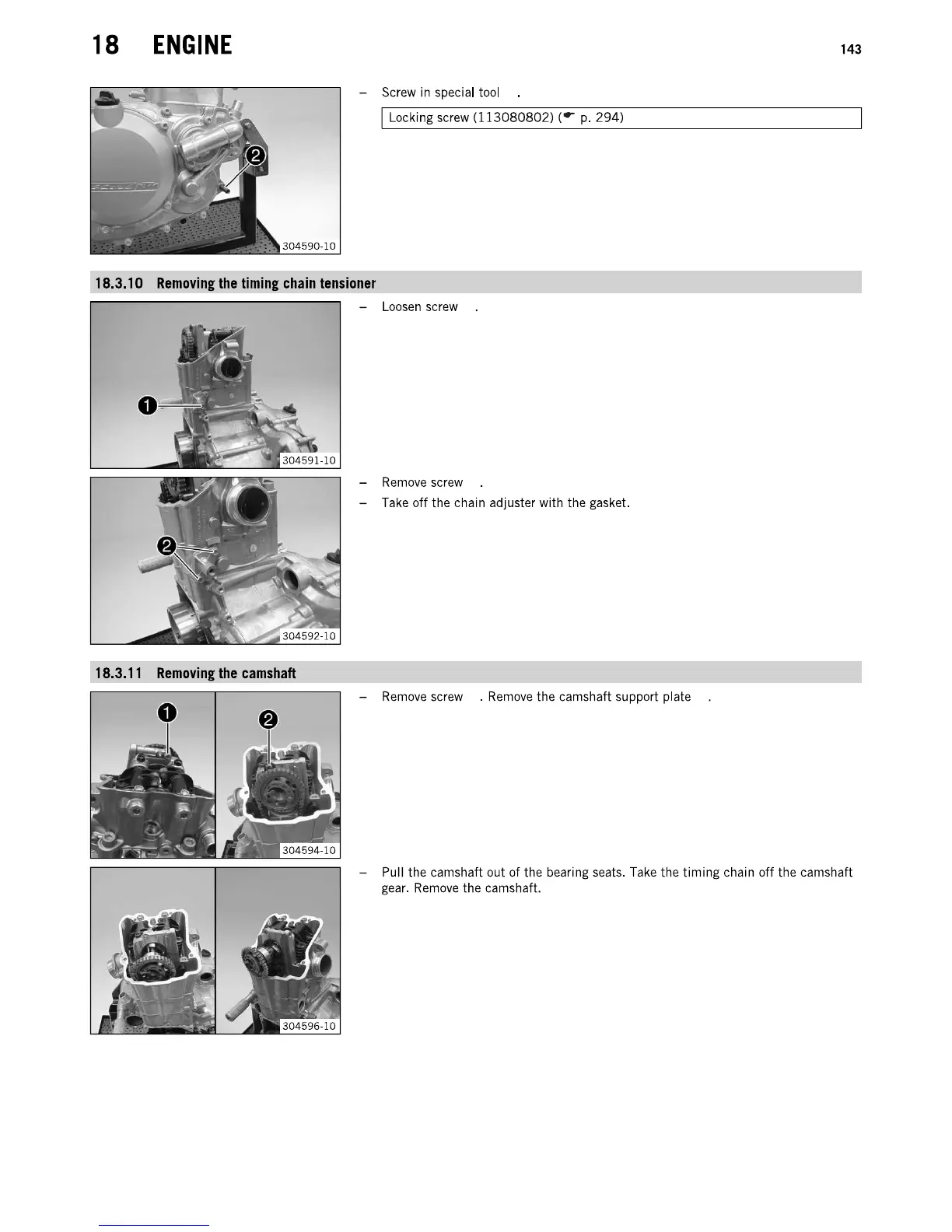

18

ENGINE

143

-

Screw

in

special

tool

I

Locking

screw

(113080802) (

--

p.

294)

18.3.10

Rellovlng

the

timing

chain

tenslonel

18.3.11

Relloving

the

camshaft

-

Loosen

screw

-

Remove

screw

.

-

Take

off

the

chain

adjuster with

the

gasket.

-

Remove

screw

.

Remove

the

camshaft

support

plate

-

Pull

the

camshaft

out

of

the

bearing

seats.

Take

the

timing

chain

off the

camshaft

gear.

Remove

the

camshaft.
