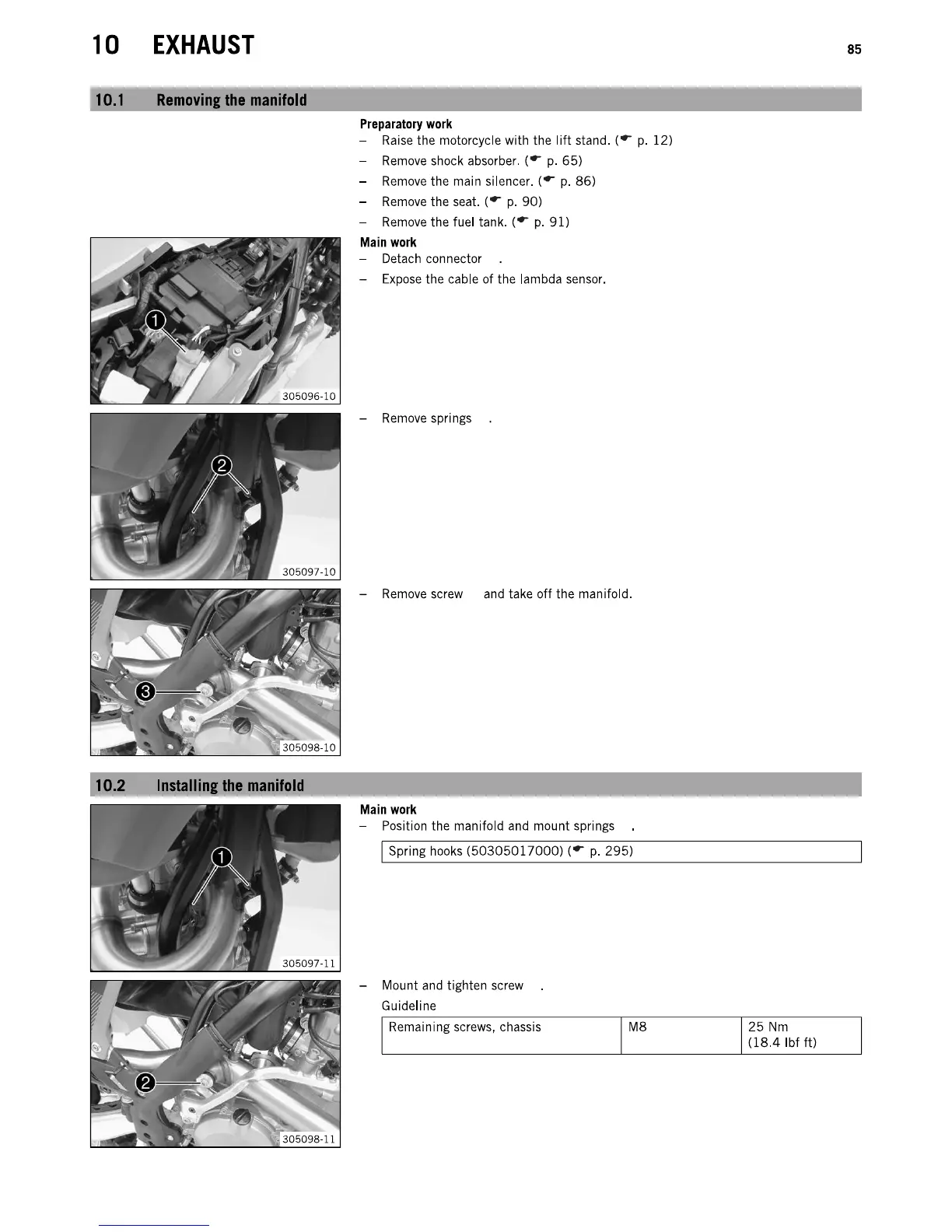

10 EXHAUST
10.1 RamoYi!.lllha manifold
Preparatory work
- Raise the motorcycle with the lift stand. ( or- p. 12)
- Remove shock absorber. ( or- p. 65)
- Remove the main silencer. ( or- p. 86)
- Remove the seat. ( or- p. 90)
- Remove the fuel tank. ( or- p. 91)
Main work
- Detach connector .
- Expose the cable of the lambda sensor.
- Remove spri
ngs
- Remove screw and take off the manifold.
Main work
- Position the manifold and mount springs
I Spring hooks (50305017000) ( or- p. 295)
- Mount and tighten screw .
Guideline
Remaining screws, chassis
M8 25 Nm
(18.4 Ibf ft)
85
