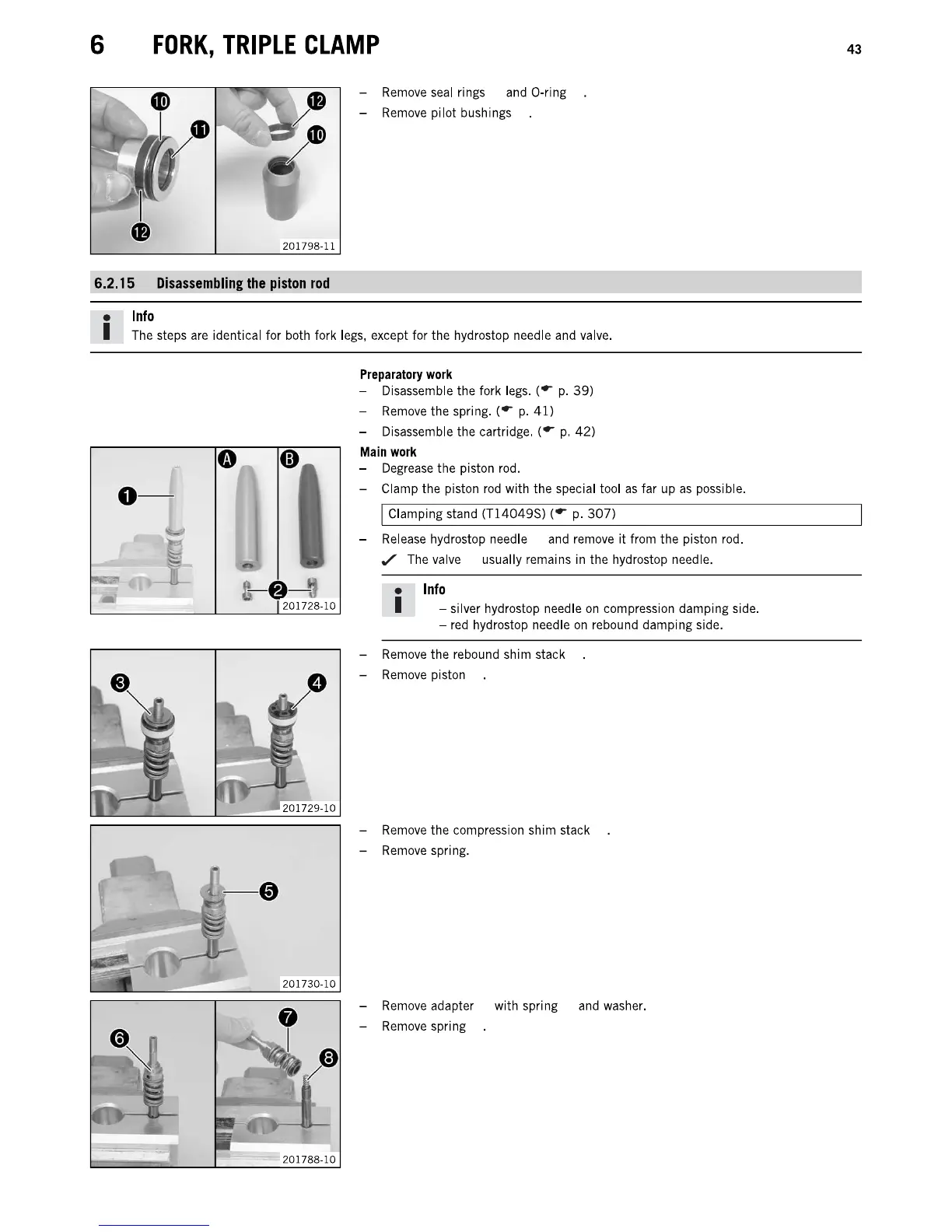

6
FORK,
TRIPLE
CLAMP
- Remove seal rings and O-ring
- Remove pilot bushings
6.2.15
Disassembling
the
piston
rod
•
Info
I The steps are identical for both fork legs, except for the hydrostop needle and valve,
&- 8 -
201726-10
20173().10
o
I
201786-10
Preparatory
work
- Disassemble the fork legs. (
..
p.
39)
- Remove the spring. (
..
p.
41)
- Disassemble the cartridge. (
..
p.
42)
Main
work
- Degrease the piston rod.
- Clamp the piston
rod
with the special tool
as
far up
as
possible.
I Clamping stand
(Tl4D49S)
(
..
p.
307)
- Release hydrostop needle and remove
it
from the piston rod.
,/
The valve usually remains in the hydrostop needle.
•
Info
I -silver hydrostop needle
on
compression damping side.
-
red
hydrostop needle on rebound damping side.
- Remove the rebound shim stack
- Remove piston
- Remove the compression shim stack
- Remove spri
ng.
- Remove adapter with spring and washer.
- Remove spri
ng
43
