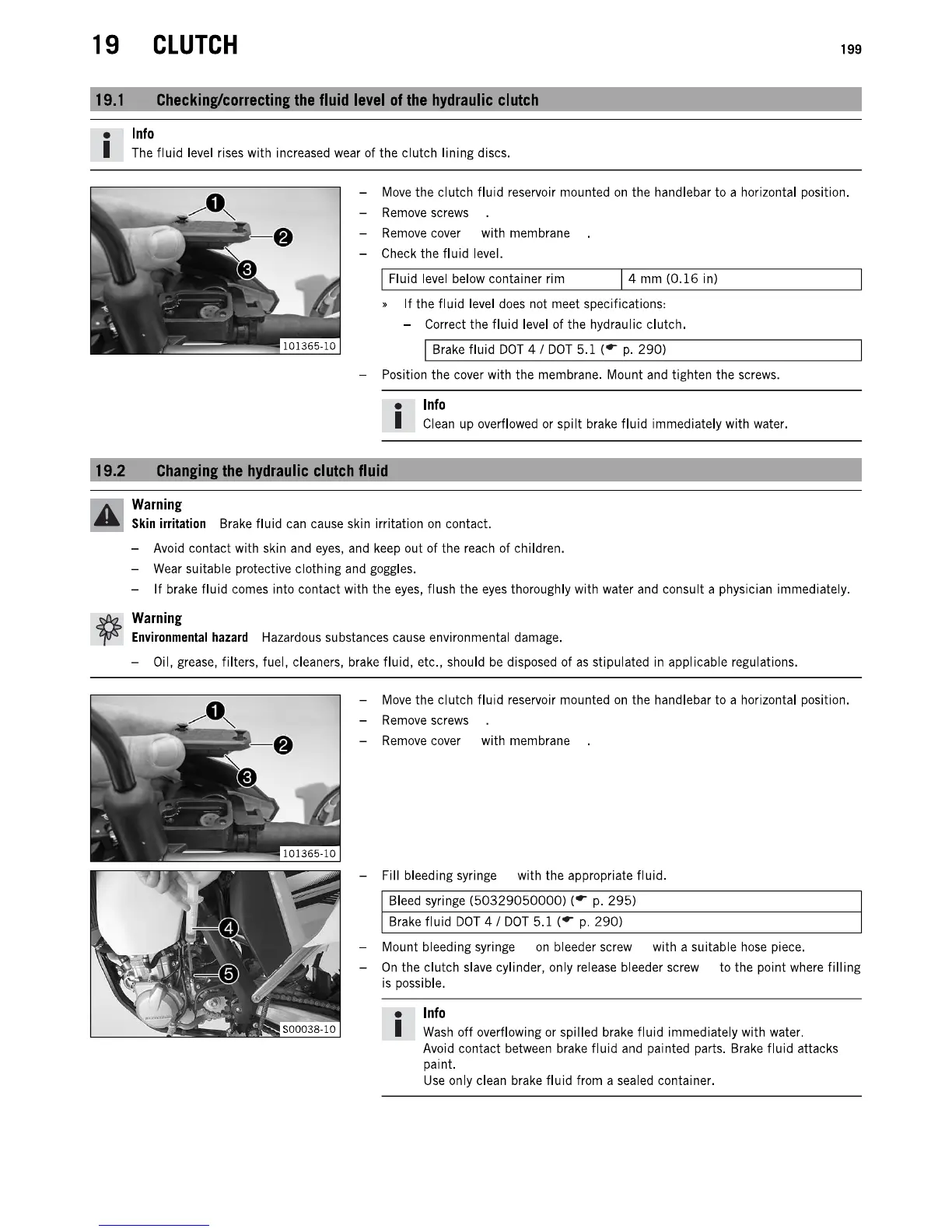

19
CLUTCH
199
19.1
Chackina1.corracti!.llllla
lIuid
laval
of
ilia
!m!
raulic
clutch
•
Info
I The
fluid
level rises with increased wear of the clutch lining discs.
-
Move
the clutch fluid reservoir mounted
on
the handlebar
to
a horizontal position.
-
Remove
screws
-
Remove
cover
with
membrane
- Check the fluid level.
I Fluid level below container rim
14
mm
(0.16
in)
•
If
the fluid level does not meet specifications:
- Correct the fluid level of the hydraulic clutch.
I Brake fluid
DOT
41
DOT
5.1 (
.-
p.
290)
- Position the cover with the membrane. Mount and tighten the screws.
•
Info
I
Clean
up overflowed or
spilt
brake
fluid
immediately with water.
raulic
clutch
fluid
Warning
Skin
irritation
Brake fluid can cause skin irritation
on
contact.
- Avoid contact with skin and
eyes,
and
keep out of the
reach
of
children.
-
Wear
suitable protective clothing and goggles.
- If brake fluid comes into contact with the
eyes,
flush the
eyes
thoroughly with water and consult a physician immediately.
Warning
Environmental
hazard
Hazardous
substances
cause
environmental
damage.
- Oil,
grease,
filters, fuel, cleaners, brake fluid, etc., should
be
disposed of
as
stipulated in applicable regulations.
-
Move
the clutch fluid reservoir mounted
on
the handlebar
to
a horizontal position.
-
Remove
screws
-
Remove
cover with membrane
- Fill bleeding syringe with the appropriate fluid.
Bleed syringe
(50329050000)
(
.-
p.
295)
Brake fluid
DOT
41
DOT
5.1 (
.-
p.
290)
- Mount bleeding syringe
on
bleeder screw with a suitable
hose
piece.
-
On
the clutch slave cylinder, only release bleeder screw
to
the point where
filling
is possible.
•
Info
I
Wash
off
overflowing or spilled brake fluid immediately with water.
Avoid contact between brake fluid and painted parts. Brake fluid attacks
paint.
Use
only clean brake fluid from a sealed container.
