10. - Maintenance and storage
FC302G - FC302GI - FC352G
91
KN270BGB_F
Mower conditioner

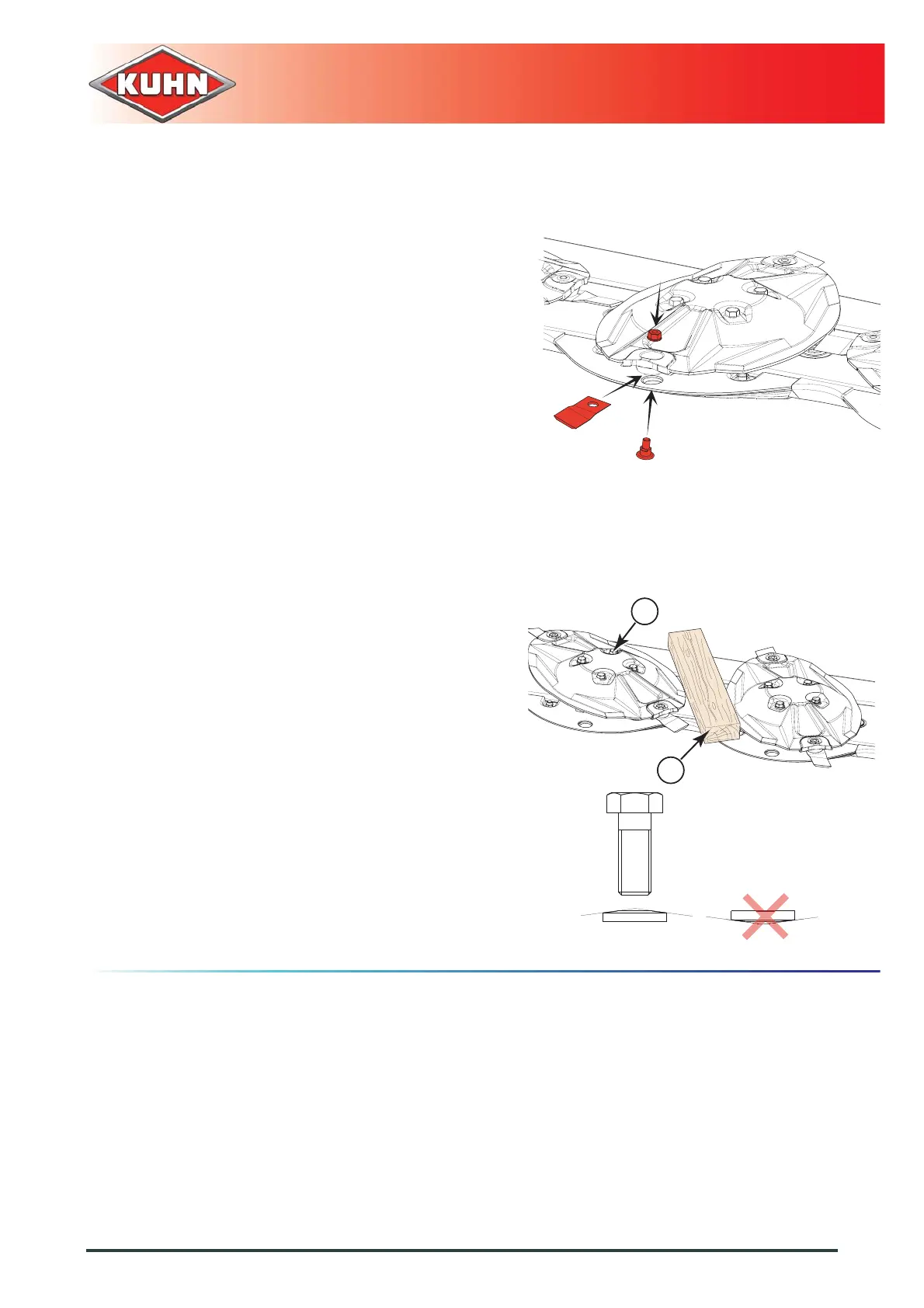

Disc replacement
- Clean the nut case.
- Place a wooden wedge between two discs to stop
them from rotating.
- Loosen nut using box spanner supplied with the
machine.
- Remove bolt through opening located at the front
of the disc guard.
Knives can be turned over on the same disc to use
the other cutting edge or replaced. On each knife,
an arrow indicates the disc's direction of rotation.
- Make sure that the securing nut and bolt are in
good condition and if necessary, replace them.
- Tighten the securing nut of the knives to 12 daN.m
(89 lbf ft).
Dull knives require more horse power and have a
negative effect on the cut quality.
- Place a wooden wedge (2) between two discs to
stop them from moving.
- Remove 4 bolts (1) and their spring washers using
the box spanner supplied with the machine.
- Remove the disc.
When remounting:
- Position their largest diameters at right angles to
each other.
- Position conical centre of spring washer at the top.
- Torque bolts to (2) :
• Torque: 12 daNm (89 lbf ft).
