Kurzweil SP5-8 Service Manual

Introduction

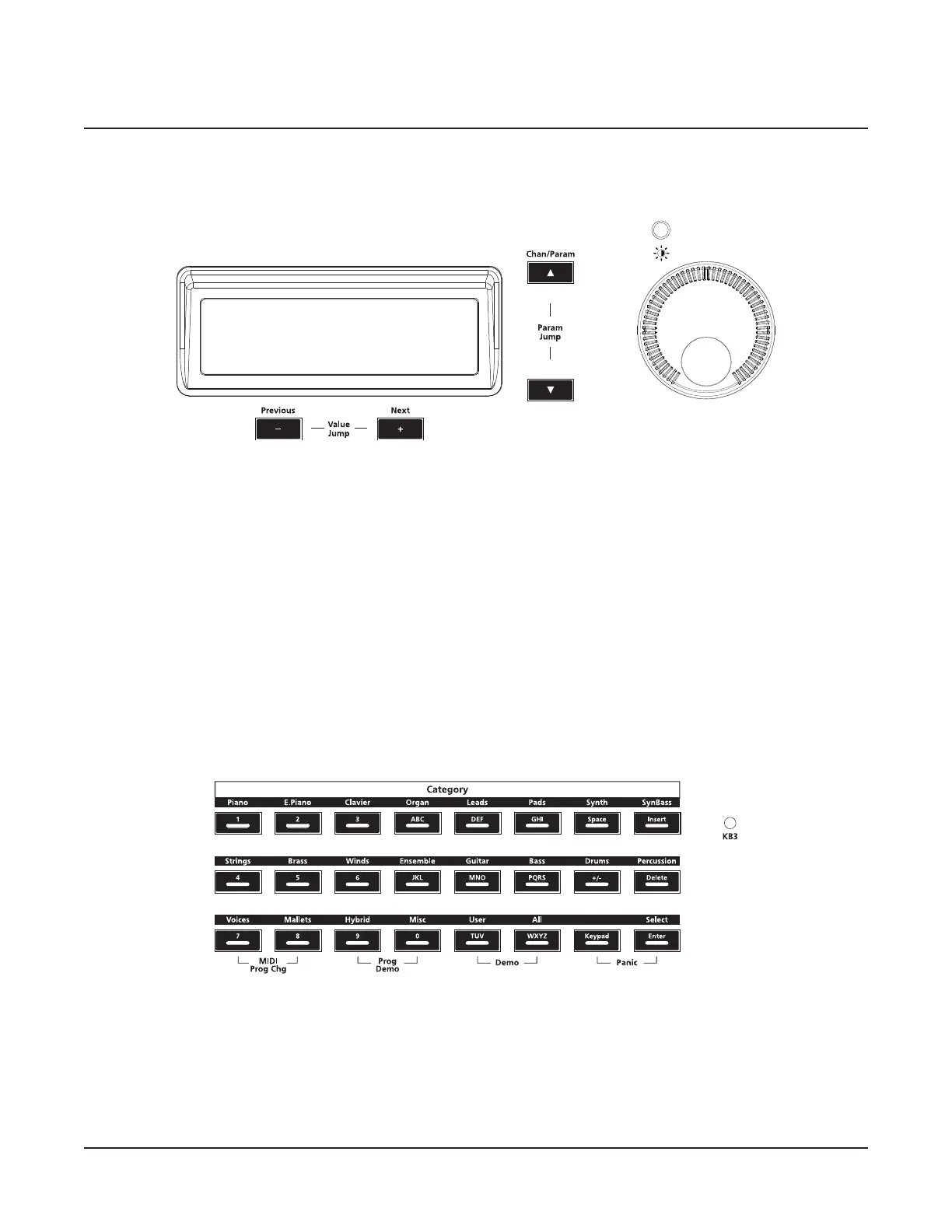

Front Panel Features
1-4
Navigation
LCD—Twenty character, 2 line liquid crystal display.
Previous—Press the Previous button to select the previous or lower value or item.
Next—Press the Next button to select the next or higher value or item.
Chan / Param Up and Down—Use these buttons to move through the list of available parameters
for the current mode.
LCD Contrast—Turn this rotary potentiometer to adjust the LCD for the best viewing angle.
Alpha Wheel—Turn the Alpha Wheel to increase or decrease a value by one or several
increments.
Category Buttons and KB3 LED
Category buttons—There are 24 Category buttons. Twenty buttons to select Programs by
instrument type, two buttons (User and All) that allow you to scroll through Programs and
Setups, and two buttons (Keypad and Enter) to select and enter the alphanumeric data. Note that
on each button the secondary alphanumeric function is printed in white ink.
KB3 LED—This LED is lit when the current Program is a KB3 Program.

Kurzweil SP5-8 Specifications

General

Keyboard number of keys	88
MIDI-keyboard number of keys	- keys
Product color	Black
Pitch bend wheel	Yes
Interface	USB
Headphone outputs	1
Input voltage	15 V
Power source type	DC
Power consumption (typical)	15 W

Weight and Dimensions

Depth	350 mm
Width	1392 mm
Height	120 mm
Weight	21000 g
