1-5-2 Outer covers
(1) Detaching and refitting the left cover and right cover
Procedure
1. Remove the screw.
2. Unhook four hooks and then remove the
rear upper cover.

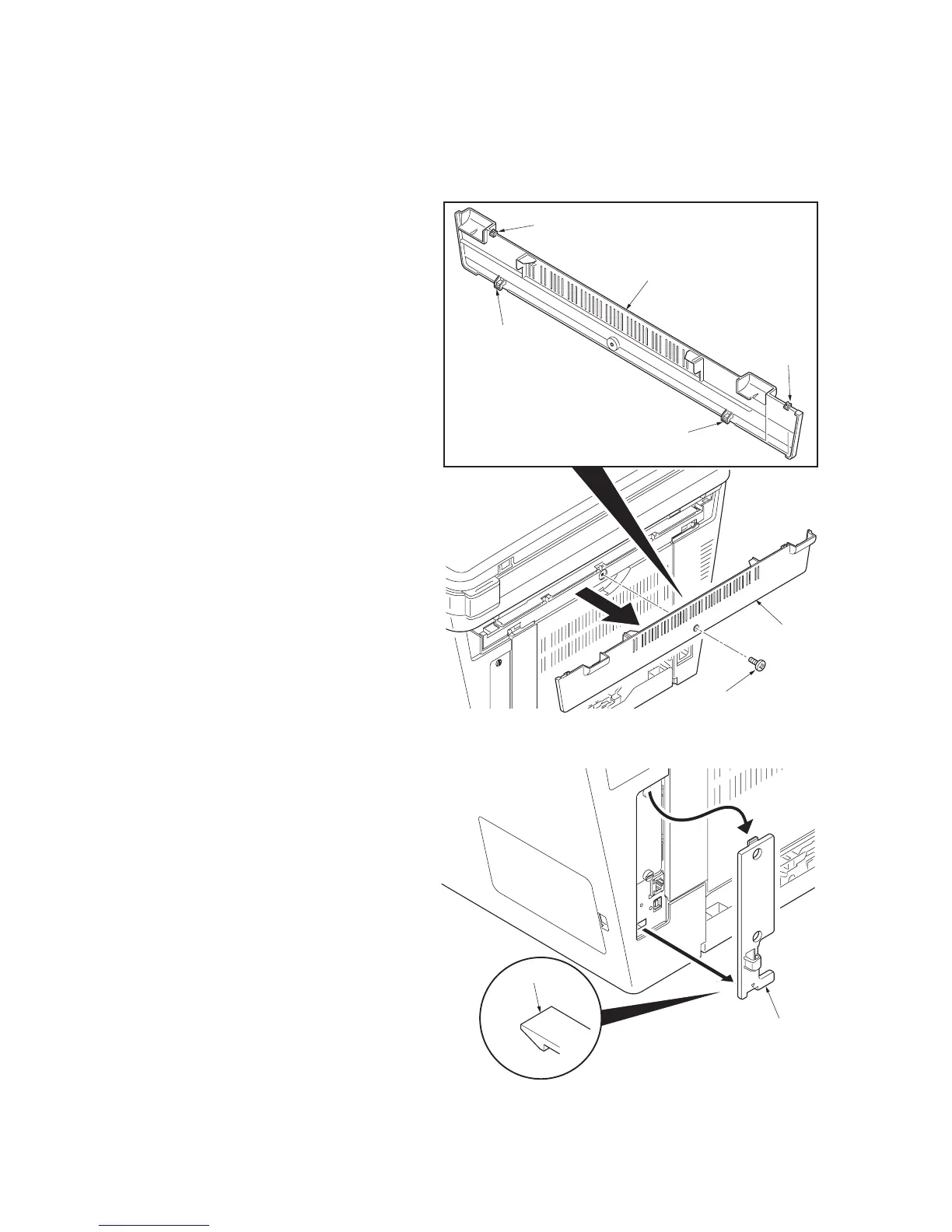

Figure 1-5-3
3. Remove the cassette (See page 1-5-6).
4. Open the front cover.
5. Unhook the hook and then remove the con-
troller box cover.
Figure 1-5-4
Screw
Hook
Hook
Hook
Hook
Rear upper cover
Rear upper cover
Controller box cover
Hook
