Kyocera FS-1028MFP Service Manual

2H9
1-4-1
1-4 Troubleshoo ting
1-4-1 Paper misfeed detection
(1) Paper misfeed indication
When a paper misfeed occurs, the printer immediately stops printing and displays the paper misfeed message on the
operation panel. To remove paper misfed in the printer, pull out the paper cassette, open the front cover, rear cover or
duplexer’s cover, or remove the drum unit.
Figure 1-4-1Paper misfeed indication

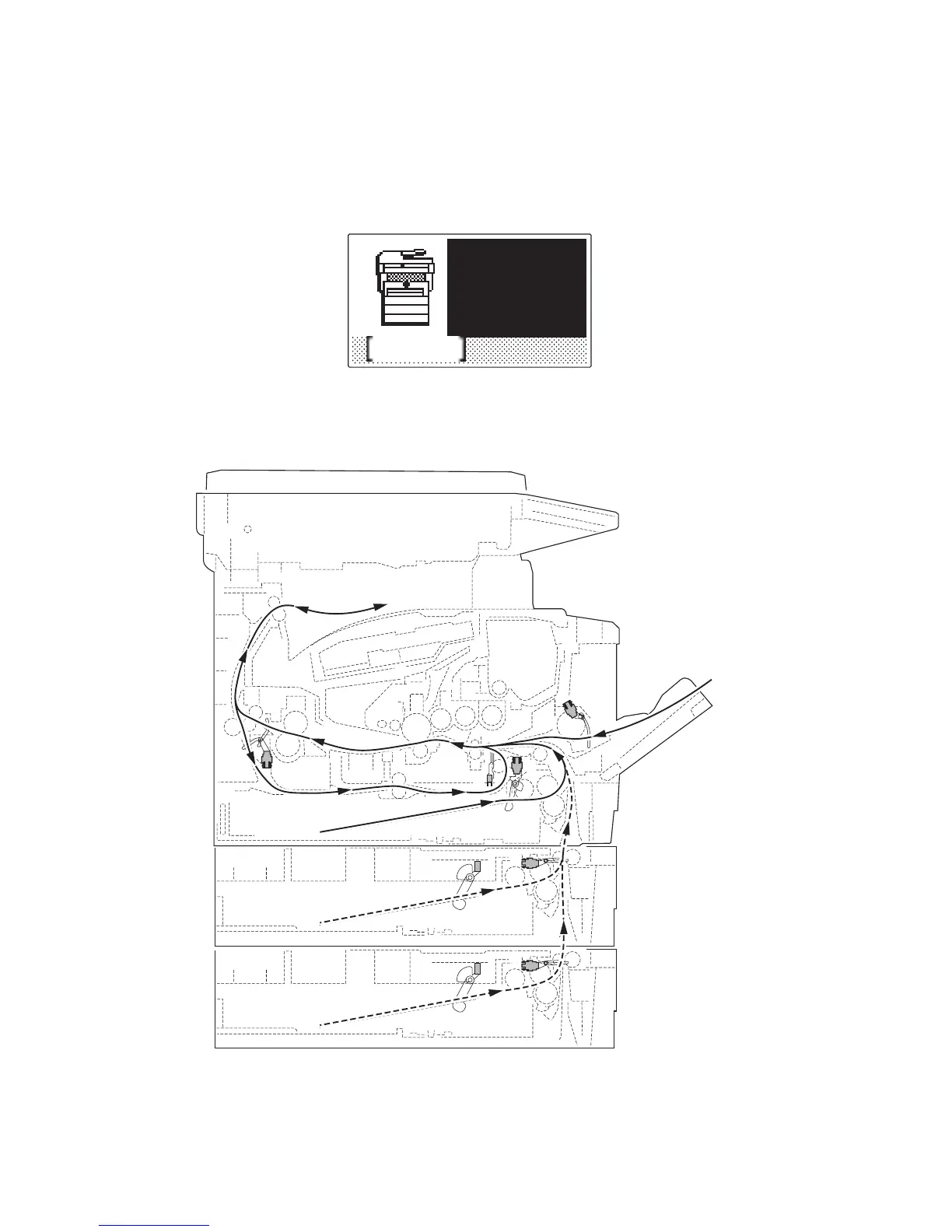

(2) Paper misfeed detection condition
Figure 1-4-2
Help
Paper
jammed in
the printer
JAM**
Peper feeder 1
(Option)
Peper feeder 2
(Option)
Printer
 Registration sensor
 Paper sensor
 MP paper sensor
 Exit sensor
 PF paper feed senso
r
 PF paper sensor








