1-6-5 Developing section
(1) Detaching and refitting the developing unit
Follow the procedure below to replace the developing unit.
Procedure
1. Remove the drum unit (see page 1-6-38).
2. While lifting the developing unit a little,
remove the unit from the MFP.
3. Replace the developing unit and refit all the
removed parts.

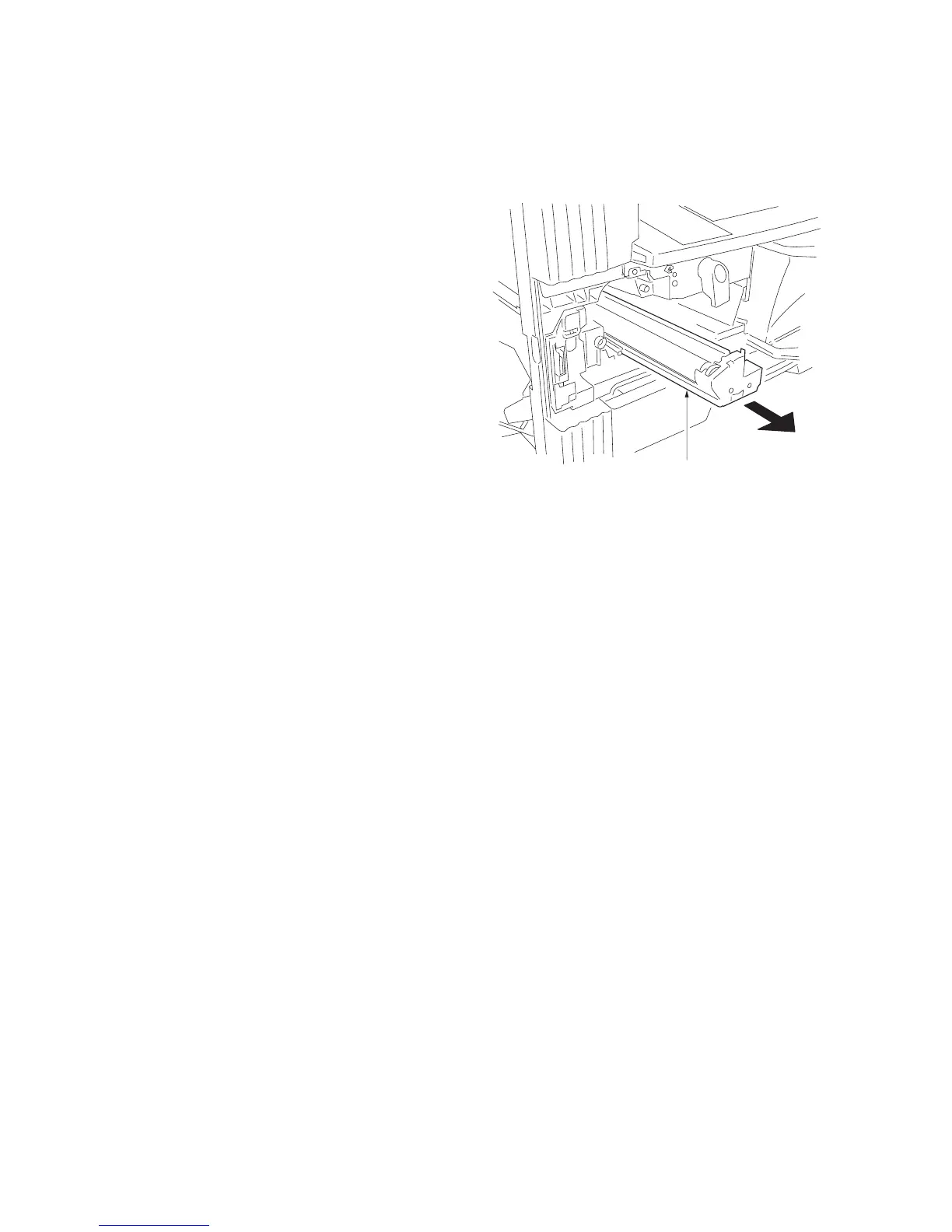

Figure 1-6-73
Developing unit
