(3) Motors

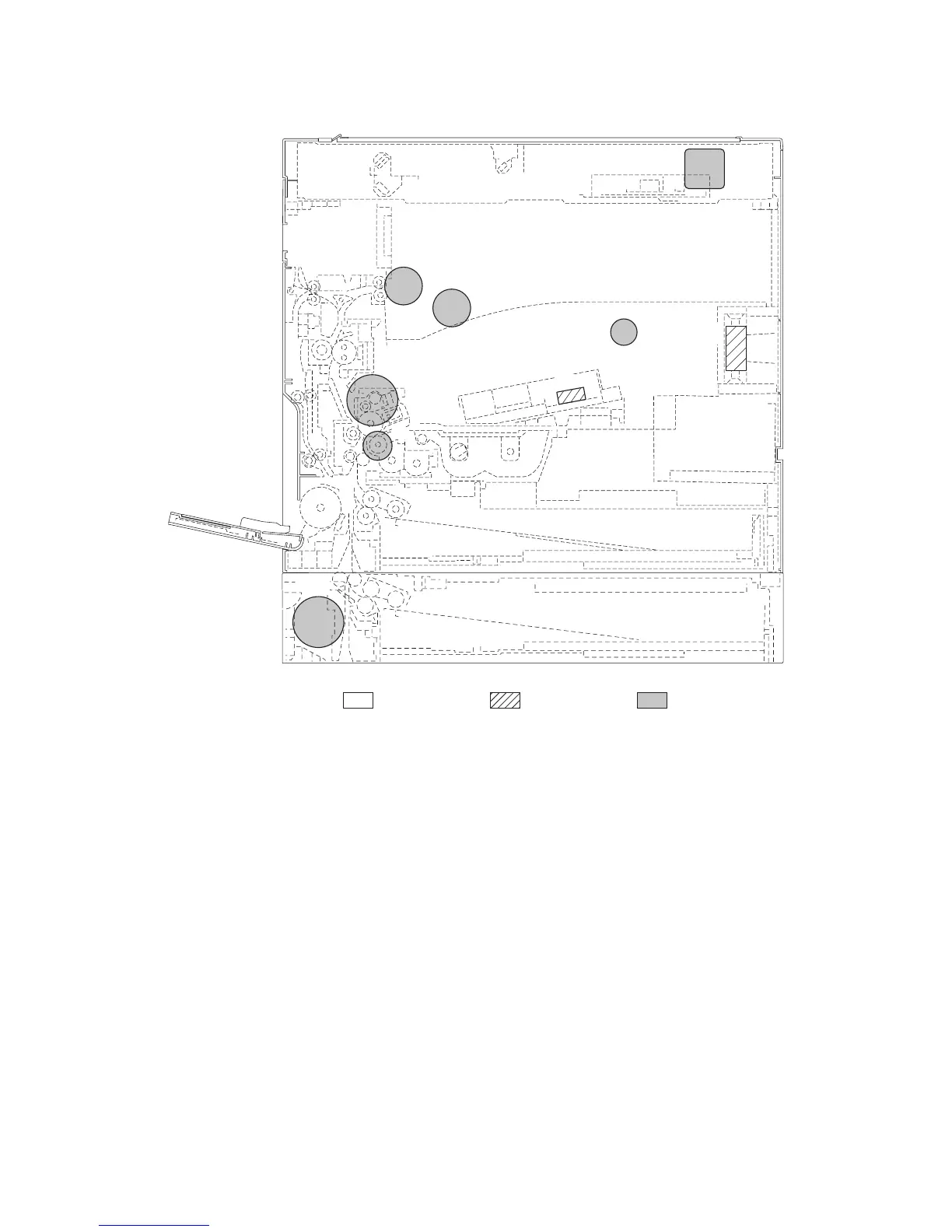

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Scanner motor (SM)..................................... Drives the optical system.
3. Exit motor (EM)............................................ Drives the exit section.
4. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
5. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
6. Cooling fan motor 3 (CFM3) ........................ Cools the machine interior.
7. Polygon motor (PM)..................................... Drives the polygon mirror.
8. Registration motor (RM)............................... Drives the registration roller
9. Drawer drive motor (DDM)*
1
........................ Drives the drawer section.
*1: Optional for 16 ppm model./Standard for 20 ppm model.
