2DA/2DB
1-3-21
8. Connect the 4-pin connector of the key
counter to the key counter wire.
9. Engage the projection of the key counter
mounting plate with the aperture of the right
cover.
10. Secure the key counter cover and the key
counter mounting plate together with the
MFP using a M4 x 35 screw.
11. Refit the rear cover.

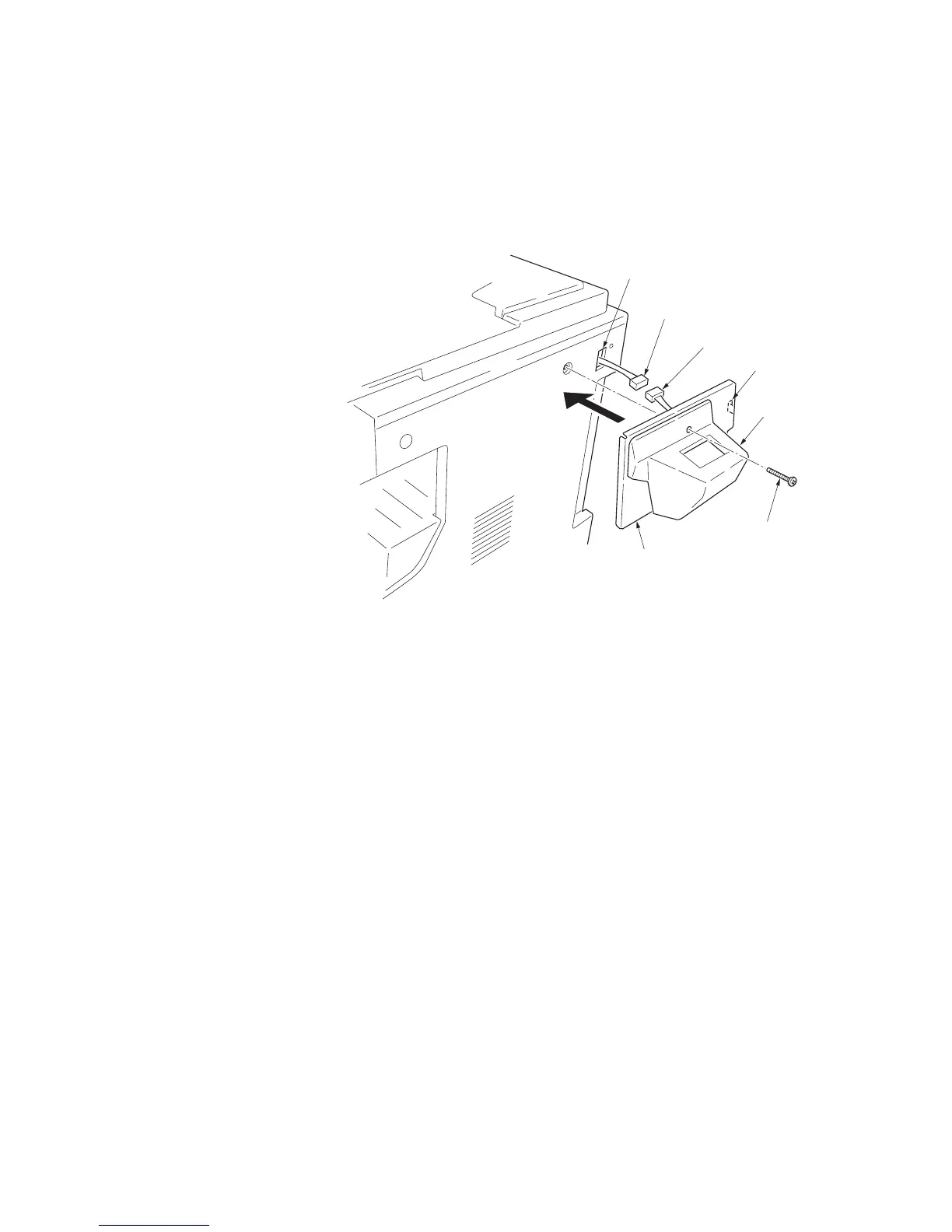

Figure 1-3-34
12. Insert the key counter into the key counter
socket assembly.
13. Turn the power switch on and enter the
maintenance mode.
14. Run maintenance item U204 and select
“KEY COUNTER”
15. Exit the maintenance mode.
16. Check that the message requesting the key
counter to be inserted is displayed on the
message display when the key counter is
pulled out.
17. Check that the counter counts up as copies
are made.
Key counter wire
4-pin connector
Aperture
Key counter
cover
Key counter mounting
plate (2C960100)
M4 x 35 screw
(B0004350)
Projection
