5. Remove the screw holding each of the front
and rear wire retainers and then remove the
mirror 1 frame from the scanner unit.
6. Unhook the round terminal of the scanner
wire from the scanner tension spring on the
left side of the scanner unit.
7. Remove the scanner wire.
Mirror 1 frame
Rear wire
retainer
Front wire
retainer
Scanner tension springs
Round terminal
Round terminal

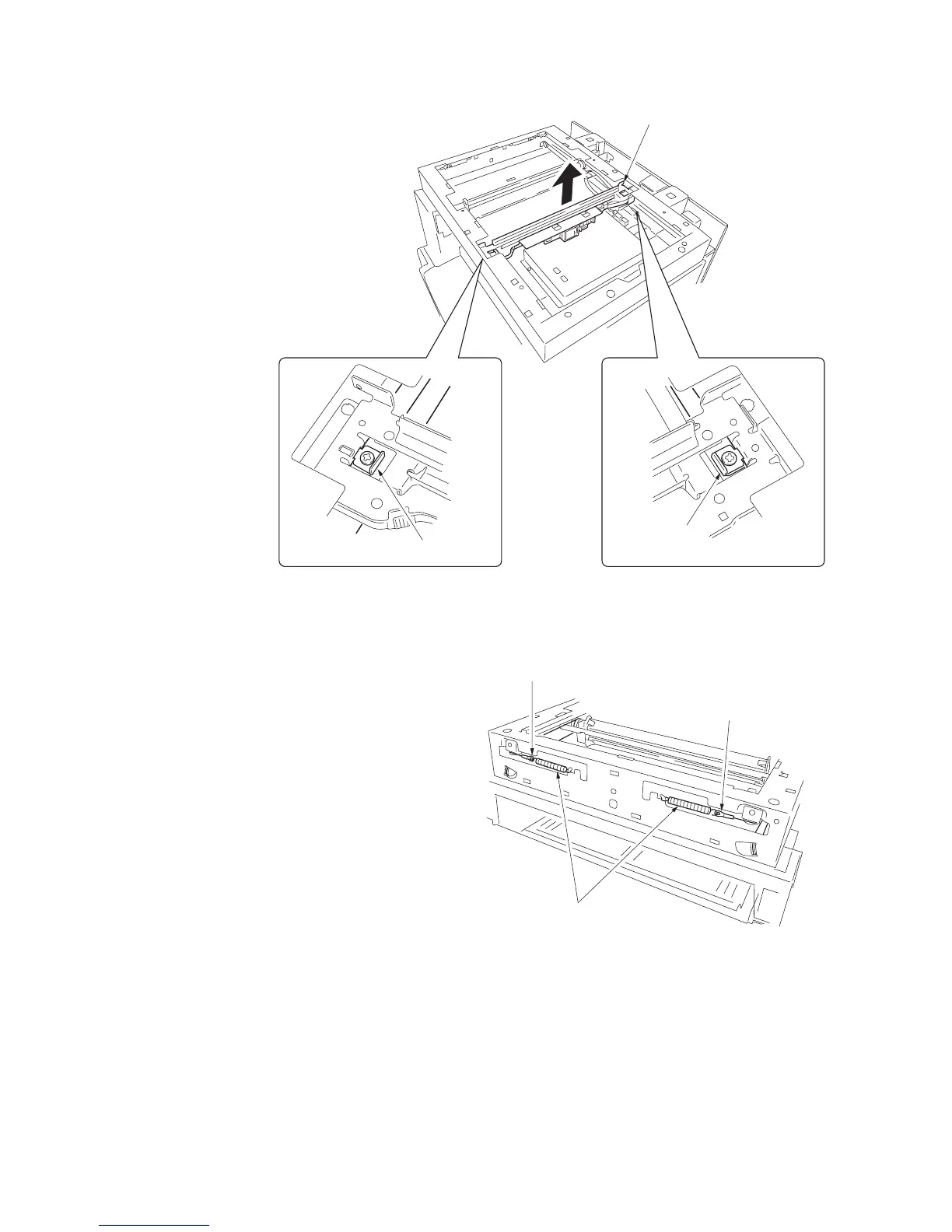

Figure 1-6-35
