(7) Adjusting magnification of the scanner in the auxiliary scanning direction
Perform the following adjustment if the magnification in the auxiliary scanning direction is not correct.
U053
(P. 1-4-10)
U070
(P. 1-4-13)
U065
(auxiliary scanning
direction)
U065
(main scanning
direction) (P. 1-6-28)
Caution:
Before making the following adjustment, ensure that the above adjustments have been made in maintenance mode.
Procedure
Original Copy
example 1
Copy
example 2

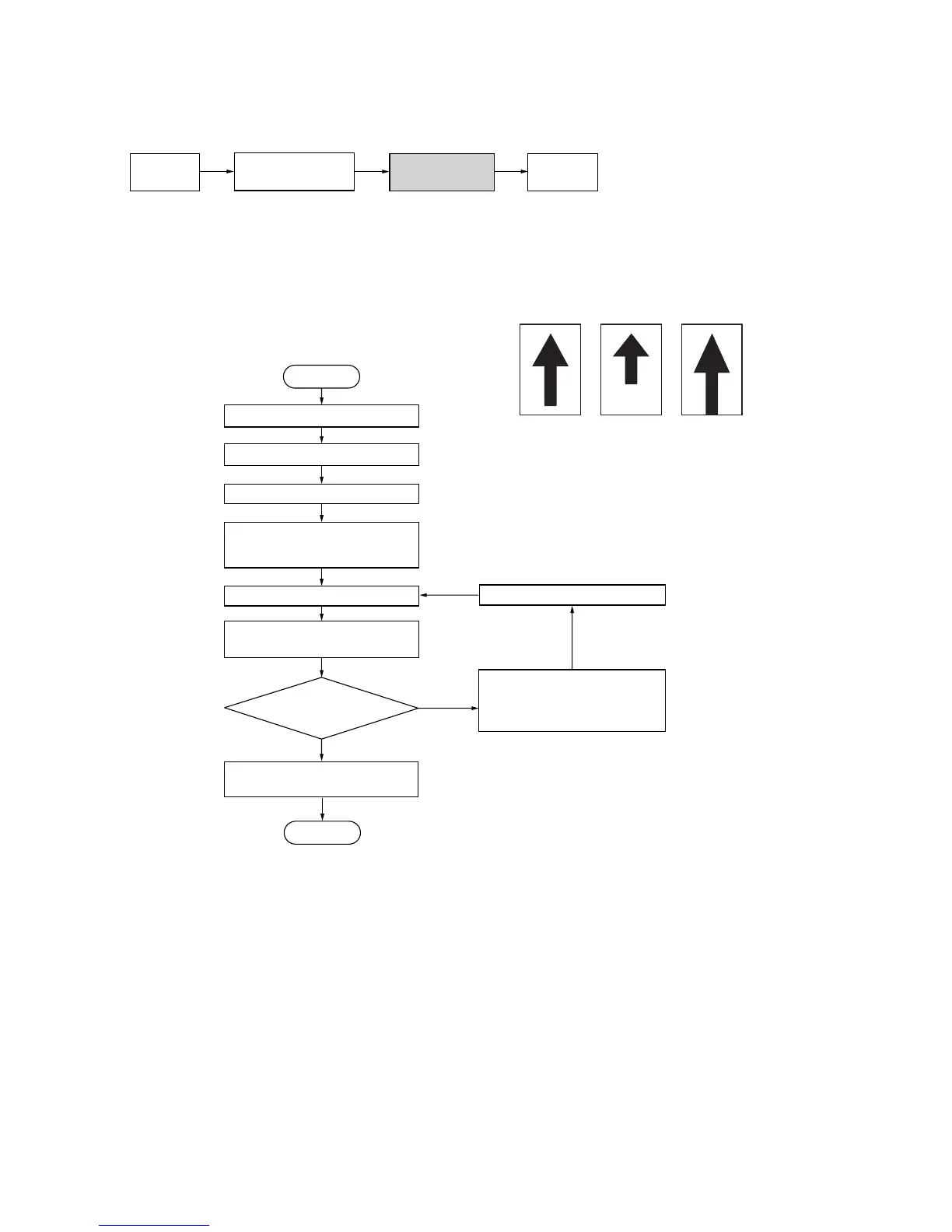

Figure 1-6-57
Enter maintenance mode.
Enter “065” using the numeric keys.
Yes
No
Start
Press the interrupt key.
Place an original and press
the start key to make a test copy.
Is the image correct?
Setting range: –25 – +25
Initial setting: –12
Changing the value by 1 changes
the magnification by 0.1%.
Increasing the value makes
the image longer, and decreasing it
make the image shorter.
For copy example 1, increase the
value using the zoom (+) key.
For copy example 2, decrease the
value using the zoom (–) key.
Press the start key.
The new setting
is stored.
Press the start key.
Select “exp. 2” (auxiliary scanning
direction using the copy exposure
adjustment keys).
End
Press the stop/clear key to
exit maintenance mode.
● Copy exposure adjustment keys
Exp. 1 (lit): Main scanning direction
Exp. 2 (lit): Auxiliary scanning direction
