(3) Motors

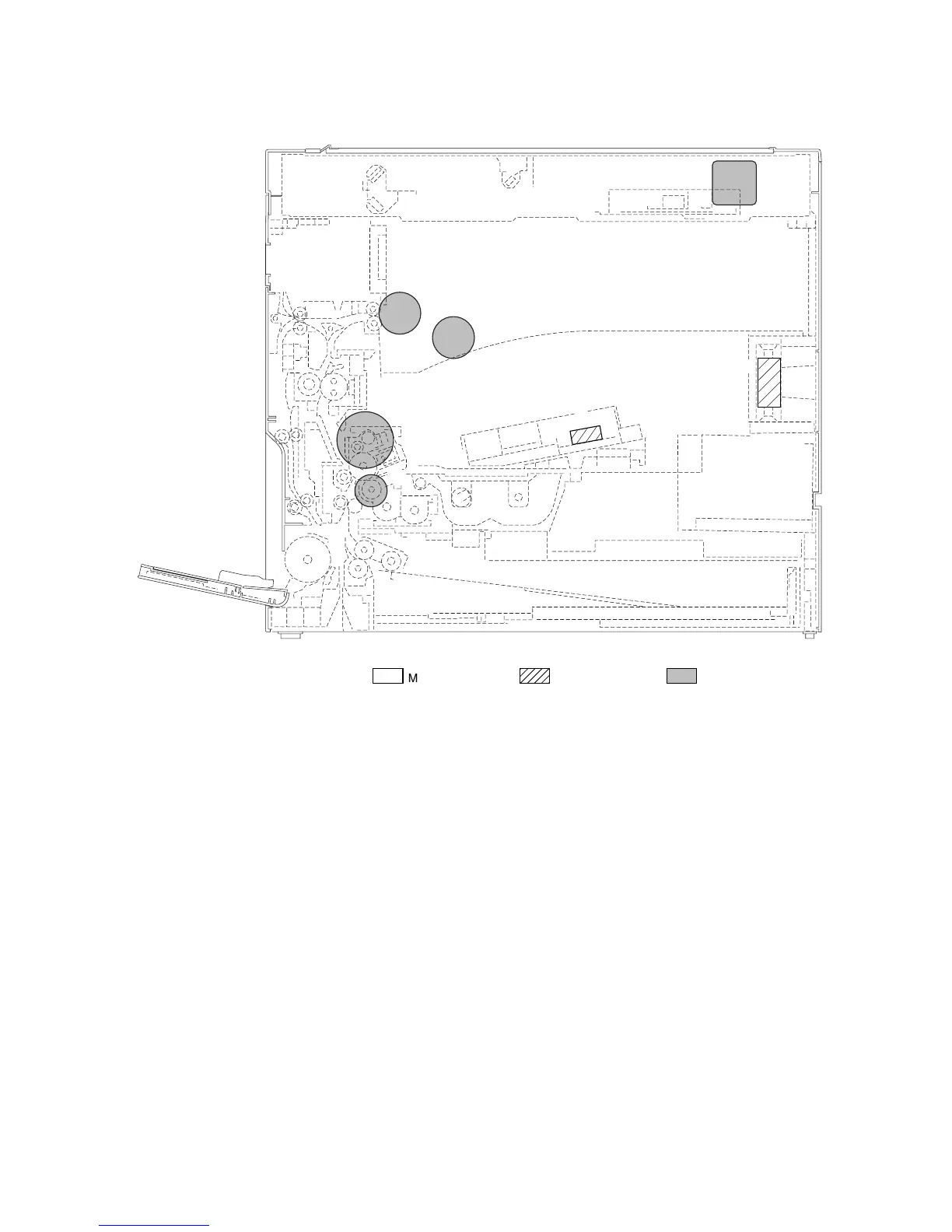

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Scanner motor (SM) .................................... Drives the optical system.
3. Exit motor (EM) ............................................ Drives the exit section.
4. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
5. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
6. Polygon motor (PM) ..................................... Drives the polygon mirror.
7. Registration motor (RM) ............................... Drives the registration roller.
