Kyocera KM-2020

2C9
2-1-17

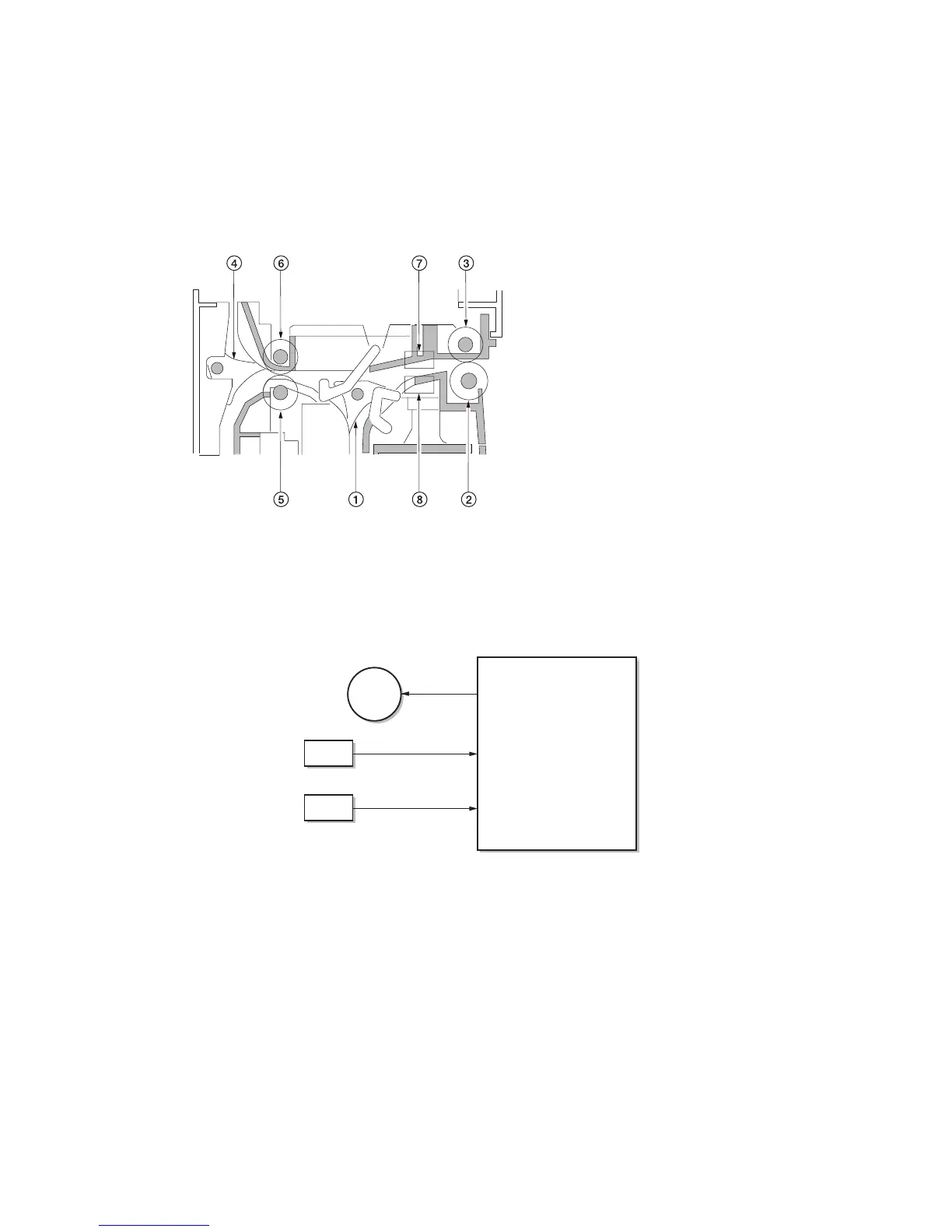

2-1-7 Exit and switchback sections
The exit and switchback sections exit paper on which fixing has ended with the exit roller that is rotated by forward
rotation of the exit motor.
In duplex copying, paper is turned over by reverse rotation of the exit motor.
1 Feedshift guide
2 Exit roller
3 Exit pulley
4 Feedshift guide
5 Switchback roller
6 Switchback pulley
7 Exit switch (ESW)
8 Feedshift switch (FSSW)
Figure 2-1-21 Exit and switchback sections block diagram
Figure 2-1-20 Exit and switchback sections
EPCB
EM
ESW
FSSW
YC14-1,2,3,4
YC15-2
YC15-3
EM
ESW
FSSW
