1-3-9
2C9-3

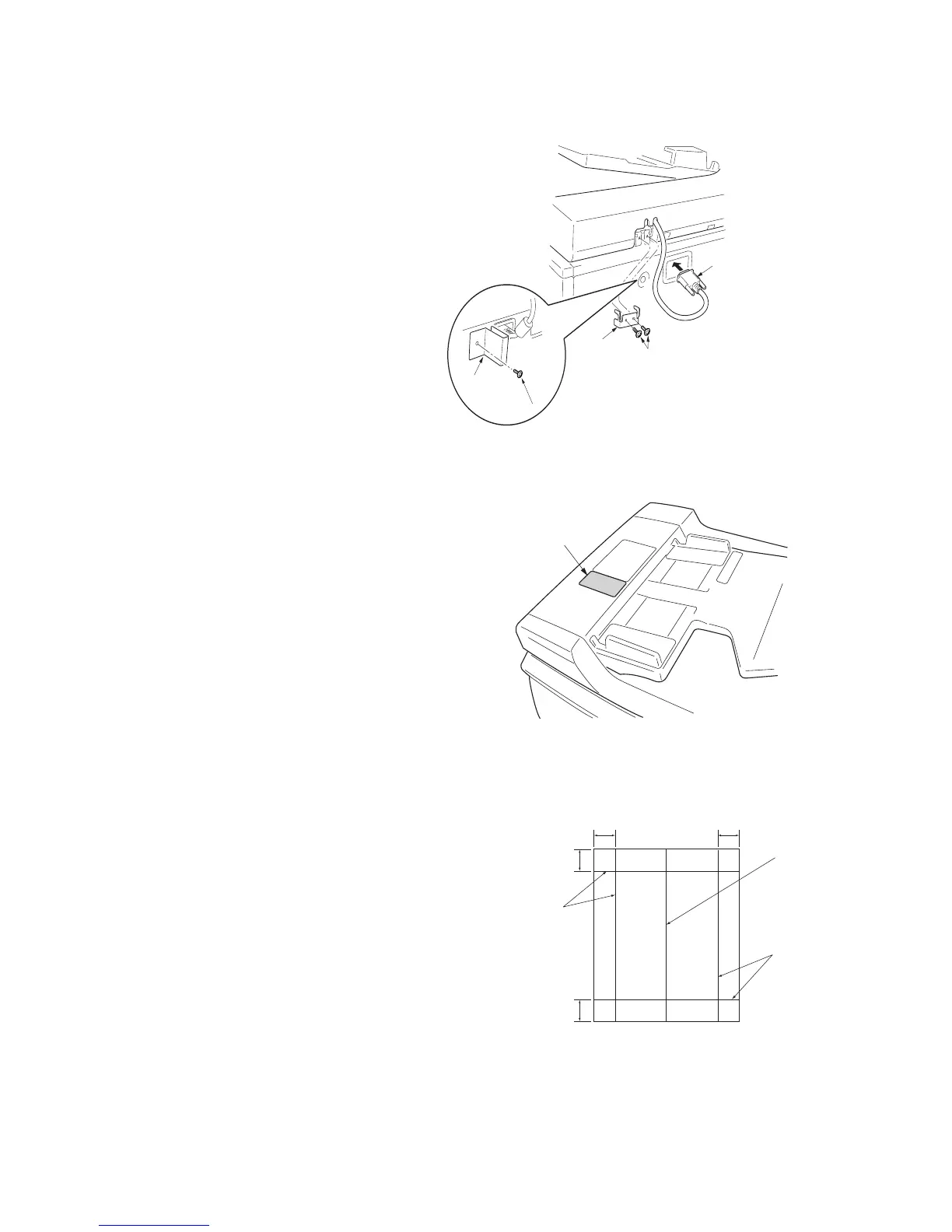

5. Close the DP, fit the fixing fitting from the rear side of
the right hinge, and secure it with the two bronze TP
screws M3 x 06.
6. Connect the cable of the DP to the copier.
* Be sure to tighten the fixing screws on both side of
the connector.
7. Remove the screw from the rear cover and fit the
connector protection plate to the rear cover using the
screw.
8. Paste the caution label that corresponds to the
language according to the destination to the DP.
[Operation check]
1. Prepare an original on which 4 lines are drawn 15
mm from the edges and the center line is drawn.
2. Set the original on the DP and make a test copy to
check the copy image.
At this time, set the paper guide for the original table
and drawer to the paper size to be used.
3. If the copy image does not match the original image,
carry out the following adjustments in maintenance
mode.
• Maintenance mode 070 (sub-scan line adjustment)
• Maintenance mode 071 (leading edge timing
adjustment)
• Maintenance mode 072 (center line adjustment)
Figure 1-3-13
Fixing fitting
Cable
Bronze TP screws M3 x 06
Screw
Connector
protection plate
Figure 1-3-14
Figure 1-3-15
Caution label
