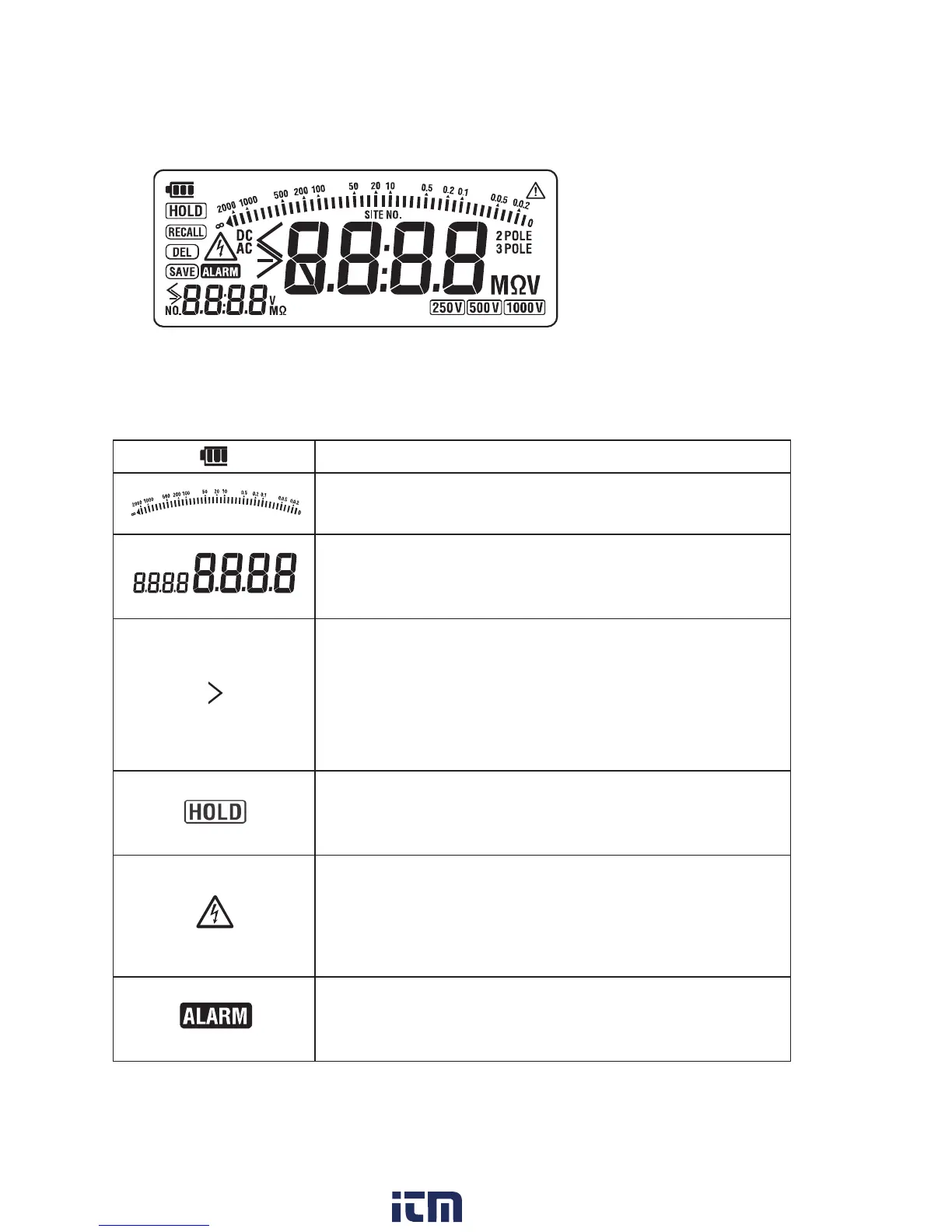

(4) LCD
● Symbols common to all functions
Battery level indicator
Bar graph
(For PV insulation, insulation, earth measurements)
Segments for numerical display
Indicates “Over-range” status – the measured
value is exceeding the positive display limit.
e.g.: In earth measurements, “>2099Ω” may be
displayed. It indicates that the measured value is
exceeding 2099 Ω.
Indicates that a measurement completes and the
result is being held and displayed on the LCD.
Flashes to provide live circuit warning (for PV
insulation, insulation, earth measurement). This
mark also flashes during an insulation resistance
measurement.
Indicates that alarm function is enabled.
