(5) [Auto discharge function]
This function allows electric charges stored in the capacitance of the
circuit under test to be automatically discharged after measurement.
Set the TEST button or remote control switch to off with the test leads
connected. Discharge can be monitored by the readings displayed at the
lower left of the LCD and also by live circuit warning LED, red backlight
and blinking mark.
Warning
example
Pressing the BACK button during discharging allows you to monitor the
discharge voltage. In this case, the measured insulation value will be
cleared and go off from the screen.
(6) Press the POWER button and power off the instrument when measure-
ment completes, and then disconnect the test leads from the instrument.
DANGER
● Never touch the circuit under test immediately after measurement.
Capacitance stored in the circuit may cause electric shock. Leave the
test leads connected to the circuit and do not touch the circuit until
live circuit warning LED and warning mark stop blinking.

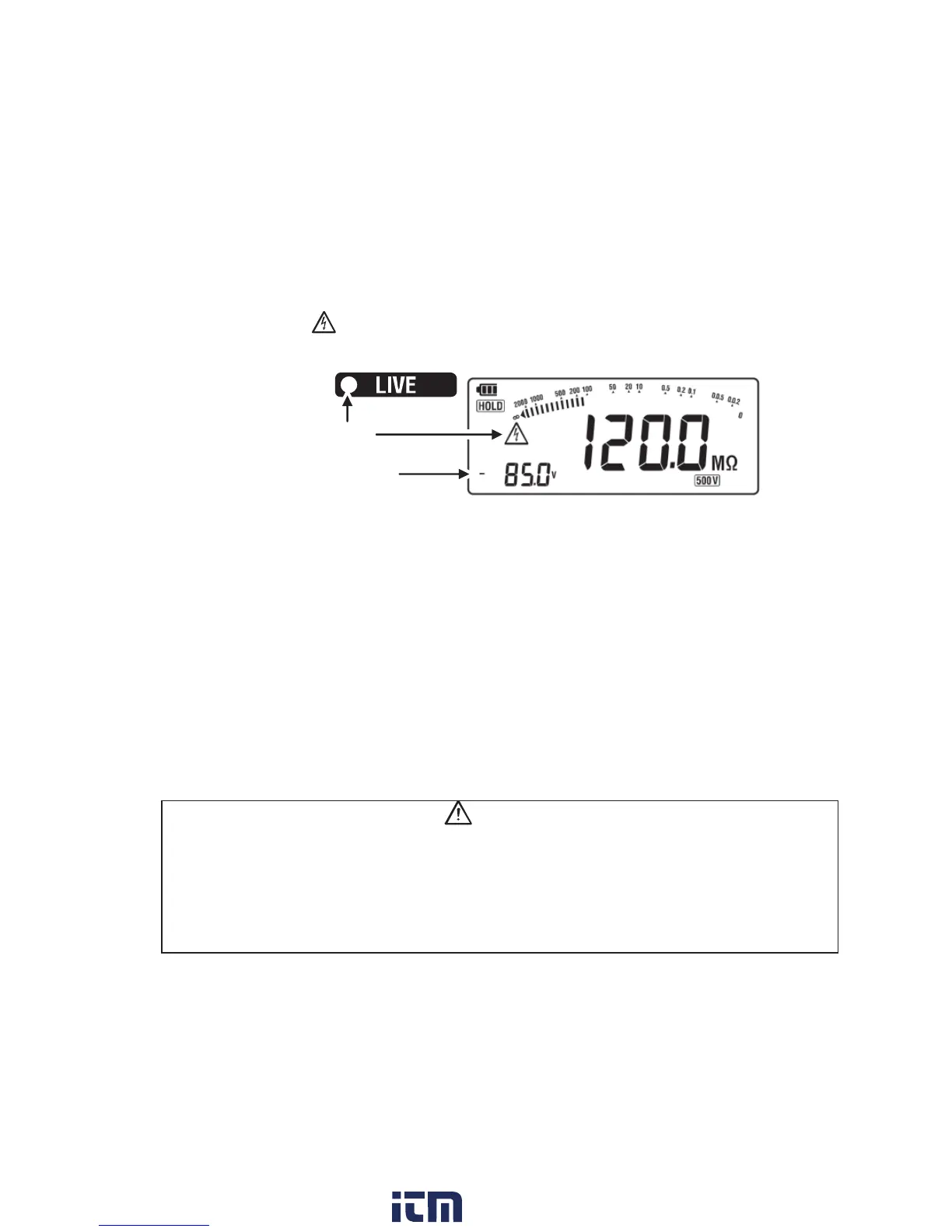

Blink
Voltage
Fig. 8-5
