Connect the customer-supplied service wires to the appropriate wire nuts on the
main wiring harness. Refer to the appropriate wiring diagram shown below.
Make certain the wiring connections match the wiring diagram for the voltage of
the washer being installed. Reference Fig. 4-7.
Connect the ground wire from the supply cable to the ¼-20 ground stud on the
electrical box using a ¼” lug or ring terminal.

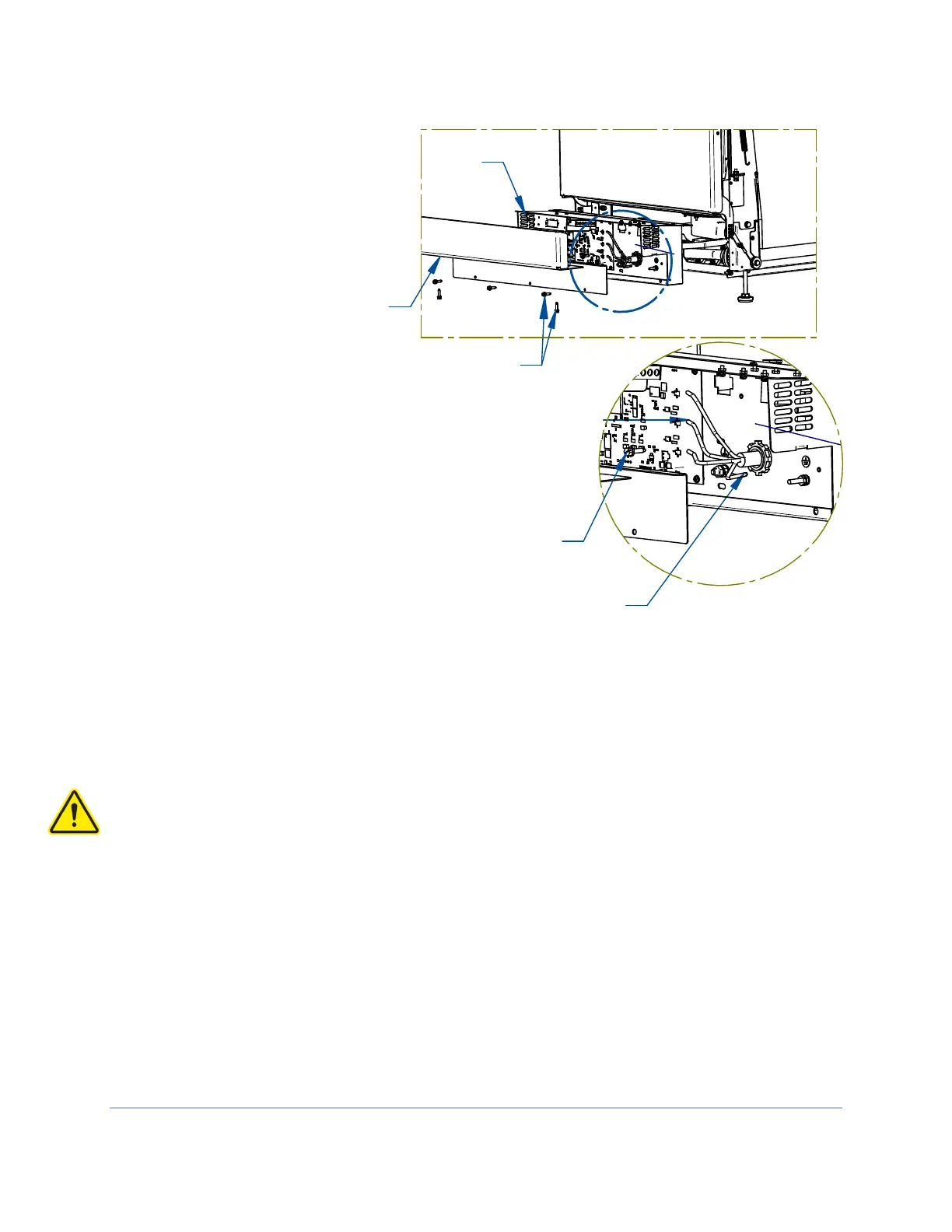

ROUTE WIRING THROUGH BACK
OF THE ELECTRICAL BOX
AND SECURE WITH STRAIN
RELIEF AS REQUIRED
TOE KICK PANEL
CONNECT ELECTRICAL
SUPPLY WIRES PER
THE WIRING DIAGRAM
ELECTRICAL
JUNCTION BOX
MOUNTING SCREWS
MOUNTING SCREW
A
Figure 4-6
