31
Secure the supply power cable with the two strain relief clamps at the back of the
electrical box and the back of the base.

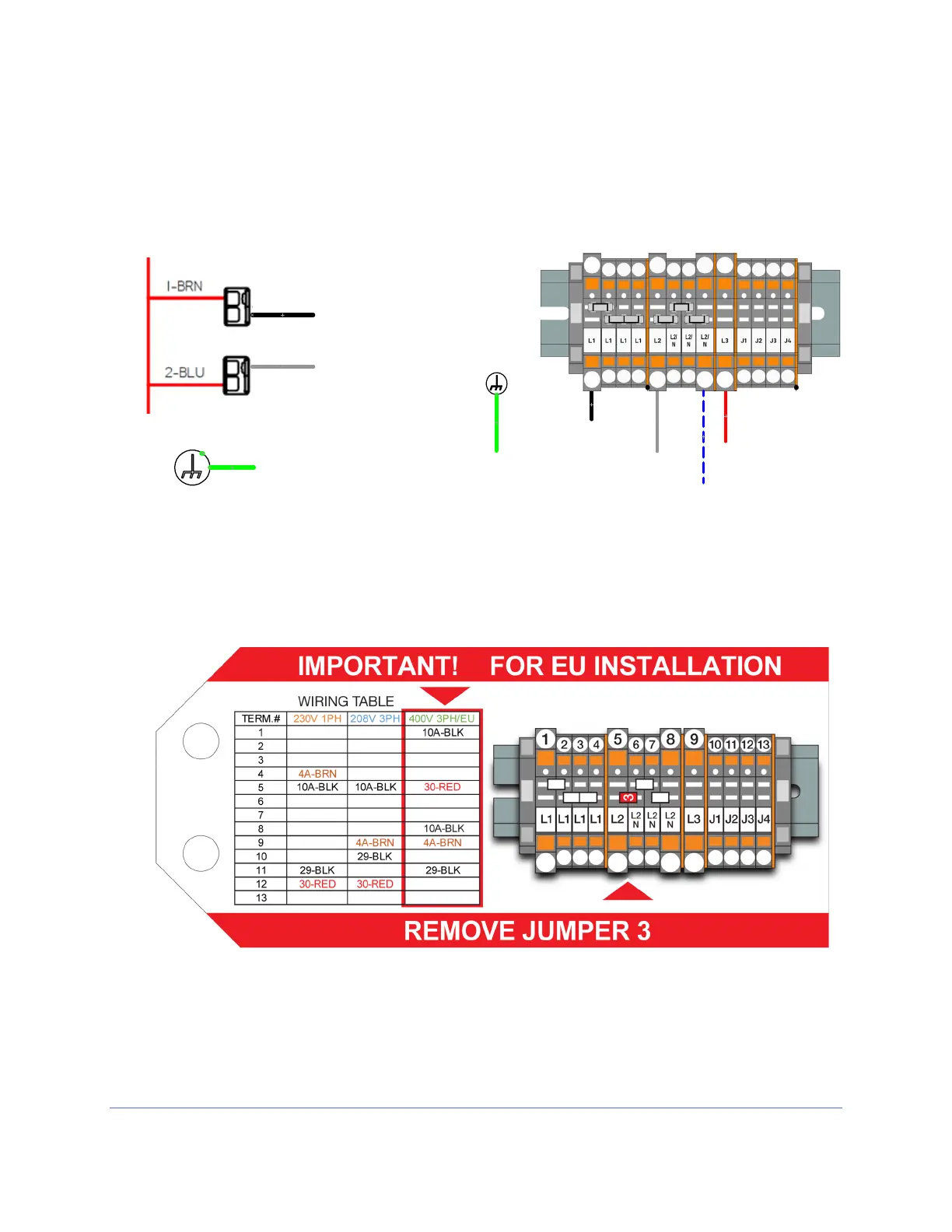

Figure 4-7
120/208/230v 1 PHASE SERVICE
CONNECT TO WIRE NUTS
SERVICE
GROUND
BOND
SERVICE L2
SERVICE L1
208/230v 3 PHASE SERVICE
CONNECT DIRECTLY TO TERMIAL BLOCK
SERVICE
GROUND
BOND
SERVICE PHASE 1
1
2
3
4
5
6
7
8
9
12 13
10
11
SERVICE NEUTRAL
AS REQUIRED
3
SERVICE PHASE 2
SERVICE PHASE 3
208/240/400v 6000W WIRING
INSTRUCTIONS
