Chapter 3: Getting Started

Product Service 1-800-522-7658

Original instructions

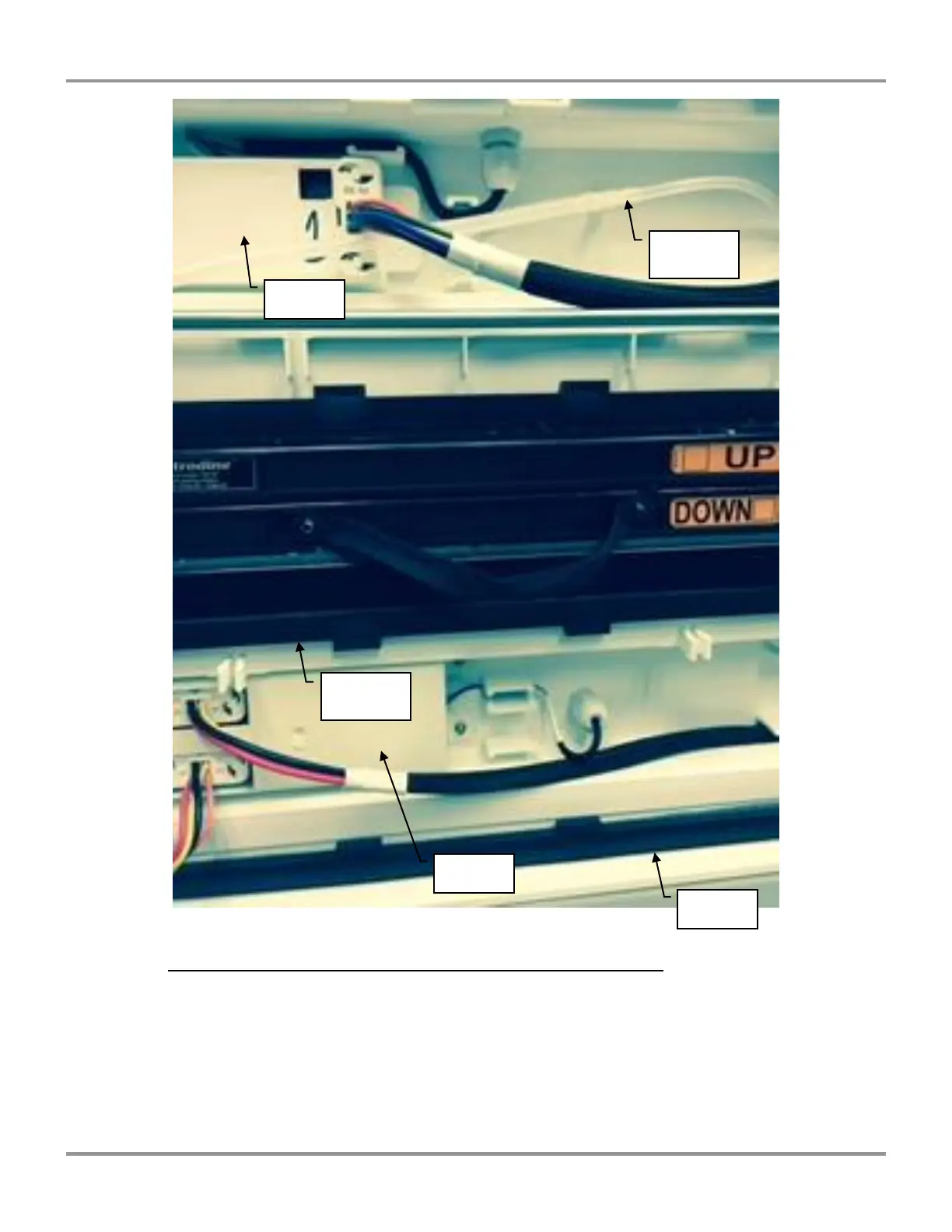

Step 6 – Check pre-filter and place primary filter on light box.

With the pre-filter in place now you are ready to put up your first Neutrodine

filter. Put the first filter on top of the light box putting the RFID tag end of the

filter facing out towards the front of the superstructure. Follow the stickers for up

and down positions that are on the filters.

Make sure the filter is properly seated on all sides of the light box.

Primary

Filter

Sampling

Tubing

Light

Gutter

Fan
