8) ANCHORING THE LEAVES TO THE TROLLEYS AND ADJUSTING THEM
•

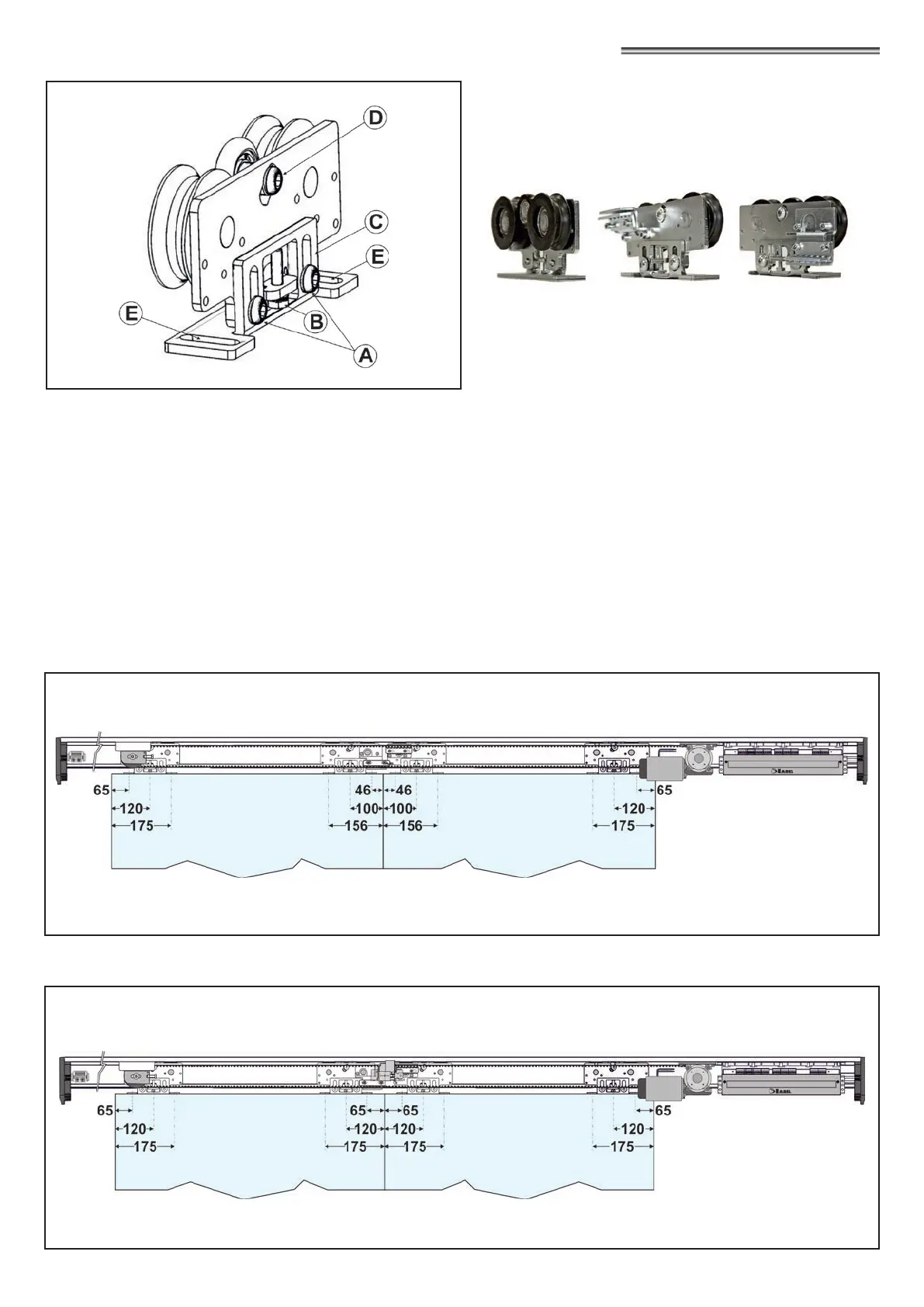

Unscrew the two front screws "A" of every trolley and remove the movable part "C".
•
Secure the removed mobile part “C” on the door at the distance indicated in gure 11 if there is no electric lock or gure 12 if the
electric lock is present.
•
Now hang the leaf to the automation matching the two parts of the trolley, then screw the screws "A" into their seats without tightening
them.
•
Adjust leaf height using the control screw “B” and fully tighten the two screws “A”.
•
Adjust the leaf horizontally by means of the eyelets "E" provided in the movable part of the trolley.
•
To ensure the correct operation of the automation, it is important that the mobile leaf is perpendicular to the transom.
•
Adjust the height of the opposing wheel operating the adjustment screw (D) so that the wheel almost touches the top inner part of the
transom without applying pressure.
•
Then manually move the leaf until it reaches the run end and check that there are no frictions at any point; otherwise adjust the
opposing wheel position again.
FIG. 10
FIG. 9
FIG. 10
DOUBLE LEAF WITHOUT ELECTRIC LOCK
DOUBLE LEAF WITH ELECTRIC LOCK
