18) PROGRAM SELECTORS
The program selector allows the user to select the operating mode of the door.
Depending on your preferences, it is possible to use the mechanical key selector EV-MSEL or the digital selector ET-DSEL.
Each program selector is fully described below.

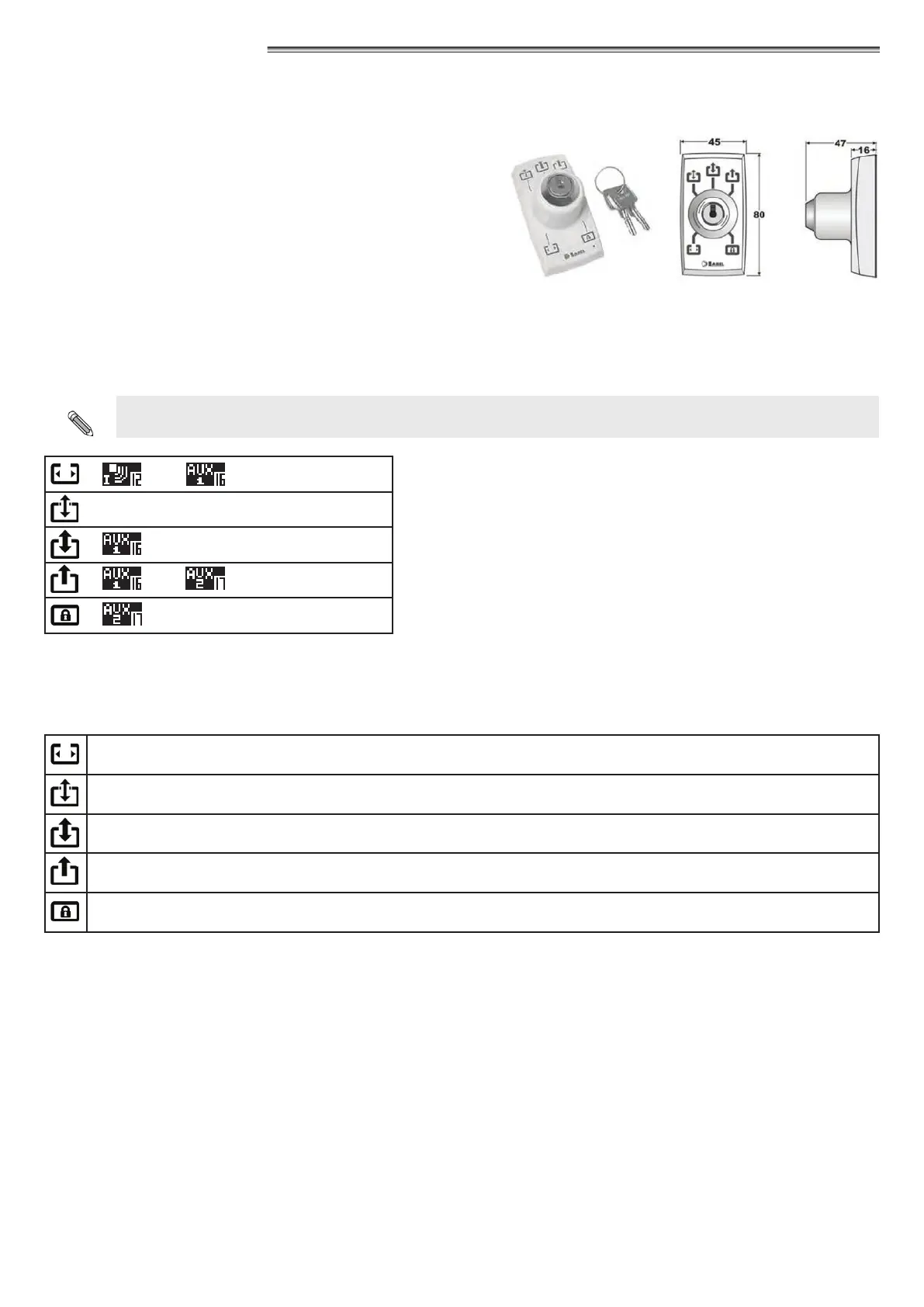

18.1) MECHANICAL KEY SELECTOR EV-MSEL
The operation of the 5‑position mechanical key selector must be
enabled by setting the F01 function to ON on the digital selector
ET‑DSEL.
ELECTRIC CONNECTIONS
•
Terminal 1 of EV‑MSEL= to terminal 12 (Internal radar) of the control unit of the automation ETERNA 150.
•
Terminal 2 of EV‑MSEL= to terminal 19 (Common) of the control unit of the automation ETERNA 150.
•
Terminal 3 of EV‑MSEL= to terminal 16 (AUX 1) of the control unit of the automation ETERNA 150.
•
Terminal 4 of EV‑MSEL= to terminal 17 (AUX 2) of the control unit of the automation ETERNA 150.
For any check on proper connection and operation of the key mechanical selector, enter inputs diagnostics (see par. 14.5)
to ensure that dierent key positions correspond to the activation of the following symbols:
= and
= no active symbol
=
= and
=
OPERATING MODE
Insert and turn the key of the selector EV-MSEL to select the desired program.
Open door program
The door remains motionless in the position of complete opening.
Winter reduced opening program
To open the door partially
Automatic bidirectional program
The door automatically opens after an opening command.
Automatic unidirectional exit only program
To disable entry detection on external Radar input.
Night lock program
The door can only be opened by the OPEN input or by radio control if the EN/RF1 radio receiver is installed.
The key can be taken out of the selector when in any position in order to prevent undesired changes to the work program.
MANUAL FREE DOOR PROGRAM
The manual free door program can be selected by means of the EV-MSEL selector to disable automatic door automatic operation and to
allow the manual actuation of the leaves.
To enable the MANUAL FREE DOOR program in the desired position of the EV-MSEL mechanical selector, operate the multiple function
F36m on the digital selector ET-DSEL (see para. "FUNCTION SETTINGS").
