31) SPECIAL FUNCTIONS WITH DUAL ELECTRIC LOCK
31.1) PHARMACY FUNCTION
On the automation ETERNA 150 you can install a dedicated second electric lock, for pharmacy opening; it is an electric lock version
specially designed for pharmacy function.
This type of electric lock must be connected to the LOCK 2 output (J3 connector) of the control unit ET‑LOGIC‑B, and only works if the
control unit is congured with the F03 function set to OFF (Fail secure type electric lock) and with the F04 function set to ON (pharmacy
function enabled).

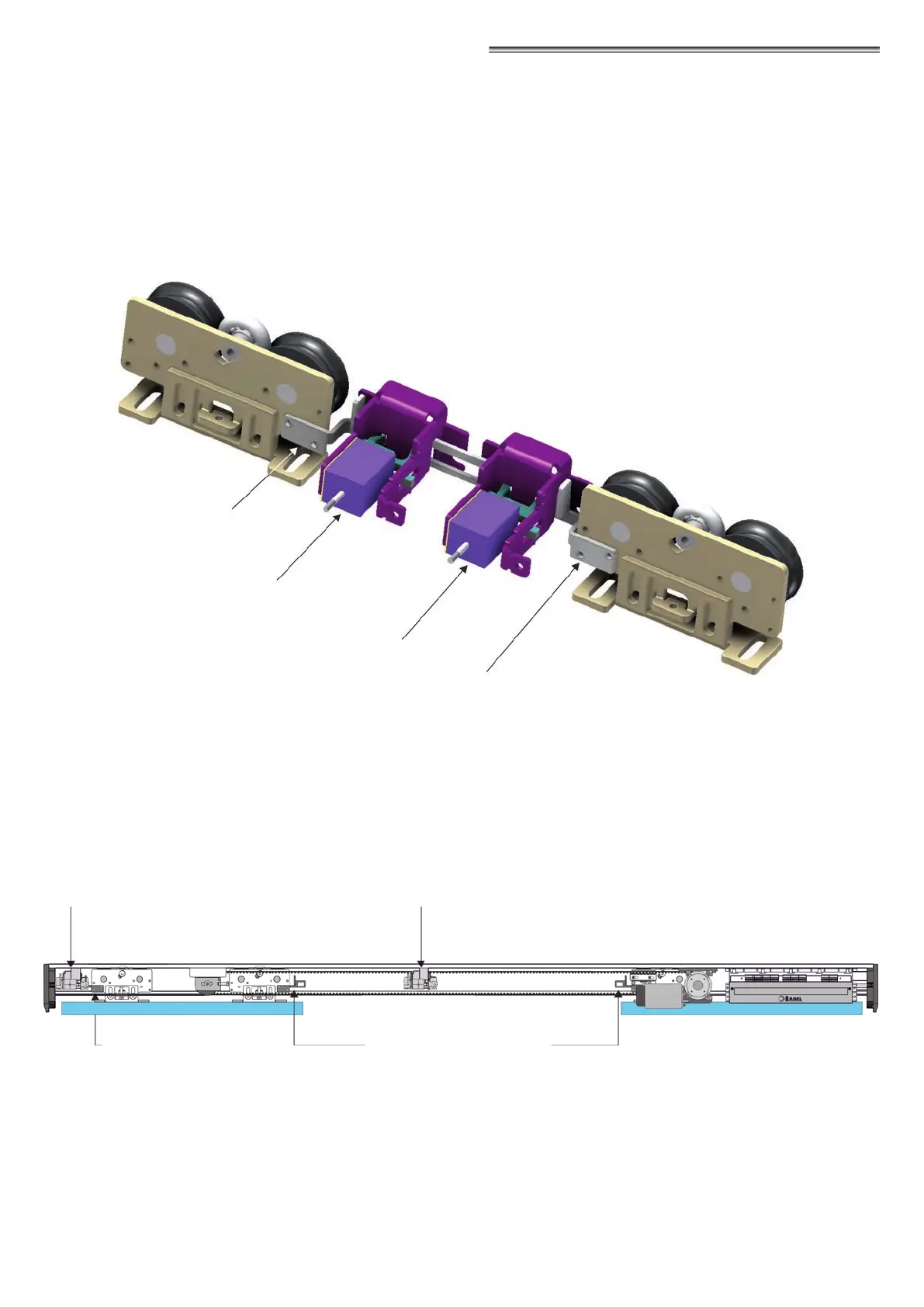

The gure below shows the position of the two electric locks in the automation ETERNA 150; in the pharmacy electric lock kit you can
nd the assembly instructions.
To activate the pharmacy function, press the button F2 on the digital selector ET-DSEL from the main screen of the work program (F2
on).
Whenever an opening command is issued the door will open only by a few centimetres; the pharmacy opening distance is set through
the parameter P23 on the selector ET-DSEL and must not exceed the length of the slot existing in the pharmacy electric lock bracket.
When the door is open, the leaf cannot be further opened manually because the pharmacy electric lock Lock 2 prevents the leaf from
moving.
To disable the pharmacy function and allow the door to fully open, press the F2 button again on the digital selector ET-DSEL (F2 o).
31.2) ANTI-ROLL FUNCTION FOR BOATS
The function provides the installation of two electric locks of type FAILSECURE, one in closure connected to the output LOCK1, and one
in opening connected to the output LOCK2.
When the door is closed, the electric lock in closure lowers to keep the leaves locked.
When the door is open, in the work program «OPEN DOORS», the electric lock in opening lowers to keep the leaves locked, avoiding
the roll eect in case of boat roll.
To activate the function, set the parameter P26 = 01%.
To increase the holding force with door open in case of signicant roll, increase the value of P26.
With P26 value 0% the function is disabled
STAFFA STANDARD
ELETTROBLOCCO LOCK1
NORMAL LOCK STAINLESS
STEEL PLATE
ELETTROBLOCCO PRINCIPALE LOCK1
FAIL SECURE LOCK1
EV-EBSFSE
ELETTROBLOCCO FARMACIA LOCK2
PHARMACY LOCK2
EV-EBSPHA
STAFFA ELETTROBLOCCO FARMACIA
PHARMACY LOCK STAINLESS STEEL PLATE
OPENING ELECTRIC LOCK (LOCK2)
PLATE TO ENGAGE OPENING
ELECTRIC LOCK
PLATE TO ENGAGE CLOSING
ELECTRIC LOCK
CLOSING ELECTRIC LOCK (LOCK1)
