Connect the battery to the connector J5 of the control unit ET‑LOGIC‑B.
Insert the battery charger card ET-BAT in connector J12 of the control unit ET-LOGIC-B.
To enable operation with battery, set the function F06 = ON, or set S04 = ON from the initial setup.
The battery charger automatically checks the battery charge level and displays a green and a red led (see table "LED SIGNALLING")
Operation
The device ET-BAT150 is enabled in case of mains power failure, allowing the automation ETERNA 150 to operate.
Battery life depends on various factors, on the number of manoeuvres carried out, on the weight of the leaf, on the external devices
connected, etc.
The charged battery can supply energy for approximately 10 continuous door opening/closing cycles.
IMPORTANT!
BATTERY TYPE: NiMH, 18V - 700mAh
LED SIGNALLING
SIGNALLED EVENTS GREEN LED DL7 RED LED DL6
BATTERY DISCONNECTED ON ON
BATTERY CHARGING BLINKING OFF
BATTERY CHARGED WITH MAINS VOLTAGE ON OFF
BATTERY LOW OFF BLINKING
BATTERY CHARGED WITHOUT MAINS VOLTAGE OFF ON
WARNING
•
Periodically check battery eciency
•
To allow recharging, the batteries must always be connected to the
electronic control unit
•
The equipment must be disconnected from the mains when
removing the batteries
•
In case of replacement, always use genuine batteries
•
Replacement must be performed by qualied personnel
•
Remove batteries from the equipment before its disposal
•
Batteries contain polluting substances; therefore they must be
disposed of in accordance with the provisions of local regulations
BATTERY
18V
BATTERY
CHARGER
ET-BAT
to connector J12 of the control unit ET-LOGIC-B
BATTERY

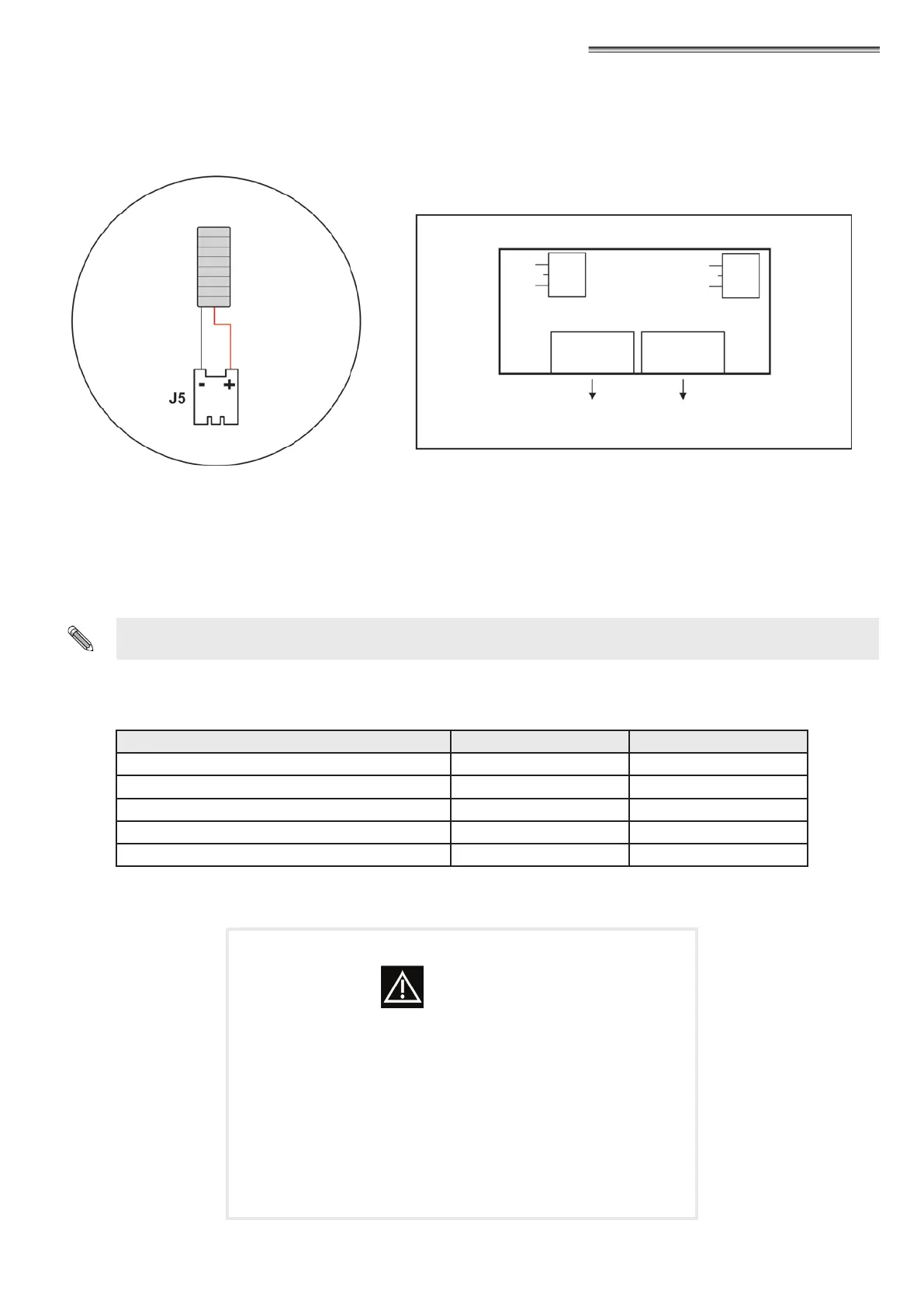

15) BATTERY-POWERED EMERGENCY OPENING DEVICE ET-BAT150
