Label ETERNA 150 - Electronics; 11 Electric Arrangements

22
ELECTRONICS

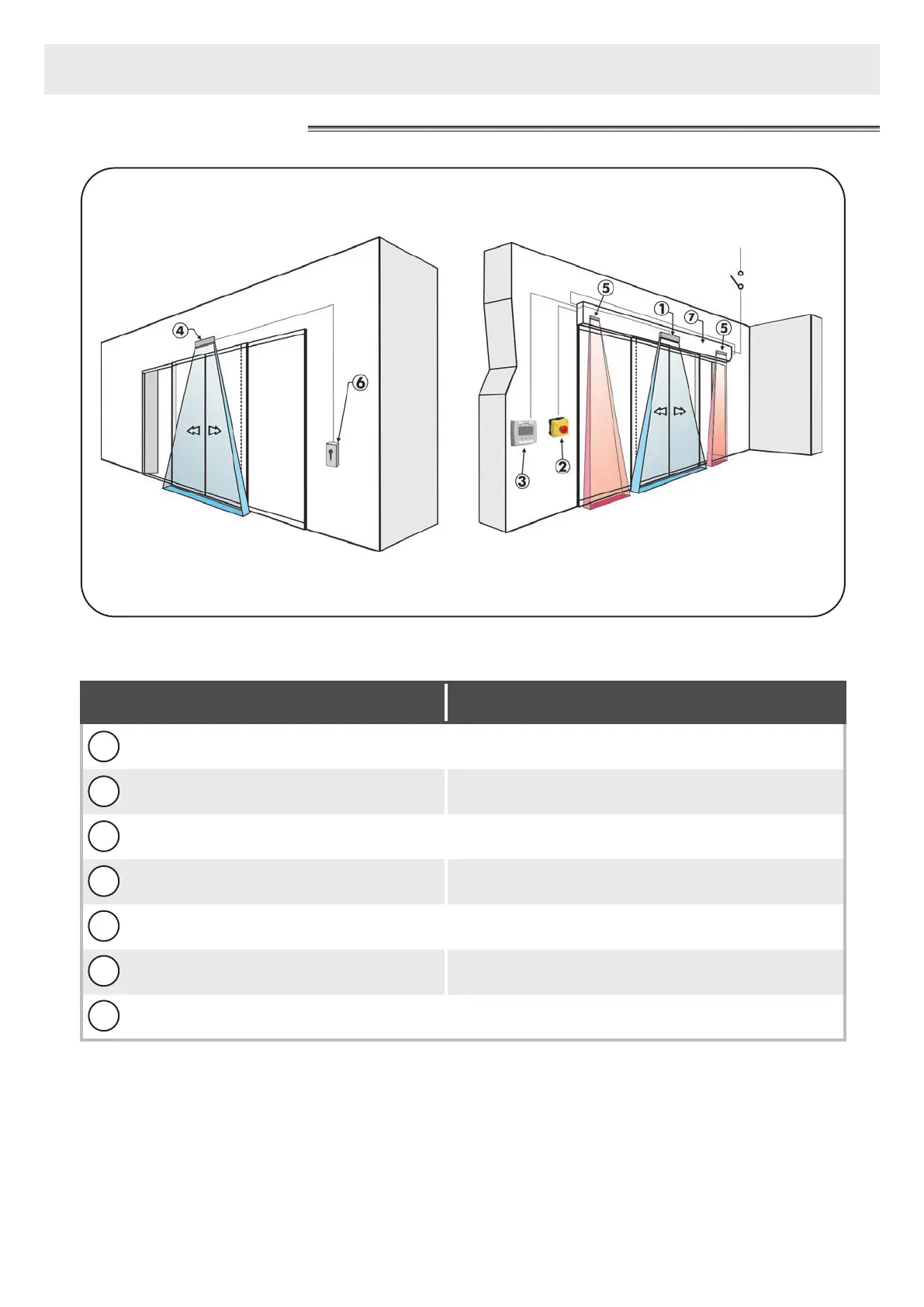

11) ELECTRIC ARRANGEMENTS
OUTER SIDE INNER SIDE
AUTOMATION POWER
SUPPLY
230V~
DESCRIPTION OF ACCESSORIES CORRESPONDING CABLE
Internal movement and presence sensor for
door opening and safety during closing
No. 1 CABLE 8 X 0.5 mm
Emergency opening button No. 1 CABLE 2 X 0.5 mm
Digital selector No. 1 CABLE 4 X 0.33 mm (twisted pair for RS485)
External movement and presence sensor for
door opening and safety during closing
No. 1 CABLE 8 X 0.5 mm
Opening safety sensor No. 1 CABLE 6 X 0.5 mm
Key button No. 1 CABLE 2 X 0.5 mm
ETERNA 150 automation No. 1 CABLE 3 X 1.5 mm (F-N-T)







