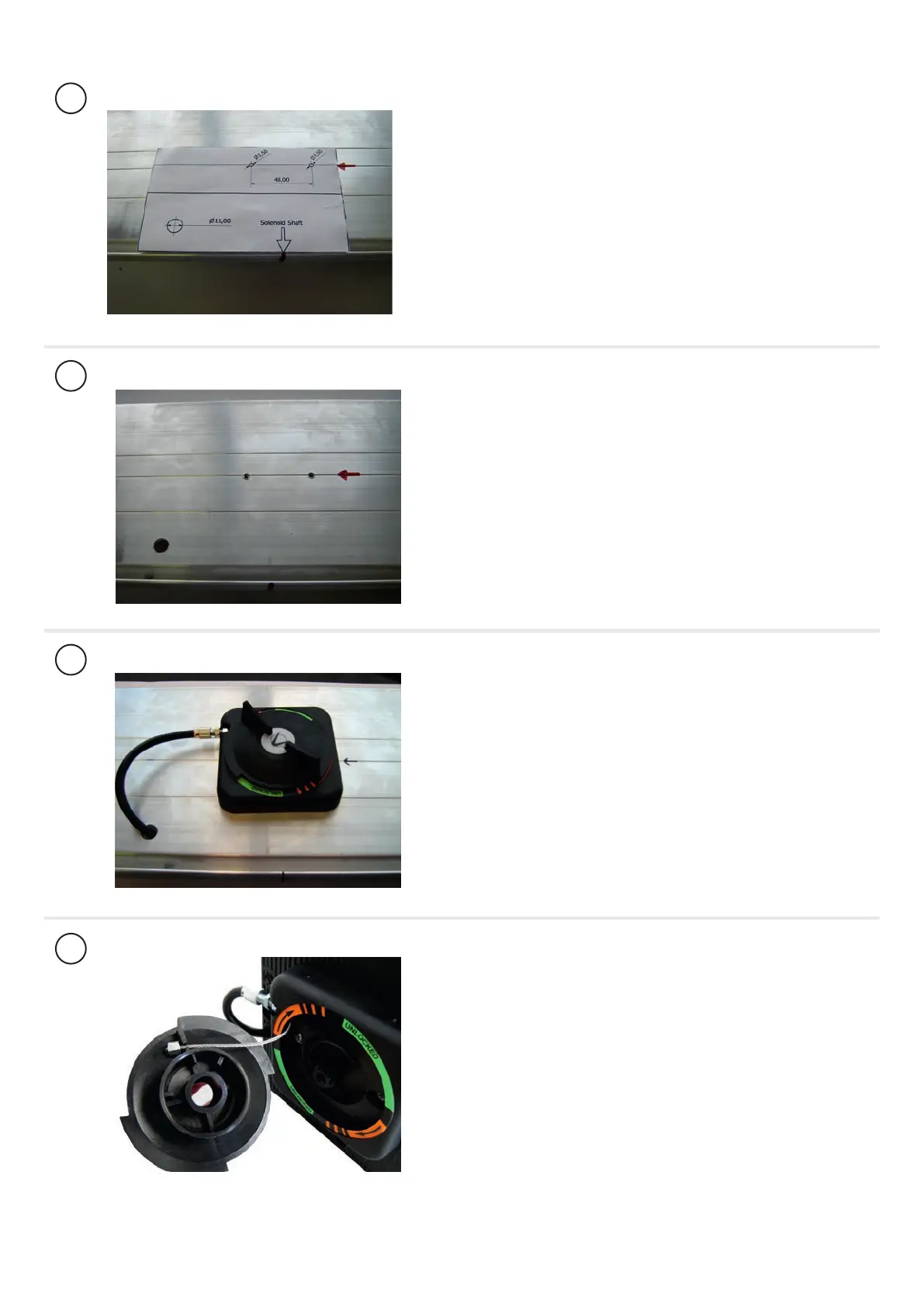

Put the drilling template into place, aligning it with the reference
marks at the top of the transom.
Align the template with the centre of the solenoid axle.
Drill a hole into the transom as indicated on the template.
Fix the release knob bottom using the supplied screws.
Insert the 250mm sheath.
Apply the adhesive label as shown in the gure, taking as a
reference the four black bands on the label that must be positioned
in correspondence of the 4 cardinal points.
Insert the steel cable end into the release handle as shown in the
gure and fasten the handle to the bottom with the special screw.
10.5) INSTALLATION OF THE MANUAL RELEASE OVER THE TRANSOM
