12) ELECTRIC CONNECTIONS

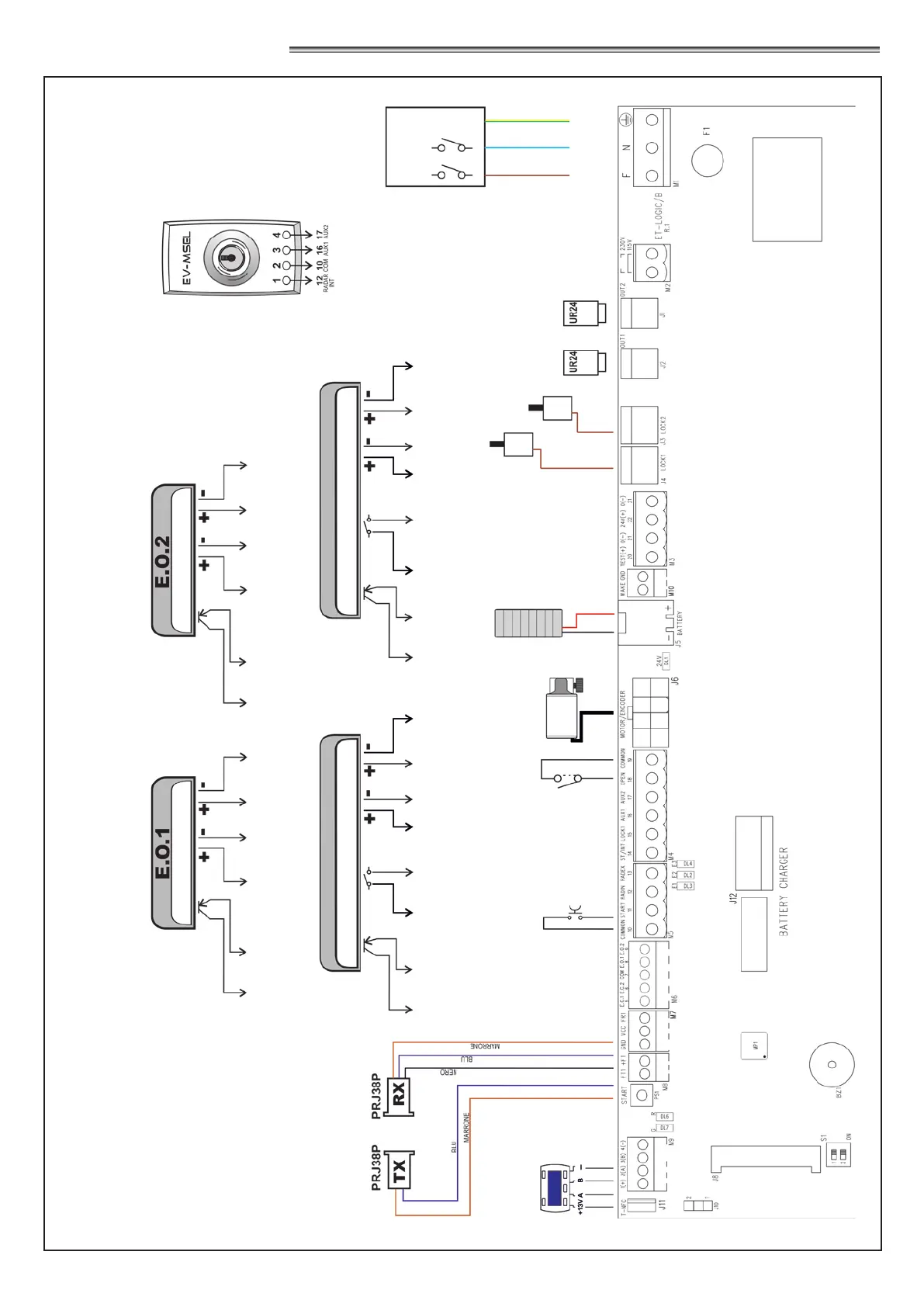

ETERNA 150 ELECTRICAL CONNECTIONS
Opening safety sensors
MOTOR WITH
ENCODER
DIGITAL SELECTOR
ET-DSEL
18V BATTERY
LIVE
EARTH
NEUTRAL
1st SOLENOID FAIL SAFE FAIL SECURE BISTABLE ELECTRIC LOCK
2nd SOLENOID BISTABLE ELECTRIC LOCK
MAINS POWER
SUPPLY
230Vac
SAFETY
SAFETY
INTERNAL SENSOR
FOR ACTIVATION AND SAFETY DURING CLOSING E.C.1
EXTERNAL SENSOR
FOR ACTIVATION AND SAFETY DURING CLOSING E.C.2
SAFETY
SAFETYACTIVATION ACTIVATION
POWER SUPPLY
POWER SUPPLY POWER SUPPLY
POWER SUPPLY
TEST
TEST TEST
TEST
8
E.0.1
5
E.C.1
6
E.C.2
9
E.0.2
7
COMMON
7
COMMON
7
COMMON
7
COMMON
22
24V(+)
10
COMMON
10
COMMON
12
RADAR IN.
13
EXT. RADAR
22
24V(+)
22
24V(+)
22
24V(+)
20
TEST(+)
20
TEST(+)
20
TEST(+)
20
TEST(+)
21
0(‑)
21
0(‑)
21
0(‑)
21
0(‑)
21
0(‑)
21
0(‑)
21
0(‑)
21
0(‑)
