28
14) COMMISSIONING OF THE AUTOMATION (INITIAL SETUP)
After you have completed the mechanical installation of the automatic door and carried out the electrical connections of the electronic
control unit, you can start up the automation.
•
Preliminary checks
- check the cleanliness of the sliding rail and of the ground guide;
- check belt tightness;
- check that leaves are properly aligned and fastened to the trolleys;
‑ check that the position of the mechanical limit device is correct;
‑ check that leaves move smoothly and frictionless;
‑ check for proper operation of the electric lock, if installed, and of the relevant manual release.
SET-UP operation is compulsory to allow the automation electronic control unit getting run limit positions.
During the run learning cycle there must be no obstacles in the leaf movement area.
If the digital selector ET-DSEL is used to manage a single automatic door ETERNA 150, switches 1 and 2 of the dip-switch S3 on the
control unit of the automation ET‑LOGIC‑B must be set to OFF.
If the digital selector ET-DSEL is used to manage two automatic doors ETERNA 150, switches 1 and 2 of the dip-switch S1 on the control
unit ET‑LOGIC‑B of automation 1 must be set to OFF, while on the control unit ET‑LOGIC‑B of automation 2, switch 1 must be set to ON
and switch 2 to OFF (see Table).
S1 DIP 1
ET-LOGIC-B AUTOMATION 1 OFF
ET-LOGIC-B AUTOMATION 2 ON
Follow chapter 14.1 only if the digital selector ET-DSEL is new and is powered on for the rst time.
Follow chapter 14.2 if the digital selector has already been used before.

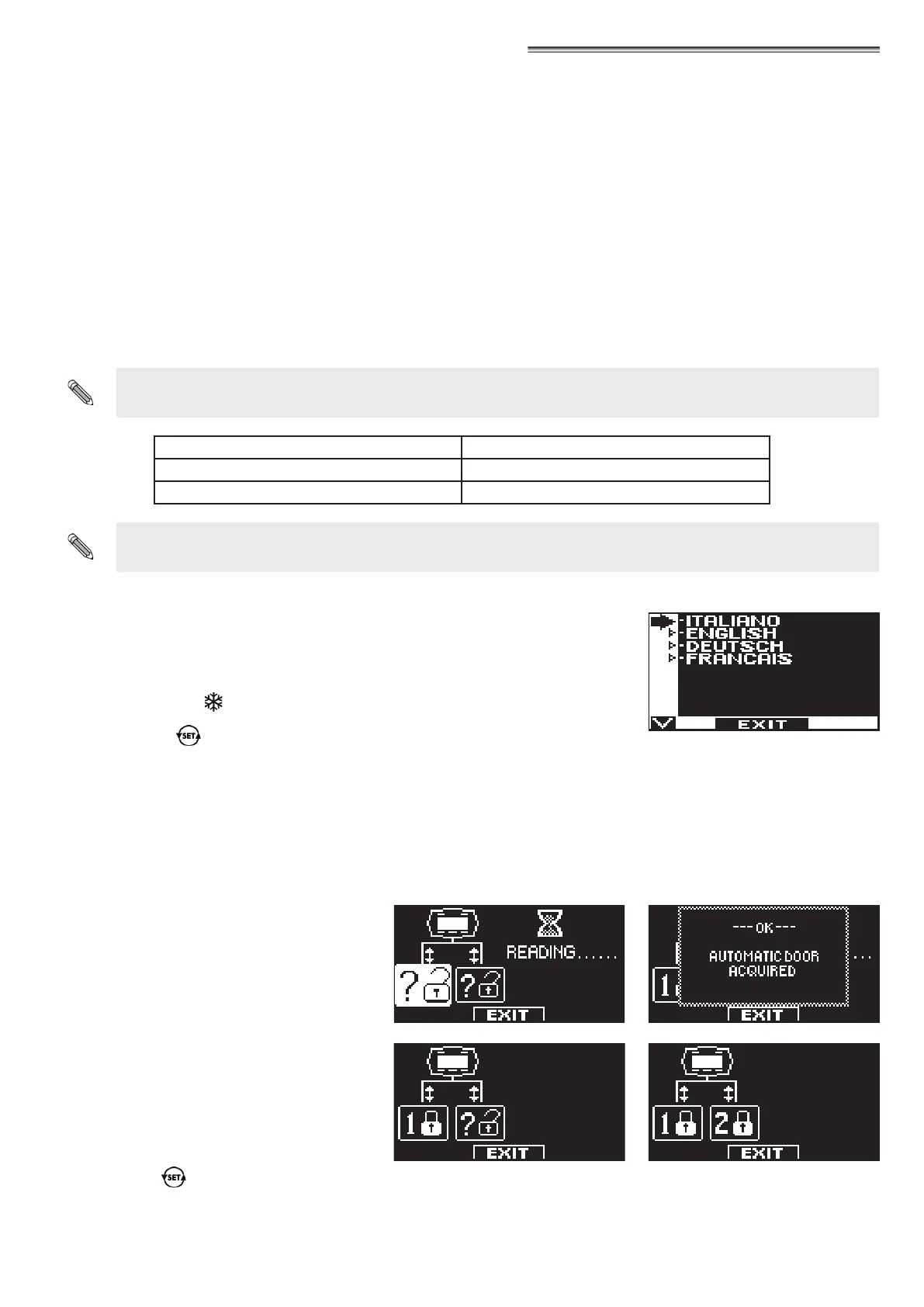

14.1) FIRST START OF THE DIGITAL SELECTOR ET-DSEL
Power the automation ETERNA 150 by mains voltage; the control unit buzzer emits a few
quick, short beeps.
•
Language selection is shown on the display of the digital selector ET-DSEL;
•
use the buttons F2 and
to move the arrow in correspondence with the language desired.
•
Press the EXIT button to exit the “Language” section and enter the “Serial
communication settings” section, as described under para. 14.2.
14.2) SERIAL COMMUNICATION SETTINGS
The selector ET‑DSEL automatically detects the
presence of the automation electronic control unit
(g. A) and stores the L-NEXT board serial code (g.
B).
When the acquisition of the serial code is completed,
the display must show the closed padlock symbol
on number 1 and the open padlock symbol on the
symbol ?, if a single ETERNA 150 automation is
connected (g. C).
If the digital selector ET-DSEL is connected to two
ETERNA 150 automations to manage two automatic
doors, instead, once serial code acquisition is
completed, the closed padlock symbol must be
displayed on number 1 and on number 2 (g. D)
Press the EXIT button to exit the “Serial
communication setup” section and enter the general
programming menu.
