64
32) PRIVACY FUNCTION
The privacy function is used for environments where people must be able to close the door from the inside, like toilets, private rooms,
meeting rooms.
To prevent any contact between the user and the door, the following accessories need to be connected to the ETERNA automation:
A no. 1 touch button or radar allowing the door to be opened from the outside.
B no. 1 touch button allowing the door to be locked and opened from the inside.
C no. 1 Fail Safe electric lock.
D no. 2 red/green lights signalling that the door is unlocked / locked, on the inside and on the outside. Connect the signaling lights in
parallel.
E no. 1 UR24/E board for signaling light control.
F no. 1 N.C. emergency button for electric lock disabling from inside.
G no. 1 ON/OFF key selector to disable the electric lock in case of emergency.

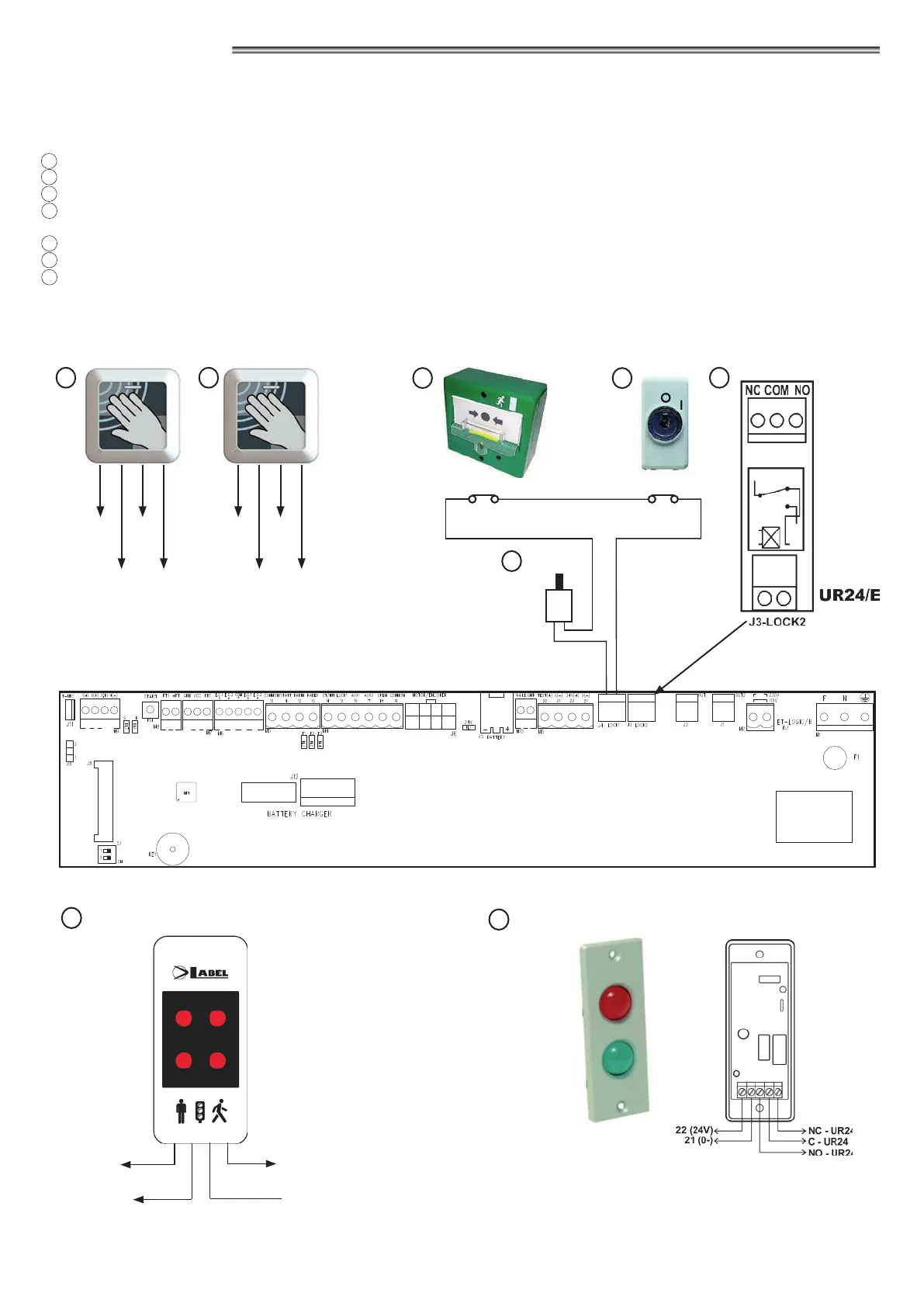

32.1) ELECTRIC CONNECTIONS
22
24V(+)
21
0(-)
13
RAD.
EX
10
COMMON
T-LED SIGNALING LIGHT SIGNALING LIGHT V00175
D
D
22
24V(+)
21
0(-)
16
AUX1
10
COMMON
22 (24V+)
BLACK
WHITE
NC-UR24
(GREEN LIGHT)
DO NOT CONNECT
(BLUE LIGHT)
BLUE
BROWN
NO - UR24
(RED LIGHT)
A B E
F
G
C
To Next Page
