32.2) OPERATION OF THE PRIVACY SYSTEM

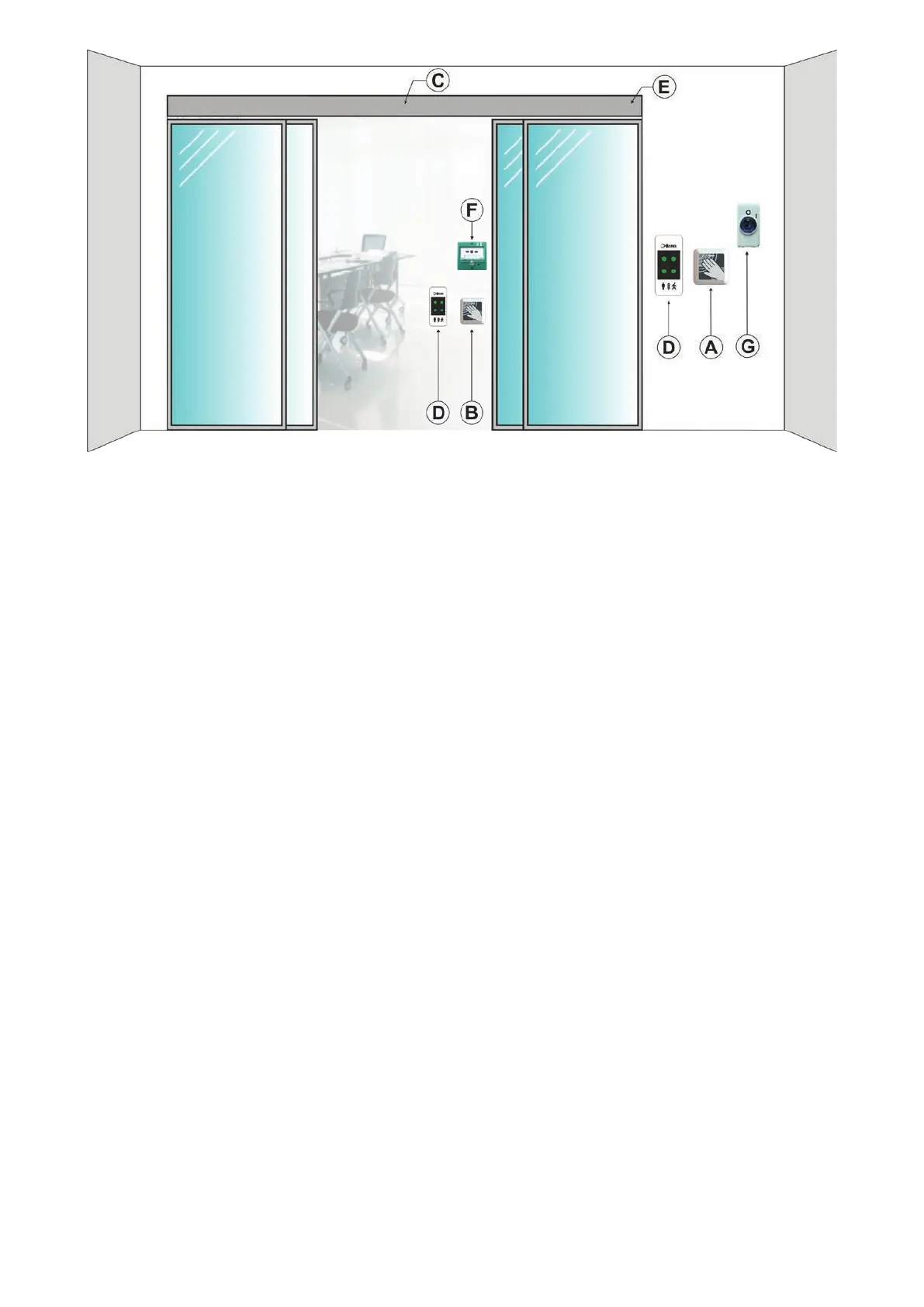

• To enable the privacy function, set function F73 = ON using the digital selector.
• The automatic door is normally unlocked when there is nobody in the room and the signaling light (D) is green.
• Actuating the external side touch button or radar (A), the door runs the opening cycle, allowing the user to enter.
• Once the pause time has expired, the door closes automatically and waits to be locked.
• Within the time set in advance through the potentiometer P34, the user must activate the inside touch button (B) only once, to
energise the door closing electromagnet (C).
The signaling light then turns red and the door cannot be opened through the outside button.
• To open the door and leave the room, the user must activate the internal side touch button (B); the electric lock (C) is disabled, the
door opens and the signaling light (D) switches back to green.
In case of emergency it is possible to disable the door closure electric lock (C) actuating the internal emergency button (F) or the external
key selector (G).
The door is unlocked and can be opened manually.
32.3) SETTINGS
•
FUNCTION F73
OFF: Privacy function disabled
ON: Privacy function enabled
•
FUNCTION F75
OFF: The signaling light (D) is steadily green while the door is moving and waiting for the door lock command.
ON: The signaling light (D) alternately switches between red and green; it ashes slowly while the door is moving, and fast when the
door is waiting for the door lock command.
When the door is closed the light is always steadily red.
•
POTENTIOMETER P34
It allows you to adjust the time within which the user can issue the lock command from the inside once the door has closed.
If the value is "0" time is innite, so the lock command can always be issued from the internal touch button.
Values ranging between "1" and "100" will set a time ranging between 1 and 100 seconds (factory setting = 10 seconds).
Once this time has expired, if the electromagnet is not locked, activating the touch button causes the door to open.
•
P35 POTENTIOMETER
It allows you to set the time after which the electric lock is automatically released after the door has been locked from the inside.
If the value is "0" (factory setting) time is innite, so the electric lock remains locked until the user actuates the internal button to exit.
Values ranging between "1" and "100" will set a time ranging between 1 and 100 minutes.
Once this time has expired the signalling light ashes, alternately switching between red and green, to warn the user that within 3
minutes the door will be unlocked.
