21
E
F
G
H

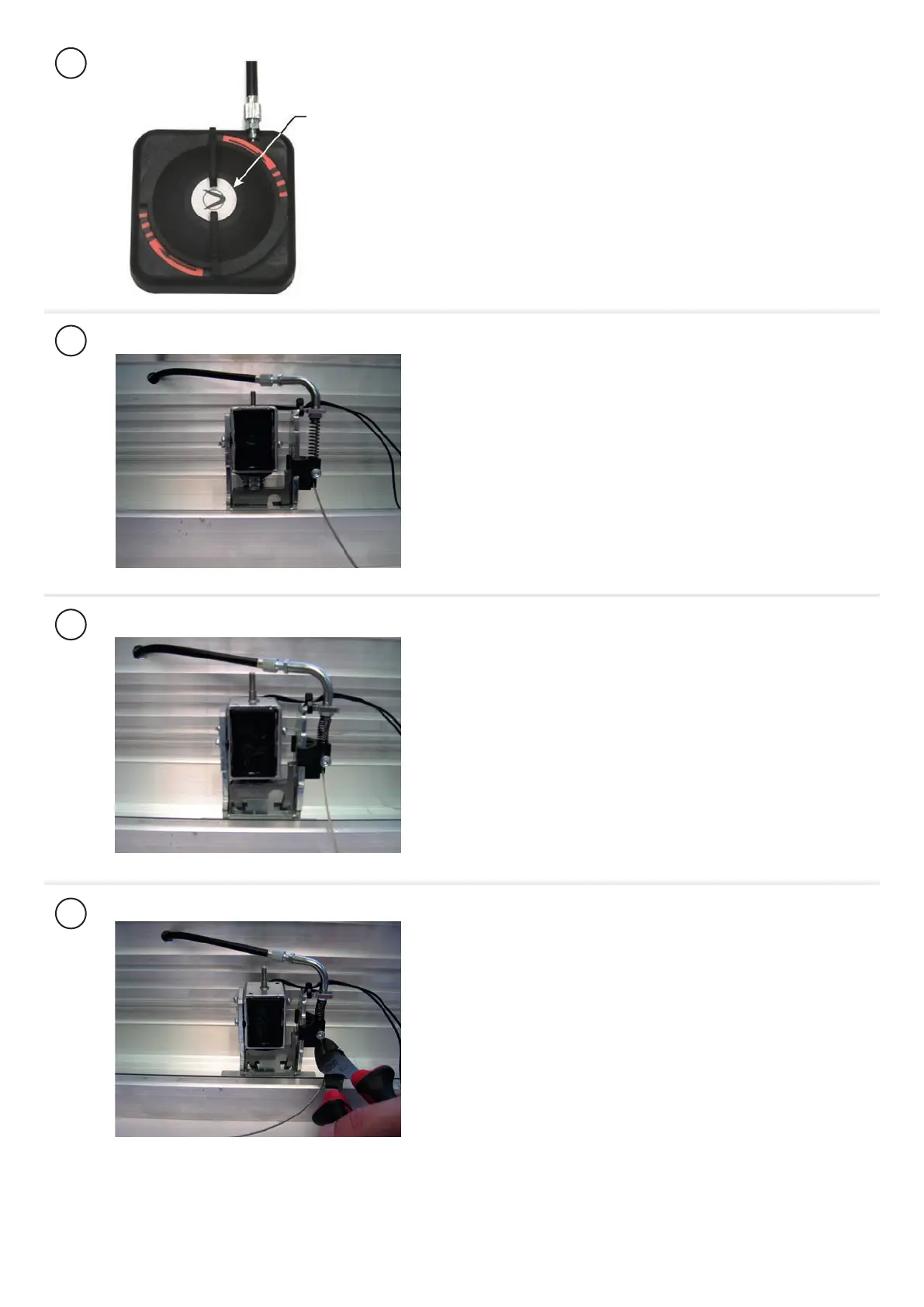

Apply the screw cover label on the setscrew.
By moving the release handle to UNRELEASED position, only the
orange part of the label with the black arrows must be visible.
Position the compression spring and insert the metal cable inside
the special release anchor, then lock it with the screw clamp.
Adjust cable tightening so as to give the spring a light pre-load.
SCREW COVER
LABEL
Check manual release operation, when the handle is in locked
position, the electric lock must operate normally.
When the handle is in released position, the electric lock must
remain open and release the leaves.
Cut the excess cable from the release anchor.
