Label ETERNA 150 User Manual

13

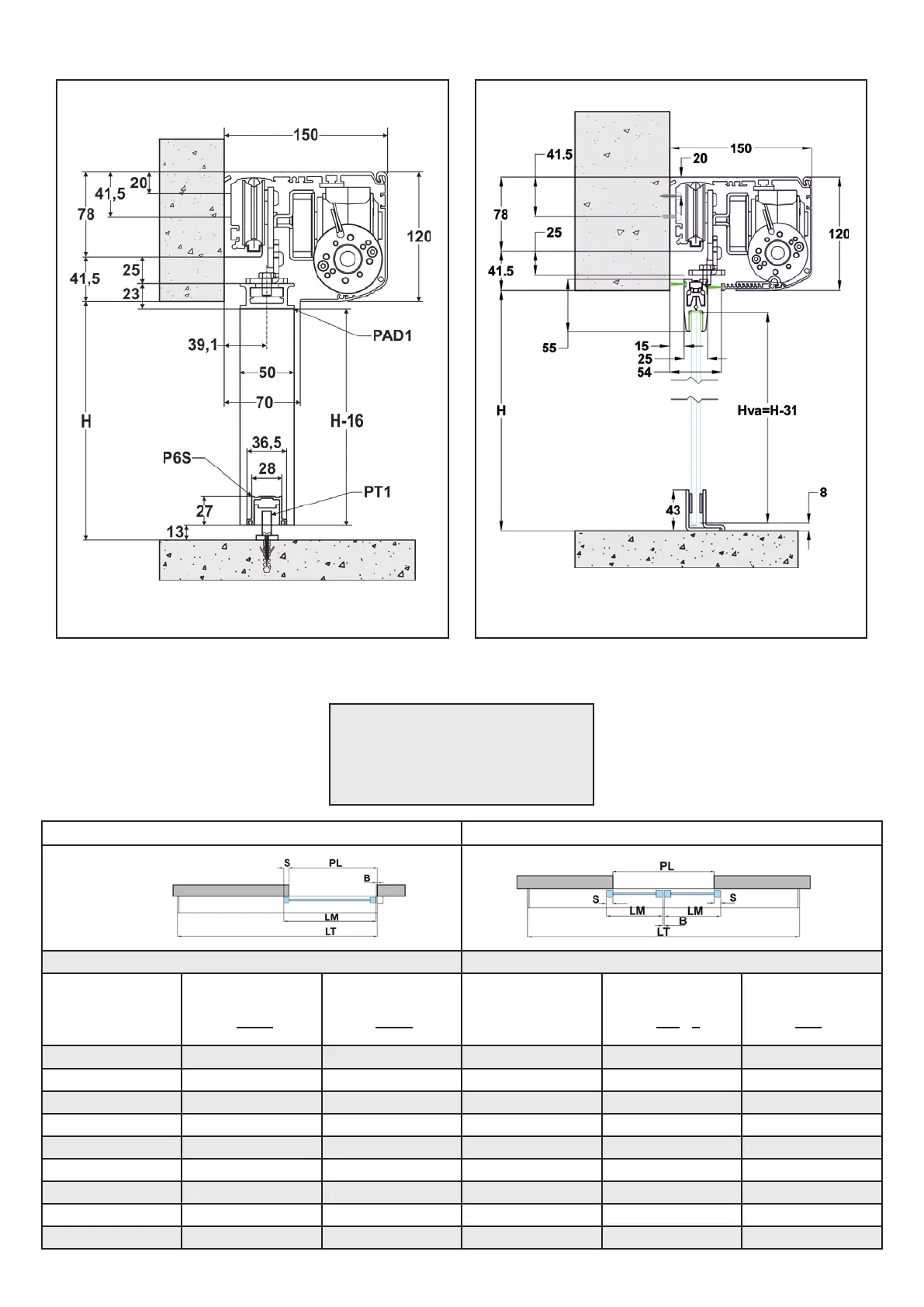

SECTION WITH COMMERCIAL PROFILES SECTION WITH FRAMELESS COUPLING
DIMENSIONAL TABLE FOR ETERNA 150 AUTOMATIONS
LEGEND:
PL = FREE PASSAGE
LT = AUTOMATION LENGTH
LM = LEAF WIDTH
H = PASSAGE OPENING HEIGHT
ETERNA 150S - 1 MOBILE LEAF ETERNA 150D - 2 MOBILE LEAVES
Sizing mm Sizing mm
LT= automation length
LT=2PL-B+S+24
LM= leaf S= overlap
B= contact with
S=50 B=10
LM = LT-B+S - 12
2
PL = nominal passage
opening
PL = LT+B-S - 12
2
LT= automation length
LT=2PL-B+2S+24
LM= leaf S= overlap
B= contact with
S = 50 B = 10
LM = LT-B + S - 6
4 2
PL = nominal passage
opening
PL = LT+B - S - 6
2
2000 1008 968 2000 516.5 949
2500 1258 1218 2500 641.5 1199
3000 1508 1468 3000 766.5 1449
3500 1758 1718 3500 891.5 1699
4000 2008 1968 4000 1016.5 1949
4500 2258 2218 4500 1141.5 2199
5000 2508 2468 5000 1266.5 2449
5500 2758 2718 5500 1391.5 2699
6000 3008 2968 6000 1516.5 2949
