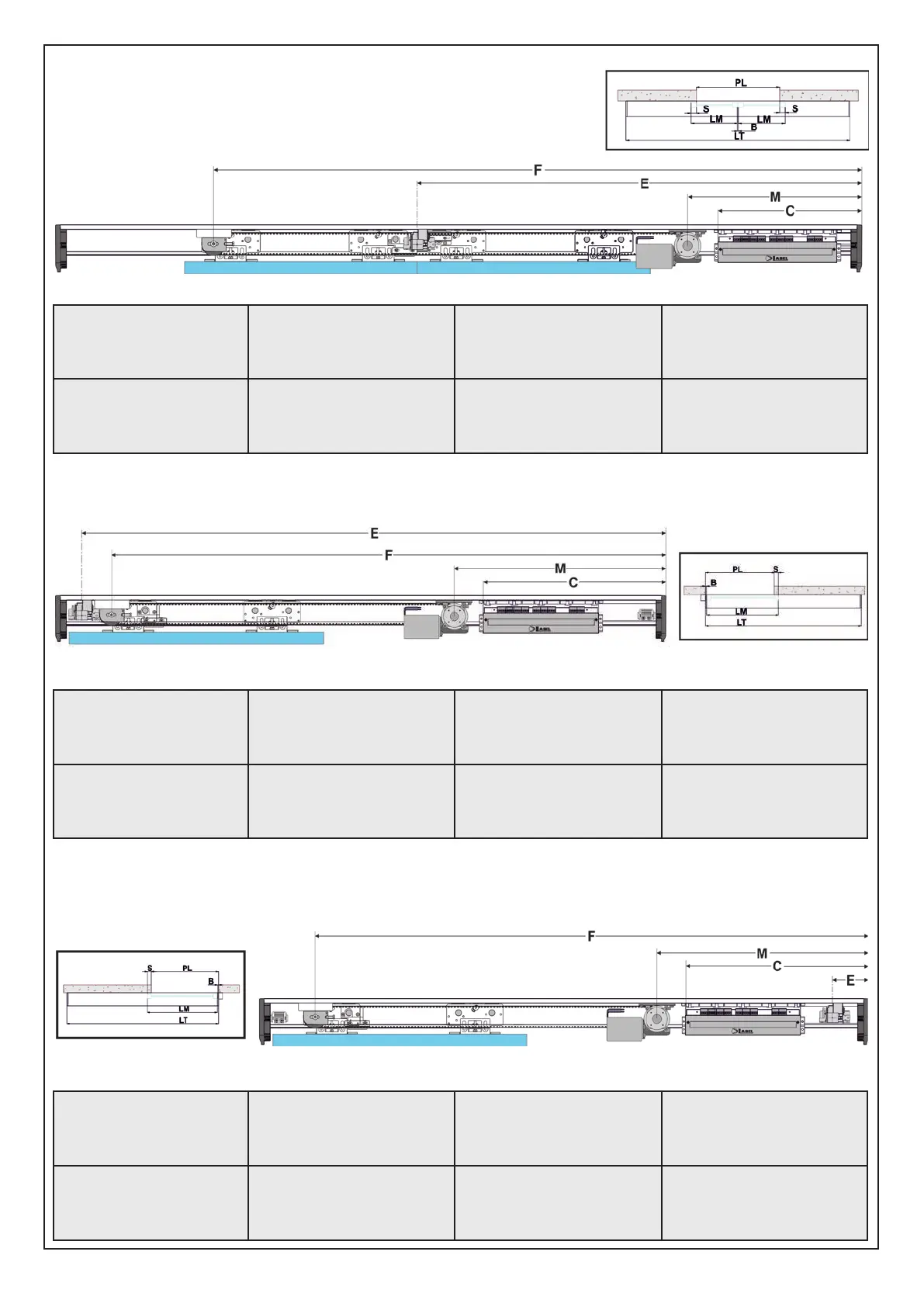

DOUBLE LEAF WITH ELECTRIC LOCK
LT = TRANSOM LENGTH
LT = 2PL‑B+2S+24
PL = FREE PASSAGE
PL = (LT+B)/2‑S‑6
LM = LEAF WIDTH
LM = (LT‑B)/4+S/2‑6
F = IDLE PULLEY
T*3/4+100
M = MOTOR
400mm
C = CONTROL UNIT
345mm
E = ELECTRIC LOCK
T/2 + 5mm
LC = BELT LENGTH
LC = (F-M+120)x2
SINGLE RH LEAF WITH ELECTRIC LOCK
LT = TRANSOM LENGTH
LT = 2PL‑B+S+24
PL = FREE PASSAGE
PL = (LT+B‑S)/2‑12
LM = LEAF WIDTH
LM = (LT‑B+S)/2‑12
F = IDLE PULLEY
LT‑212
M = MOTOR
LT‑LM‑467
C = CONTROL UNIT
LT‑LM‑522
E = ELECTRIC LOCK
LT‑62
LC = BELT LENGTH
LC = (F-M+120)x2
SINGLE LH LEAF WITH ELECTRIC LOCK
LT = TRANSOM LENGTH
LT = 2PL‑B+S+24
PL = FREE PASSAGE
PL = (LT+B‑S)/2‑12
LM = LEAF WIDTH
LM = (LT‑B+S)/2‑12
F = IDLE PULLEY
LT‑87
M = MOTOR
LT‑LM‑342
C = CONTROL UNIT
LT‑LM‑397
E = ELECTRIC LOCK
75
LC = BELT LENGTH
LC = (F-M+120)x2
