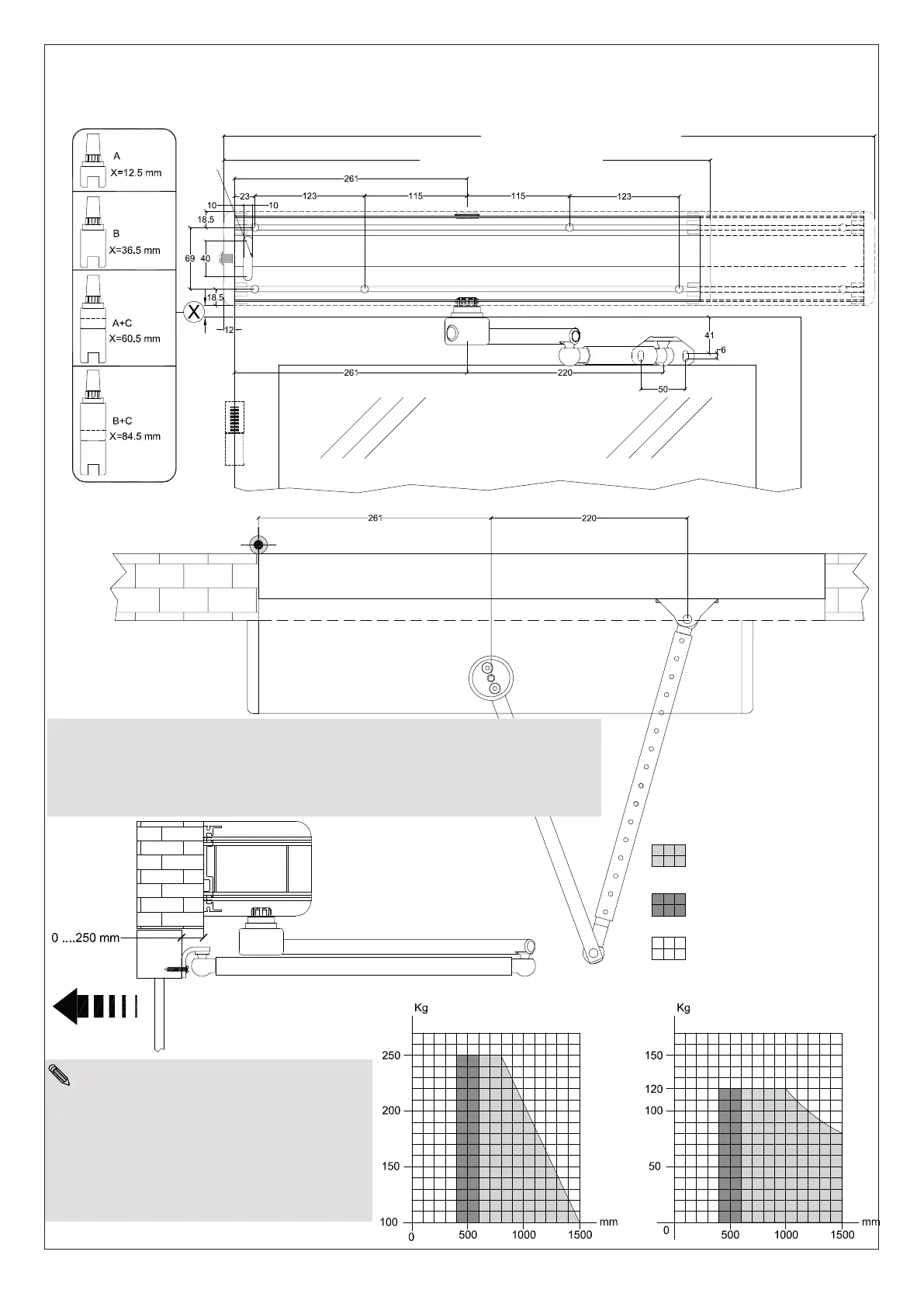

5.4) ASSEMBLY OF THE AUTOMATION ON THE TRANSOM FROM THE SIDE OPPOSITE TO THE HINGE
ARTICULATED PUSH ARM BSS2
For doors opening outward (as seen from the automation side)
ONLY FOR SPRING MODELS
NB-LET / LETB / SLT / SLTB
For this application, please consider that the
PWB cabling board must be on the hinged side of
the door for a correct movement direction when
opening.
It is necessary to install a mechanical stop in open
door position
A = STANDARD TAPERED PIN
Should it be necessary to increase the distance between the automation and the arm
(dimension X), replace the standard tapered pin with the following optional extensions:
B = EXTB-Z TAPERED PIN (optional) for mm. 24 shaft extension
C = EXTC-Z EXTENSION (optional) for TAPERED PIN for mm. 48 shaft extension
CABLE
PASSAGE
SLOT
OPENING
DIRECTION
Automation with battery module
Standard Automation
NB-SLT/SLTB/SMT/SMTB CHART NB-LET/LETB CHART
Usable leaf length and weight
Usable leaf length and weight with di󰀨erent
fastening dimensions
Installation drawings available upon request
Unusable leaf length and weight
To Next Page
