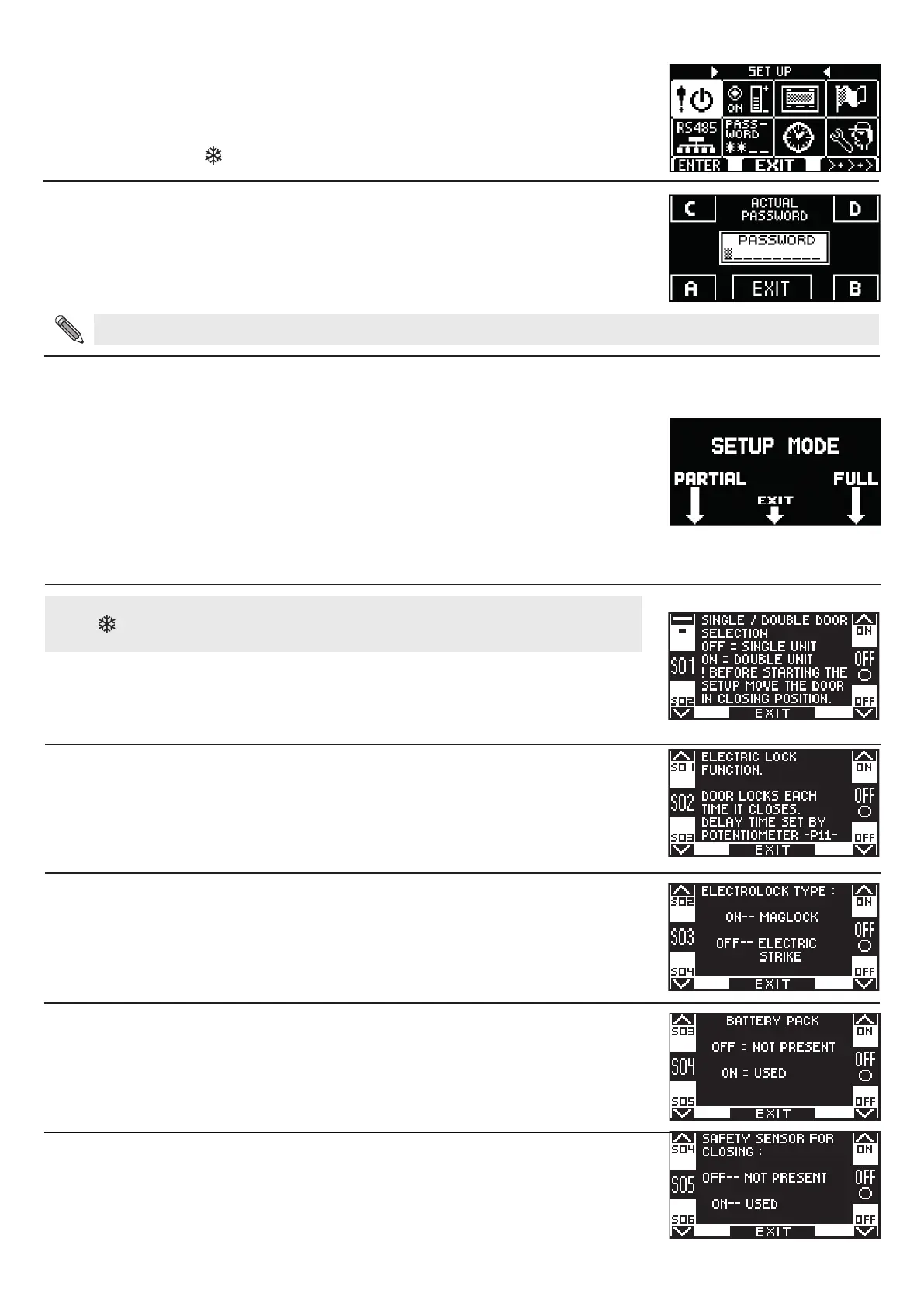

In this section, the buttons F1 / F3 allow selecting the function OFF/ON status, while the
button
allows moving to the following function.
Press the button F2 to return to the previous function.
Select the door type:
single leaf OFF, or dual leaf ON (in the latter case refer to the paragraph “Dual leaf swing door”).
Enter the 10-character technical password to access setup.
The default technical password set by Label for the digital selector ET-DSEL is “A-A-A-A-A-A-A-
A-A-A”
Press the button in correspondence with letter A, an asterisk appears on the position of the rst
letter; repeat this operation for all the other characters required.
If the password you entered is correct, you enter the conguration section of the setup; if the
password you entered is incorrect, you are returned to the general programming menu.
It is advisable to change the technical default password. See paragraph “Password Management”.
16.3) INITIAL SETUP
From the general programming menu, the F1 button allows moving forward among menu
symbols.
Select the INITIAL SETUP symbol.
Press quickly the ENTER
button to enter the “INITIAL SETUP” section.
Only if function S02 was set to ON.
If there is an electric lock, select its type:
Pulse OFF (electric lock or electric strike) or permanent ON (electromagnet).
BATTERY PACK
OFF = NOT PRESENT
ON = USED
Select ON only if a closure safety sensor has been installed (between terminals 2-3)
Only select ON if there is an electric lock.
FULL SETUP: mandatory for the rst installation of the automation.
PARTIAL SETUP: to repeat leaf run learning if the mechanical limit stops are moved,
without modifying the functions previously set.
WARNING! Partial setup does not work on a new automation on rst installation.
In this case, if it the Partial option is selected, the buzzer of the electronic
control unit will report the fault emitting a continuous sound for 4 seconds.
