22

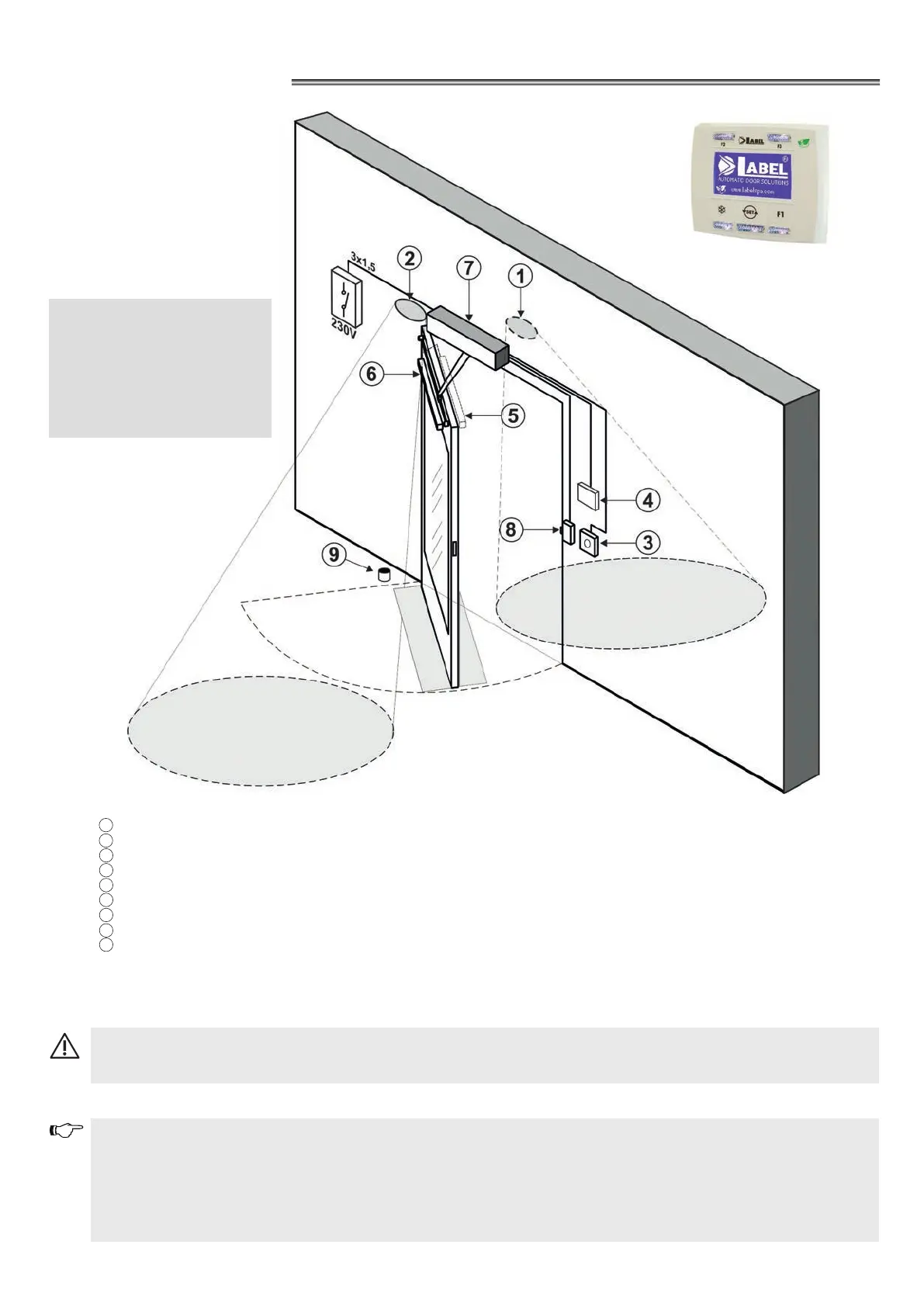

NOTE:
The grey part indicates the
monitoring zone of radars and
sensors.
The number of cables and
the relevant section in mm is
indicated for every device.
1
2
3
4
5
6
7
8
9
• The power supply line must be protected against short circuit and leakage to ground.
• On the power supply mains, provide an omnipolar switch/cut o device with contact opening distance of at least 3 mm
• Use self-extinguishing cables for electrical connections.
• Separate the mains power supply line from the extra-low voltage line control unit relative to control and safety accessories.
• On the plastic side caps of the automation Neptis Plus there are holes that must be broken open, through which the electric
cables must be inserted.
The installer must take care to secure the power supply cable inside the automation and, in particular, to limit the stripping
of the primary sheath of the cable, so that the surface and air distances do not reduce if a wire comes o the terminal.
• If the automation is installed on a leaf, make the electrical connections using a junction box with suitable commercially
available exible tubes and joints.
ELECTRONICS
11) ELECTRIC ARRANGEMENTS
EXTERNAL RADAR (4x0.5mm)
INTERNAL RADAR (4x0.5mm)
OPENING CONTROL (2X0.5MM)
PROGRAM SELECTOR (4x0.5mm)
CLOSURE SAFETY SENSOR (6x0.5mm)
OPENING SAFETY SENSOR (6x0.5mm)
AUTOMATION Neptis Plus (mains power 3x1mm)
ELECTRIC LOCK (2x1mm)
FLOOR STOP
